Liebert HPSE - Page 45

Installation
9--11
Liebert HPS---PD--- 272965---20.11.2009

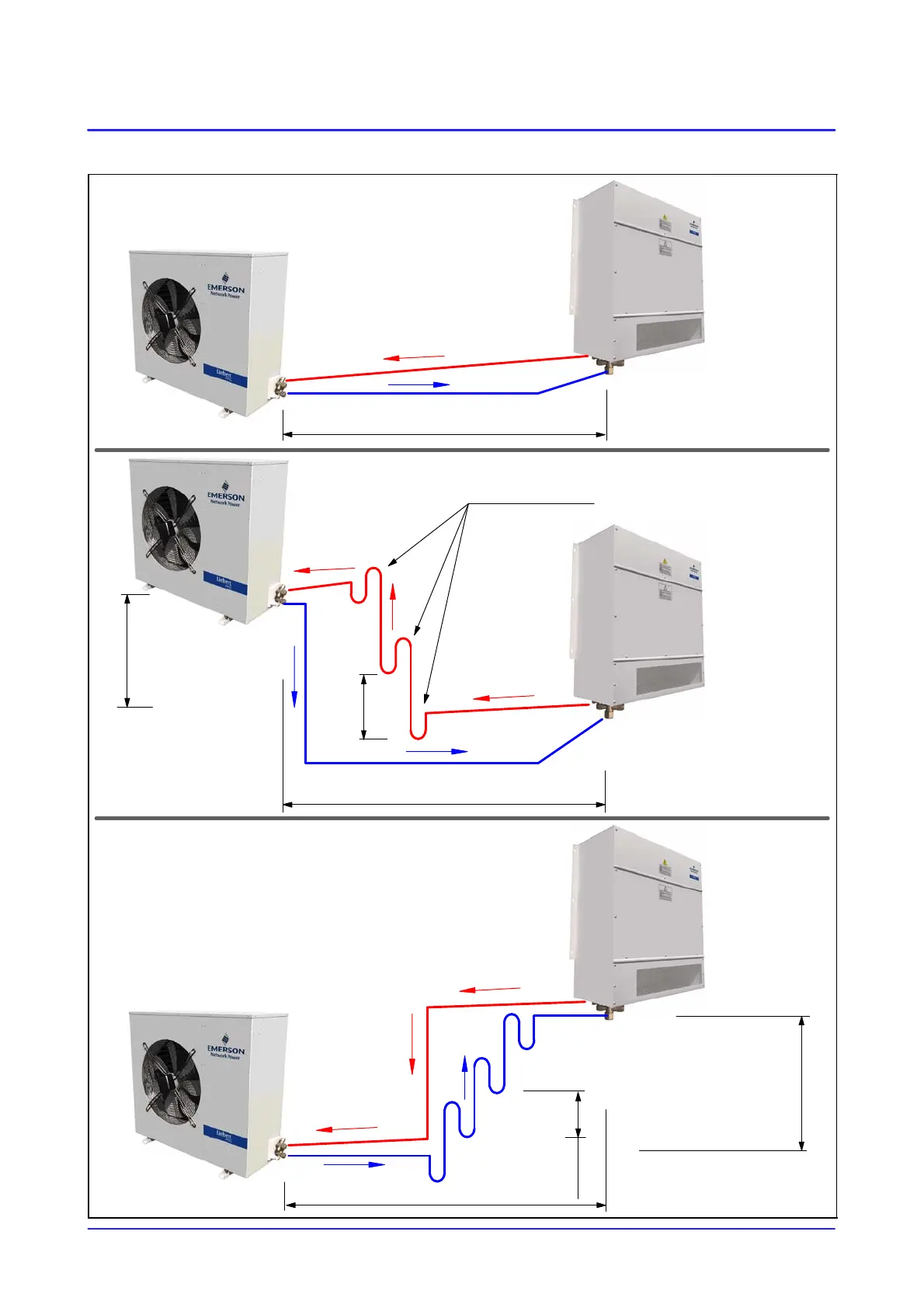

F i g . 2 5 --- Liebert HPSW (SE_W + HPSCxxL, Long piping) suggested refrigerant connections
Gas pipeline
(Sloping 1%)
50 m max. horizontal equivalent length
Gas pipeline
(Sloping 1%)
Gas pipeline
(Sloping 1%)
SE_W
(Internal Unit)
30 m max. horizontal equivalent length
Syphons
(obligatory)
HPSC
(External Unit)
Gas pipeline
(Sloping 1%)
HPSC
(External Unit)
Gas pipeline
(Sloping 1%)
SE_W
(Internal Unit)
5mmax.
vertical distance
between
two s yphons
5mmax.
vertical
distance between
two syphons
SE_W
(Internal Unit)
20 m max.
vertical distance
HPSC
(External Unit)
20 m max.
vertical distance
30 m max. horizontal equivalent length
Liquid/gas pipeline
Liquid/gas pipeline
Liquid/gas pipeline
