HOT WATER REHEAT
Form No.: DPN001040_REV4

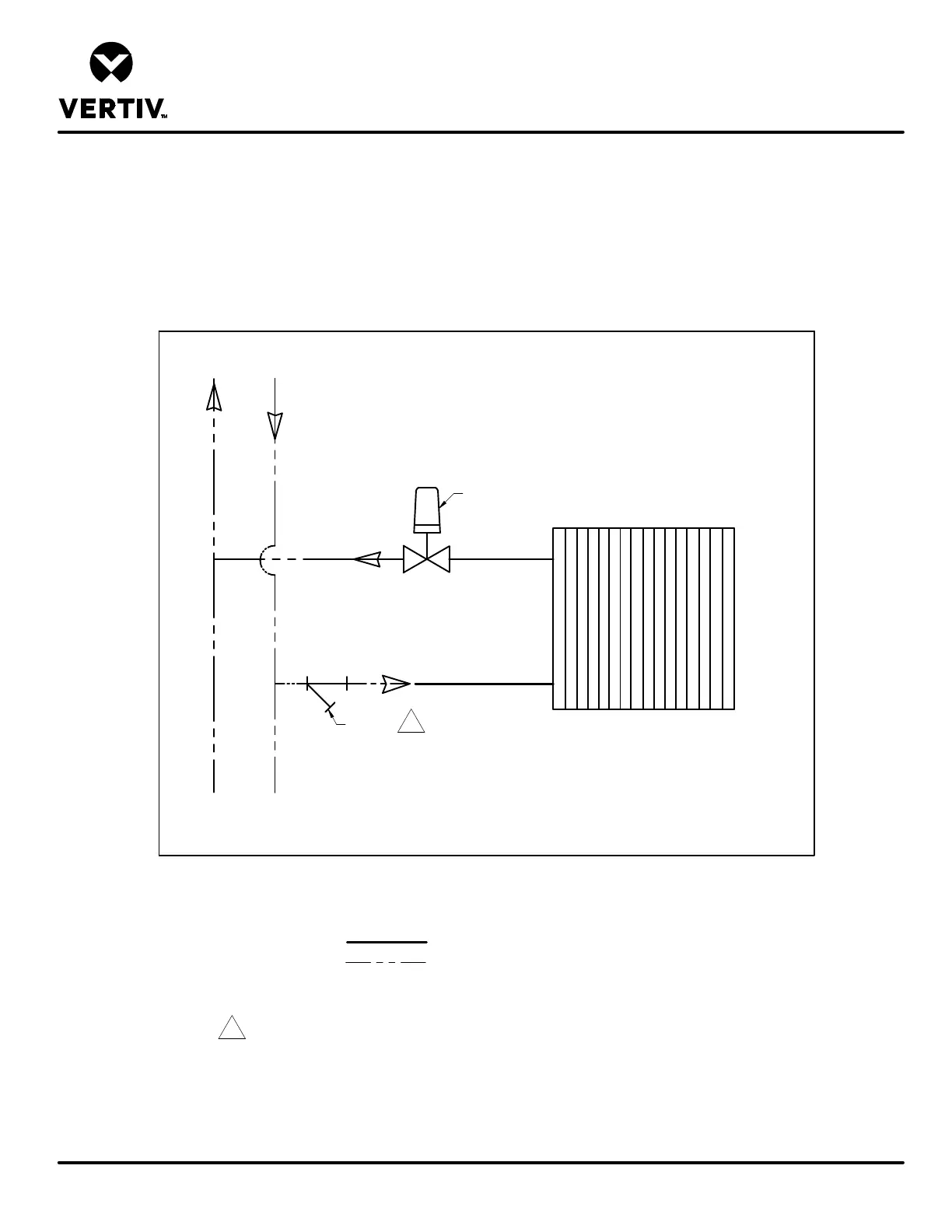

OPTIONAL PIPING SCHEMATIC
LIEBERT PCW
Optional Hot Water Reheat (2-way valve)
FACTORY PIPING
FIELD PIPING
Hot Water
Reheat Coil
Return
Supply
Return
Supply
Actuator
Y-Strainer
Note:
1. Components are not supplied by Liebert, but are required for proper circuit operation and maintenance.
