Liebert PX018 - Page 149

REV : 1
REV DATE : 12/16
DPN003697
Page :1 /1
UPFLOW DISCHARGE W/ DUCT COLLAR
Form No.: DPN001040_REV4
PLENUM DIMENSIONAL DATA
LIEBERT PDX & PCW
Notes:
1. Upflow unit shown with top discharge Plenum with duct collar.
2. All Plenums are shipped flat (non-assembled) and must be assembled on site.
3. Unit with front return shown. Upflow bottom return units are available with required rear
return floorstand with filter.

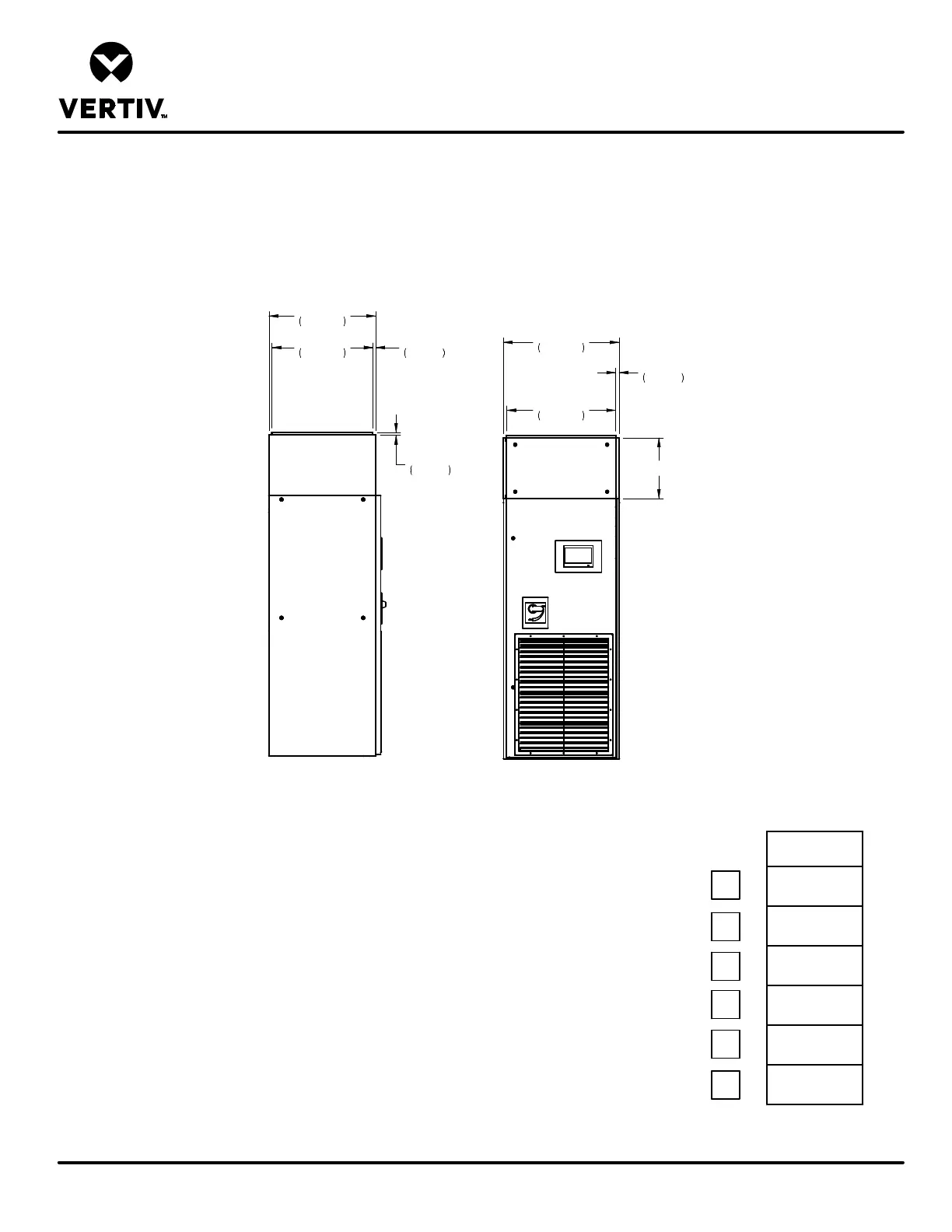

FRONT VIEW - UNIT WITH PLENUMSIDE VIEW - UNIT WITH PLENUM
7/8"
22mm
30"
763mm
13/16"
20mm
Typ.
1 1/16"
27mm
Typ.
32 3/8"
822mm
Height H
in (mm)
42" (1066)
48" (1219)
36" (914)
18" (457)
24" (609)
30" (762)
31 3/4"
807mm
H
34 1/2"
876mm
