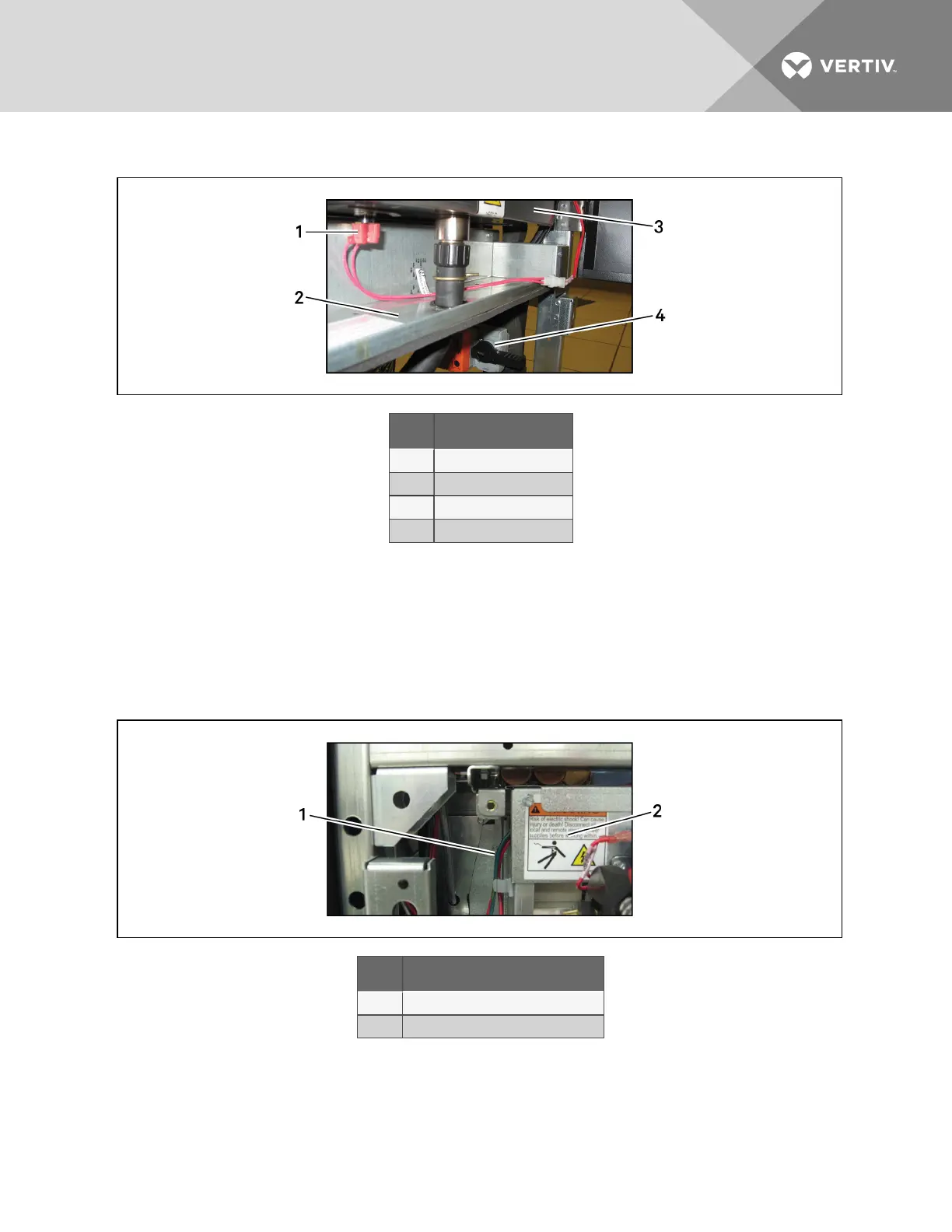

Figure 9.2 Remove humidifier high-limit wires
Item Description
1 Humidifier high-limit wires
2 Air-blocking panel
3 Humidifier pan
4 Actuator
5. Disconnect the actuator from the pipe beneath the right side of the humidifier (if present). See
Figure 9.2 above.
6. Remove the humidifier air block-off panel. See Figure 9.2 above.
7. Locate the humidifier assembly and remove the cover to the electrical compartment.
Disconnect the wires entering the humidifier electric box from the left side. See Figure 9.3
below.
Figure 9.3 Humidifier electric box location
Item Description
1 Humidifier wiring harness
2 Humidifier electric-compartment cover
