8 VeloCycle User Manual Lifepro

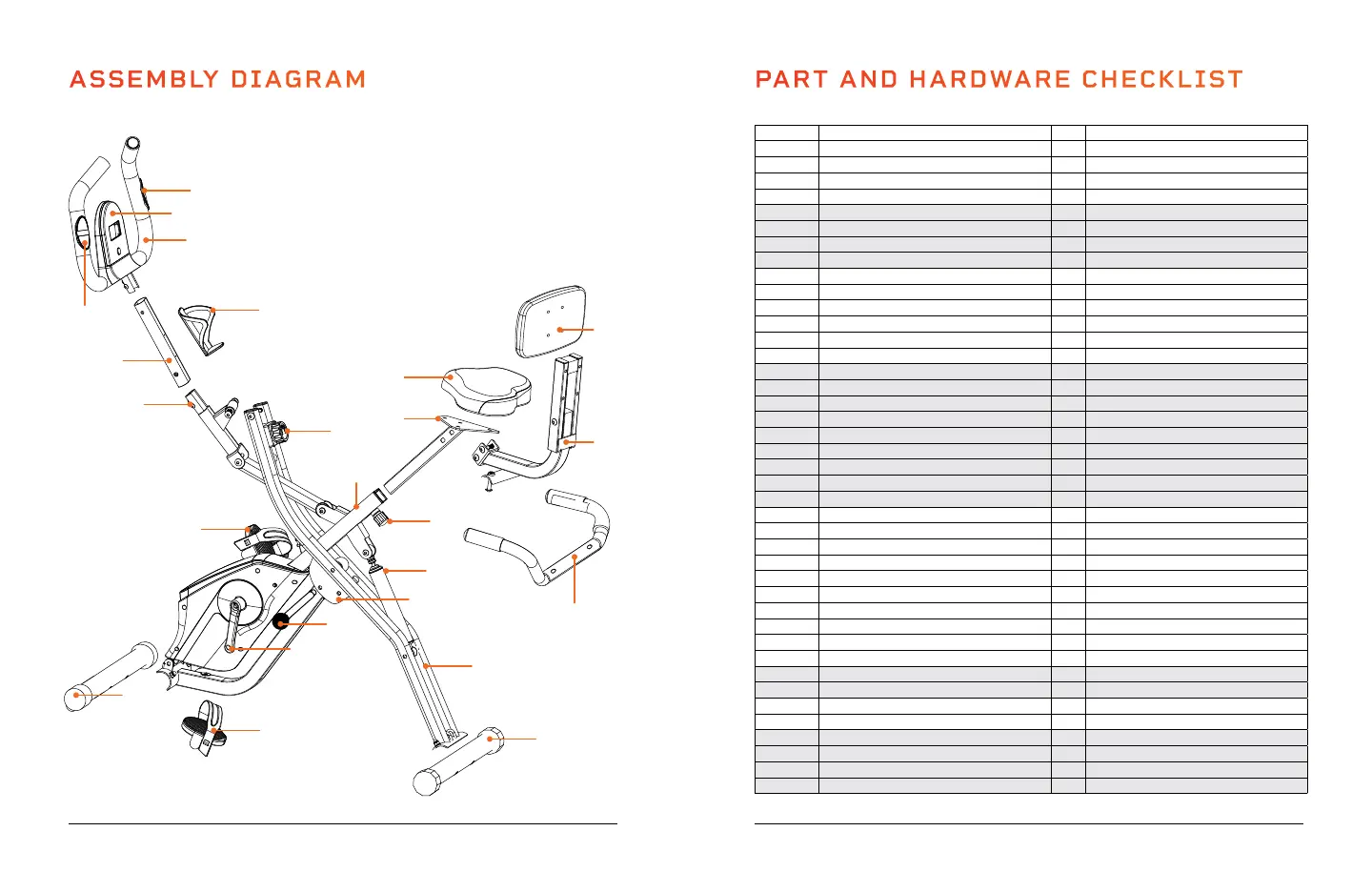

ASSEMBLY DIAGRAM PART AND HARDWARE CHECKLIST
Item No. Description Qty Note
1 Bike Frame 1
2 Pedal Tension Knob 1 Pre-installed on bike frame
3 Locking Pin 1 Located in the tool/accessory bag
4 Locking Pin Bracket 1 Part of the bike frame
5 Hydraulic Mechanism 1 Part of the bike frame
6 Front Stabilizer with Wheels 1
7 Rear Stabilizer 1
8 Curved Washers 6 Pre-fitted to front/rear stabilizers
9 Cap Nuts 4 Pre-fitted to front/rear stabilizers
10 Seat 1
11 Flat Washers 3 Pre-fitted to seat
12 Nuts 3 Pre-fitted to seat
13 Seat Post 1
14 Seat Post Insert 1 Part of the bike frame
15 Seat Adjustment Knob 1 Pre-installed on bike frame
16 Backrest 1
17 Seat and Backrest Frame 1
18 Backrest Bolts 4 Pre-fitted to seat/backrest frame
19 Backrest Flat Washers 4 Pre-fitted to seat/backrest frame
20 Rear Handlebar Bolts 2 Pre-fitted to seat/backrest frame
21 Square-Neck Seat Post Bolts 2 Pre-fitted to seat/backrest frame
22 Flat Washers 2 Pre-fitted to seat/backrest frame
23 Lock Nuts 2 Pre-fitted to seat/backrest frame
24 Rear Handlebars 1
25 Console Post 1 Pre-fitted with male-to-female cable
26 Console Post Bolts 8 Pre-fitted to console post
27 Flat Washers 8 Pre-fitted to console post
28 Console Post Insert 1 Part of the bike frame
29 Console 1 Pre-assembled to front handlebars
30 Front Handlebars 1
31 Pulse Sensors 2 Built into front handlebars
32 AA Batteries 2 Located in the tool/accessory bag
33 Female Console Cable 2
34 Male Console Cable 2
35 R/L Pedal Crank Arms (Right & Left) 2 Pre-installed on bike frame
36 R/L Pedals (Right & Left) 2 Labeled R and L
37 Water Bottle Holder 1
38 Water Bottle Holder Screws 2 Pre-fitted to side of bike frame
39 User Manual 1 Located in the tool/accessory bag
40 Multi-tool 1 Located in the tool/accessory bag
41 4mm Hex Key 1 Located in the tool/accessory bag
42 6mm Hex Key 1 Located in the tool/accessory bag
To Next Page
