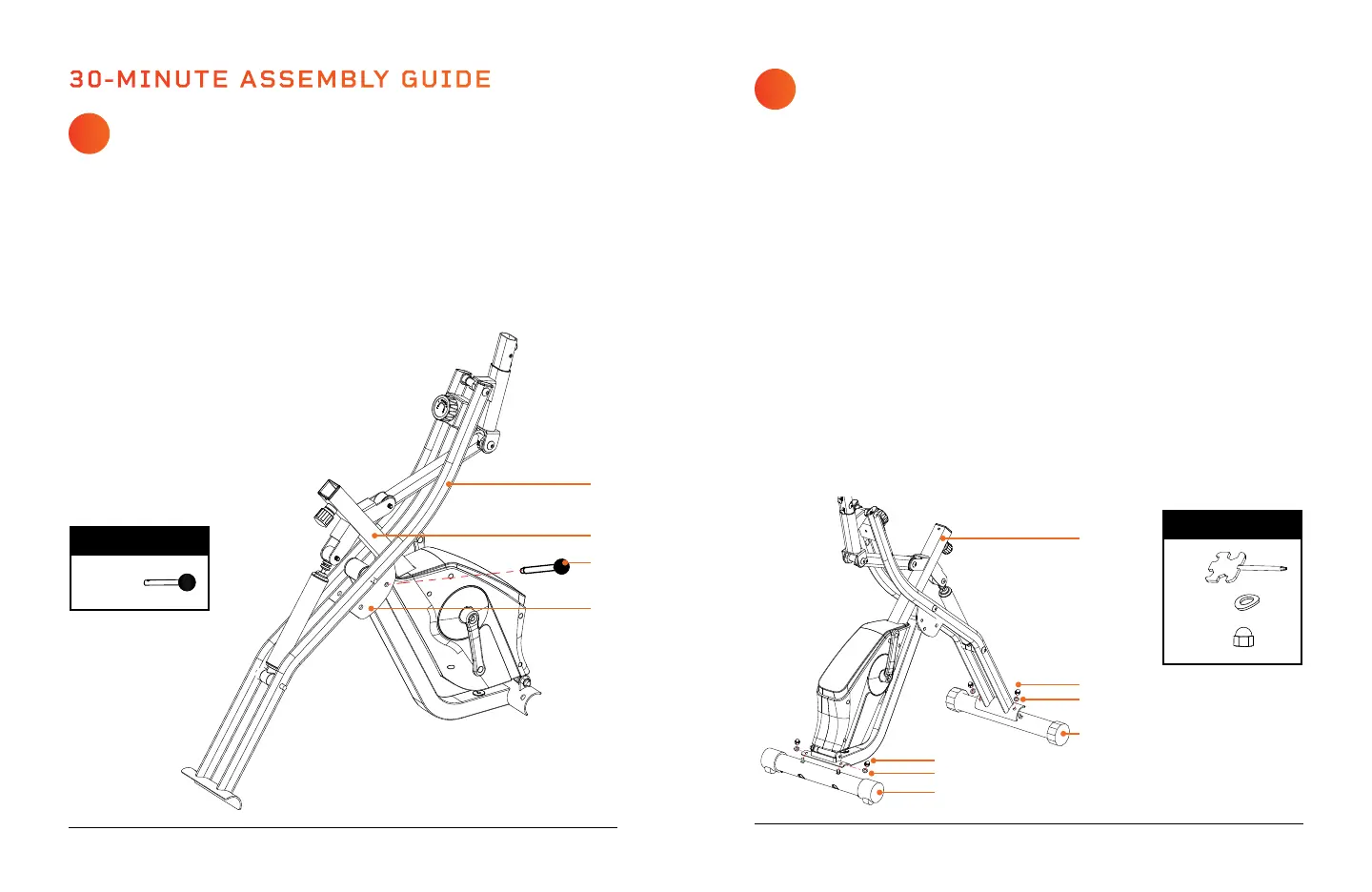

Endurance Training Collection 11
30-MINUTE ASSEMBLY GUIDE
10 VeloCycle User Manual Lifepro Endurance Training Collection 11
ATTACH THE FRONT AND
REAR STABILIZERS
CAUTION: Use caution when attaching the stabilizers as the bike frame
could accidentally fall over. You may find it easier to lay the bike frame on
its side for this step.
1. Locate the multi-tool (40) in the tool/accessory bag.
2. Remove the two curved washers (8) and two cap nuts (9) from the
front stabilizer (6).
3. Insert the two bolts integrated in the front stabilizer through the bolt
holes in the curved metal attachment point on the front of the bike. Make
sure the wheels on the front stabilizer are facing out.
4. Place a curved washer (8) onto each integrated bolt.
5. Screw a cap nut (9) onto the end of each bolt.
6. Repeat steps 3–5 to attach the rear stabilizer (7).
7. Use the multi-tool to fully tighten all four cap nuts.
8. Ensure the bike frame is stable when upright. You may need to rotate
the octagonal rubber end caps on either end of the rear stabilizer to
ensure complete stability.
INSERT THE LOCKING PIN
TO SECURE THE BIKE FRAME
CAUTION: Use caution when inserting the locking pin, as the bike frame
could accidentally fall over. You may find it easier to lay the bike frame on
its side for this step.
1. Locate the locking pin (3) in the tool/accessory bag.
2. Open the bike frame (1).
3. Align outer hole in the locking pin bracket (4) with the hole in the seat
post insert (14).
4. Insert the locking pin through the hole in the
bracket and through the seat post insert.
NOTE: The second hole in the locking pin
bracket is used to lock the bike in its
folded configuration for storage and
transportation. See
FOLDING THE
VELOCYCLE
on page 28 for
instructions.
1
2
9
9
1
8
8
6
7
Front of
Bike
(3) x1
TOOLS & HARDWARE
1
14
3
4
(9)
(40)
x4
x4
(8)
TOOLS & HARDWARE
