LifeSpan MARATHON - Connecting Console and Uprights

7

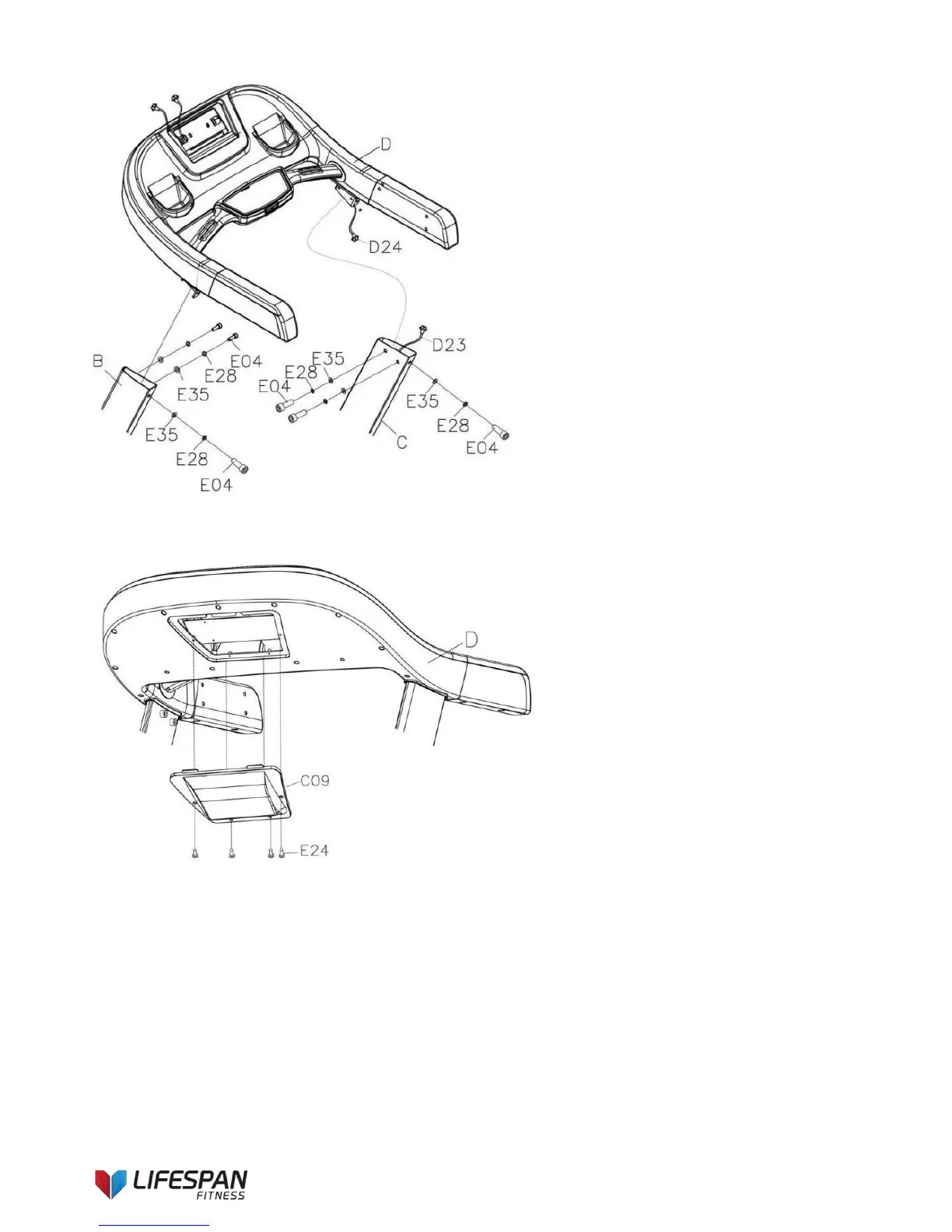

STEP 4:
1. Connect Lower Meter Cable
(D23) and Middle Meter Cable
(D24) to Console Assembly (D).
2. Attach Console Assembly (D) to
the Left and Right Uprights (B and
C) with:
- M10*30 Allen Bolt (E04)
- M10 Spring Washer(E28)
- M10 Flat Washer (E35)
- using Hex Key (B11).
1. Use Wrench (B12) provided to
remove the ST4.2*12 Tek Screw
(E24) and take off Bottom Console
Cover (C09).
