LifeSpan MARATHON - Console Attachment and Cover Installation

8

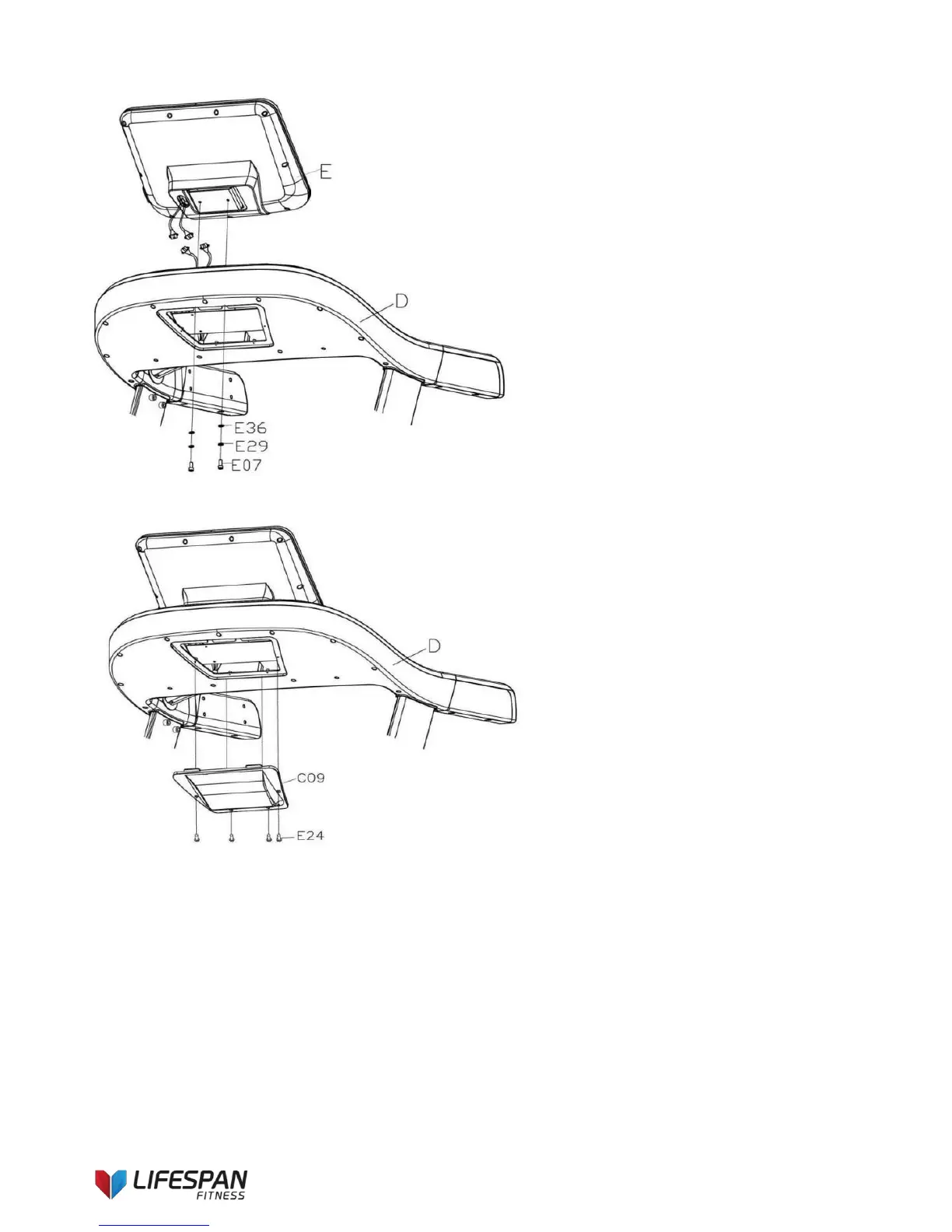

STEP 5:
STEP 6:
1. Connect the wires of Console(E).
2. Attach Console (E) to Console
Assembly (D) with M8*20 Allen Bolt
(E07), M8 Spring Washer (E29) and
M8 Flat Washer (E36)-using T
Shape Allen Wrench (B10).
1. Attach Bottom Console Cover (C09)
to Console Assembly (D) with
ST4.2*12 Tek Screw（E24) using
Wrench (B12).
