28

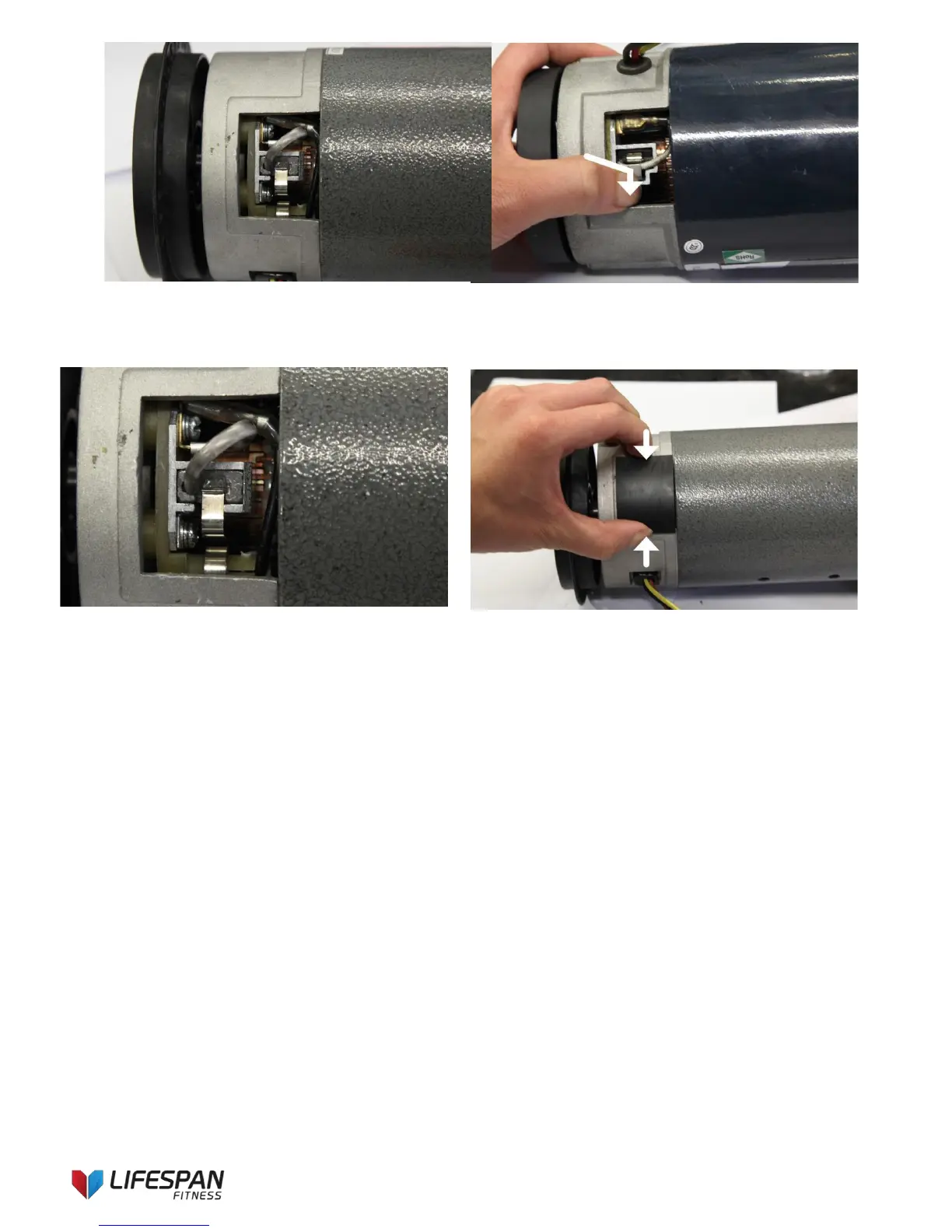

9a. Release the clip back into its position. 9b. If your motor uses a push clip, replace the push
clip by pushing it inwards and then down so that it
engages the catch.
10. Check that the motor brush is held firmly in place
by the clip, and that the lead is plugged securely onto
the terminal.
11. Replace the motor cover. Repeat steps 1-15 for
the second brush located on the opposing side of the
motor.
12. You have now successfully replaced the motor brushes. We also recommend that you remove any dirt and
dust from your treadmill motor fan using a vacuum cleaner before replacing the cover.
