Lifetime 90135 - Step 2.11: Install Front Horizontal Pivot

24
TOOLS AND HARDWARE REQUIRED
X SECTION 2 (CONTINUED)
2.11
AWS (x2)
ASB (x2)
CVZ (x2)
AWS
AWS
CQB
ASB
ASB
CVZ
CVZ
CQB
• Only fi nger-tighten this
hardware.
!

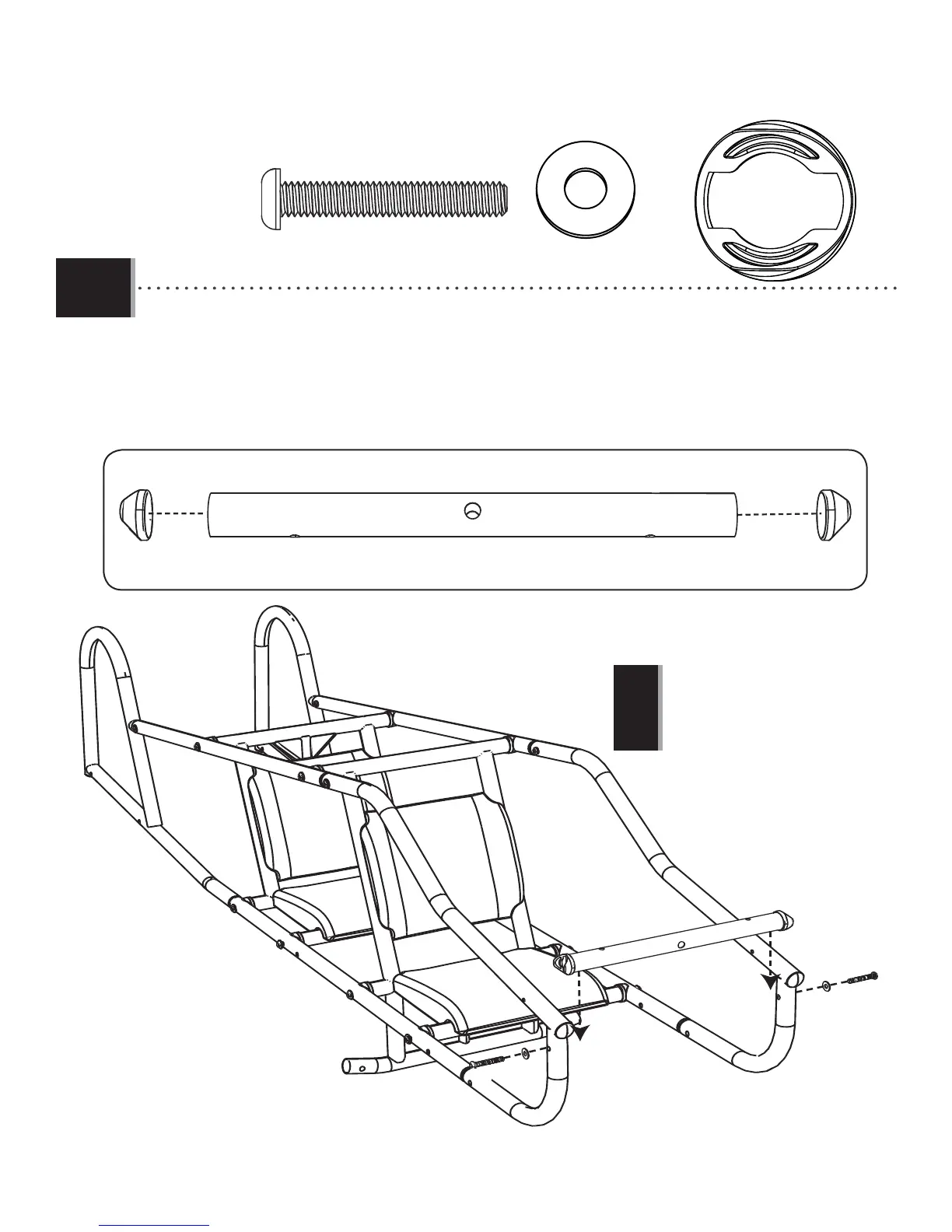

• Place a Coped Cap (AWS) at each end of the Front Horizontal Pivot (CQB). Position the Front Horizontal Pivot with the
dimpled hole facing outward at the front of the fuselage assembly as shown. Secure with the hardware shown.
