25
TOOLS AND HARDWARE REQUIRED
X SECTION 2 (CONTINUED)
2.12
ATI (x2)
ATH (x2)
ASE (x2)
CVZ (x4)
CQB
CPX
CPR
CPR
ATI
CVZ
ASE
CVZ
ATI
ATH
CVZ
ASE
CVZ ATH

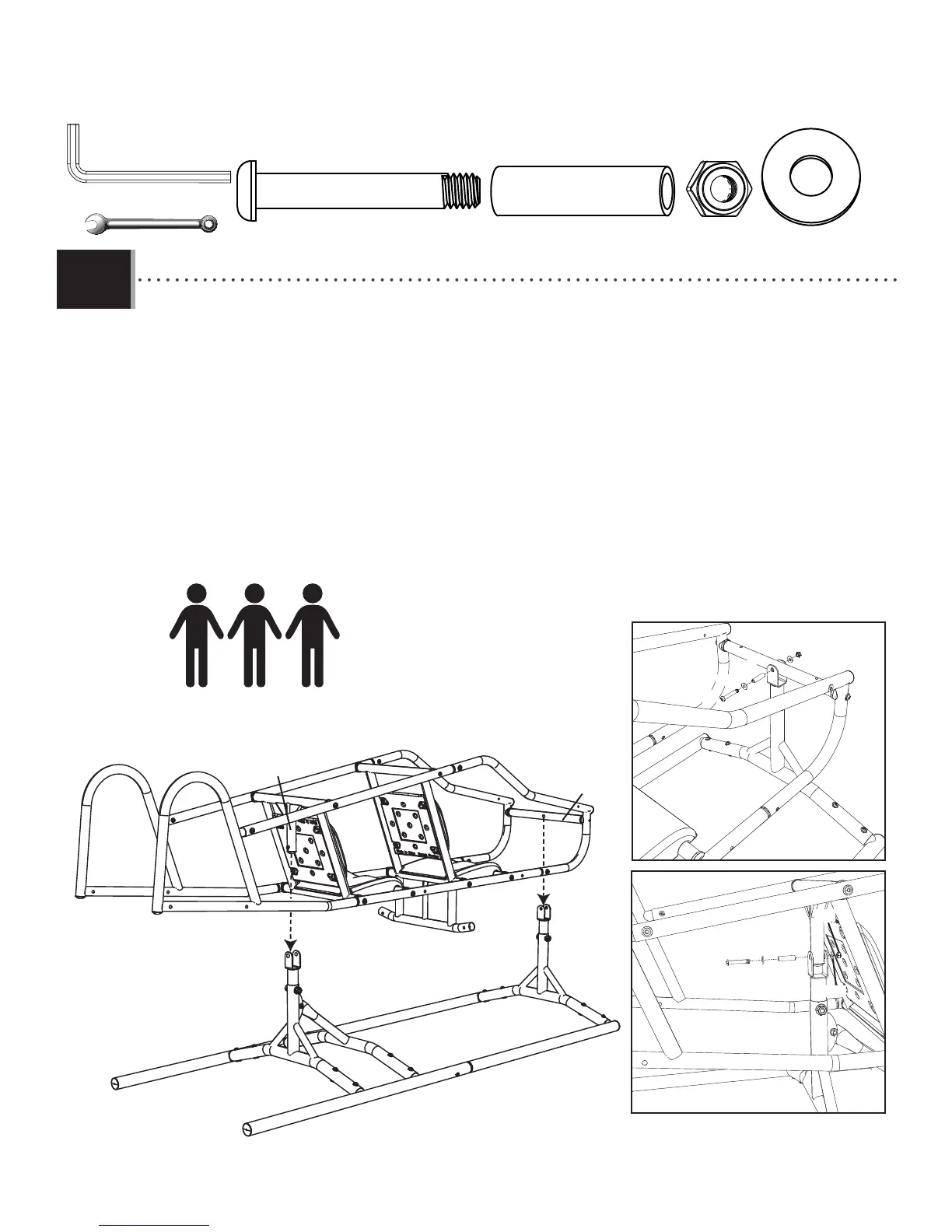

• Using two people, lift the Fuselage assembly and position it on the Skid and Cross Brace assembly. Line up the
holes in the Front Horizontal Pivot (CQB) and the Rear Seat Back Support (CPX) with the holes in the Adjustment Stands
(CPR). Have a third person place the Brass Bushing (ATH) in position fi rst. Secure with the hardware shown. Make
sure the bolts have gone through the Brass Bushing, and assemble the hardware as shown.
3/16 in/po (≈5 mm)
(2)
1/2 in/po (≈13 mm)
(1)
To Next Page
