5. Technical specifications
Example:
5.1 Raizer Lifting chair
Battery: LiFePo4, 12V, 5AH
Number of lifts on a full charge: 40 with a max. load.
Approx. 100 with an average load.
Duty Cycle: 1 min. / 5 min.
Charging time: Max. 6 hours (230V charger)
Charging of depleted battery: 10–15 min = 1 lift

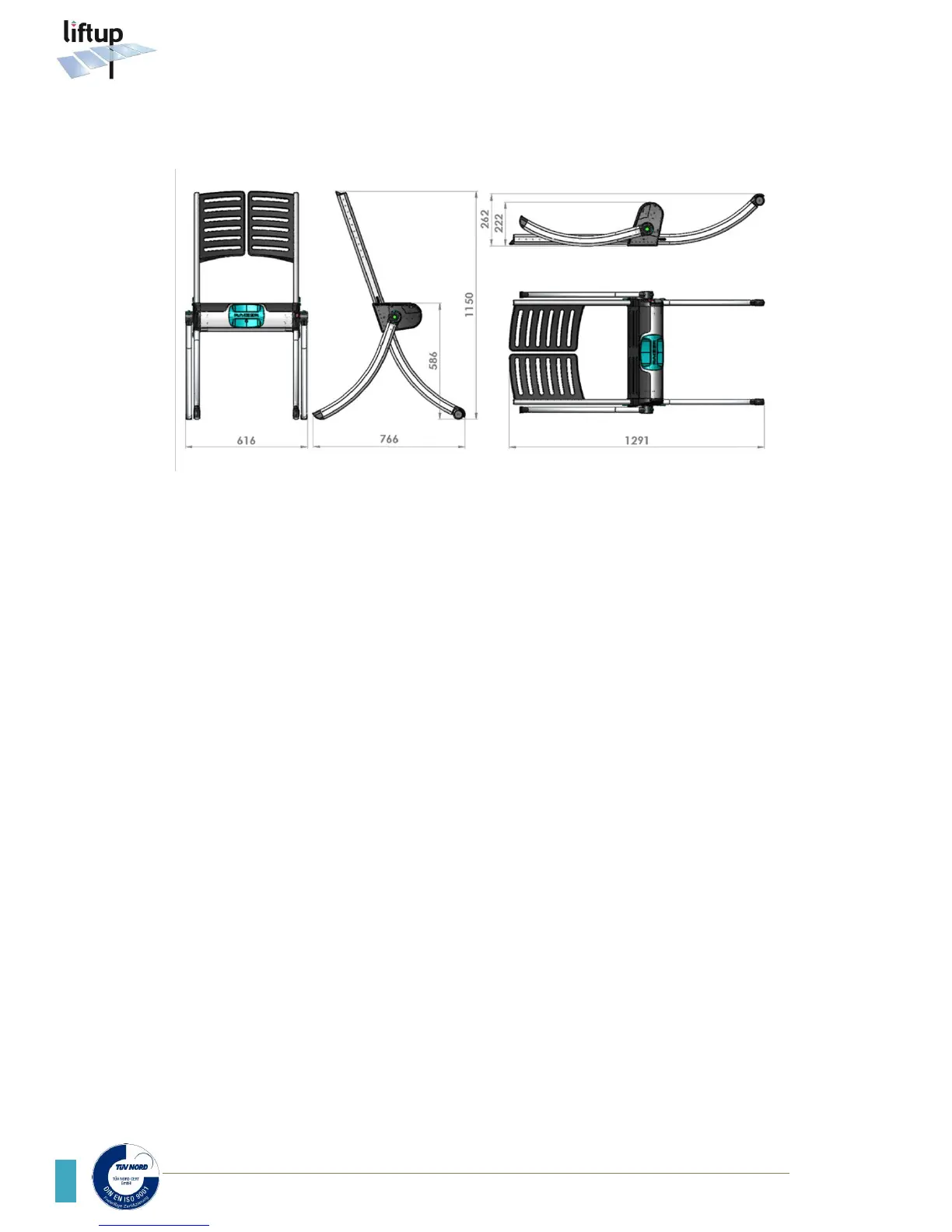

Dimensions (L x W x H): Standing 766 x 616 x 1150 mm / 30 x 24 x 45 in.
Lying 1291 x 616 x 262 mm / 51 x 24 x 10 in.
Weight: Seat 9kg. (19,8 lbs.) + legs and back rest 4kg. (8,8 lbs.) –
total 13kg. (28,6 lbs.)
Lifting capacity: Max. 150kg. (330.7 lbs)
Lifting time: 20-30 secs.
Noise level: < 70 dB A
Working temperature: +5ºC to +40ºC / 41ºF to 104ºF
Storage temperature: -25ºC to +70ºC / 13ºF to 158ºF
Water and dust: IP 42
Expected service life: > 5 years
Patented technology
Registered design
Right reserved to make technical modifications
