18 | Troubleshooting December 2008

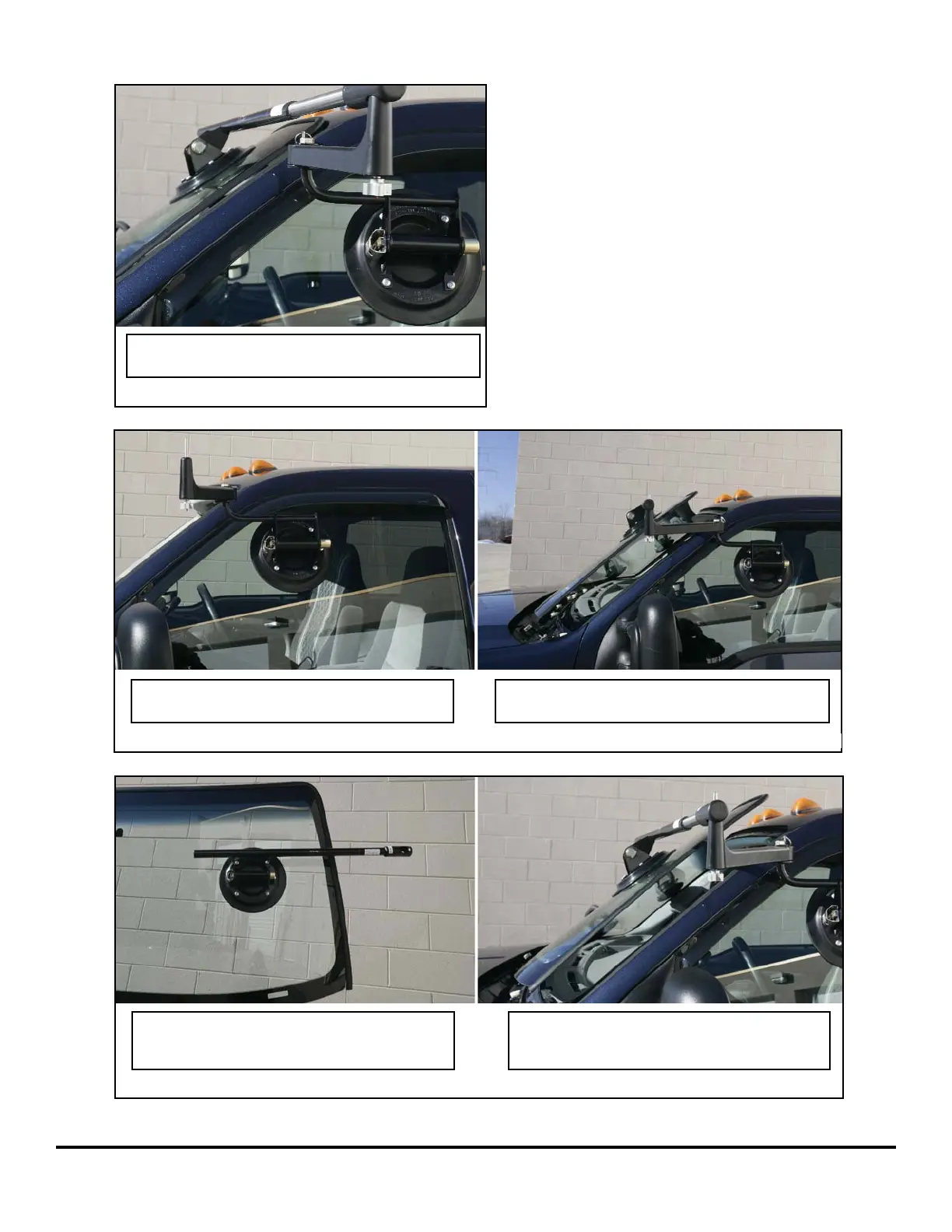

FIGURE 24 - IN-CORRECT SWING ARM POSITION
Notice: Swing Arm swung to far to rear of vehicle.
Result: Windshield to close to glue.
FIGURE 25 - BASE PIVOT CUP MOUNTED TO HIGH
Base Pivot Cup mounted to high.
Notice: Red Dot on Swing Arm above pillar.
Result: Windshield to high from glue.
FIGURE 26 - SLIDING ROD CUP MOUNTED TO LOW
Sliding Rod Cup mounted to low.
Notice: More then 7 inches from top of
windshild to centerline of rod.
Result: Windshield to high from glue.
