Troubleshooting
December 2008 Troubleshooting | 17
Problem Probable Cause Solution
1. Windshield is hovering to a. Base Pivot Cup mounted to low. a. Adjust Base Pivot Cup
close (low) to side of vehicle on door glass. See figure 22.
where lil BUDDY is mounted. b. Sliding Rod Cup mounted to high b. Adjust Sliding Rod Cup
on windshield. See figure 23.
c. Swing Arm swung to far back c. Adjust Swing Arm
See figure 24.
2. Windshield is hovering to far a. Base Pivot Cup mounted to high a. Adjust Base Pivot Cup
(high) from side of vehicle on door glass. See figure 25.
where lil BUDDY is mounted. b. Sliding Rod Cup mounted to low b. Adjust Sliding Rod Cup
on windshield. See figure 26.

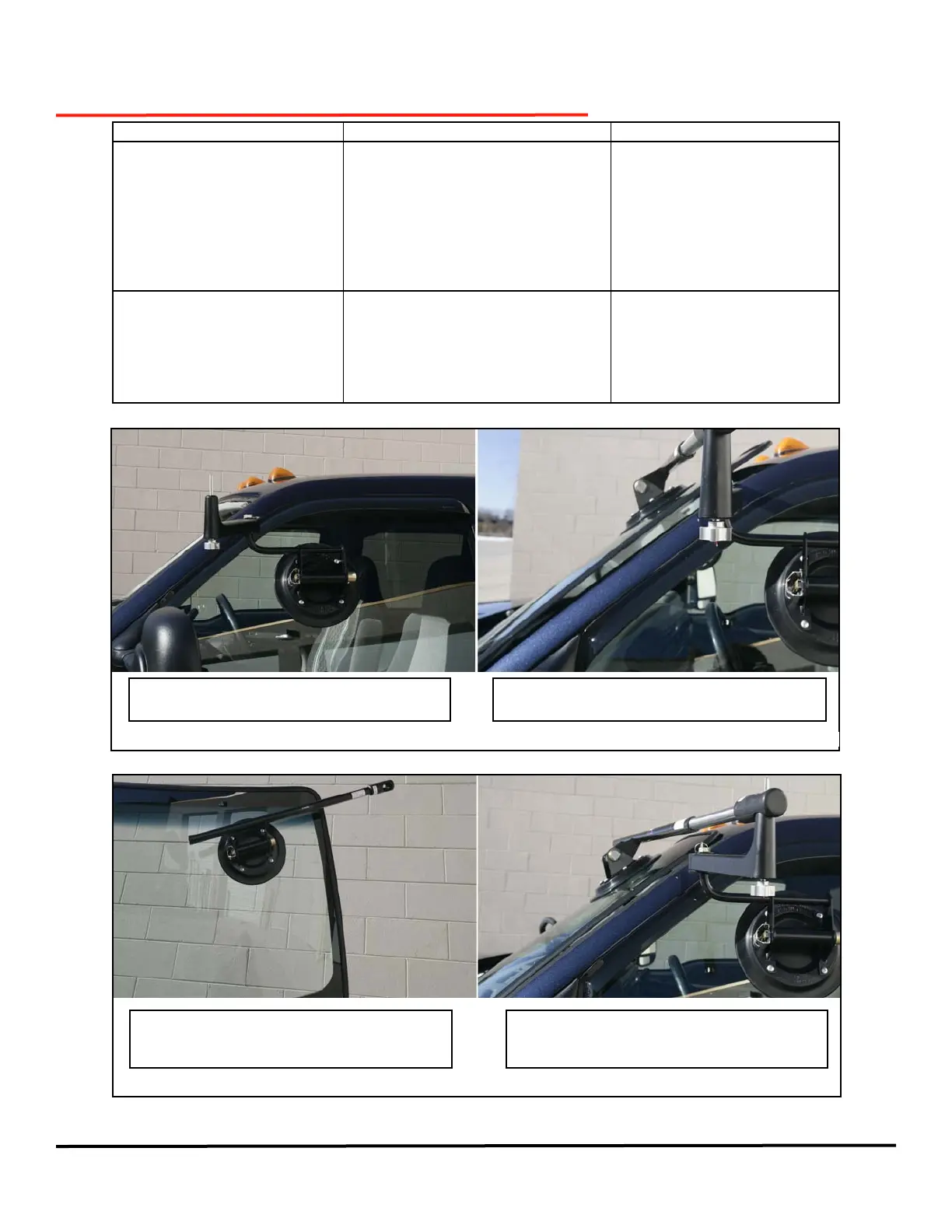

FIGURE 22 - BASE PIVOT CUP MOUNTED TO LOW
Base Pivot Cup mounted to low.
Notice: Red Dot on Swing Arm below pillar.
Result: Windshield to close to glue.
FIGURE 23 - SLIDING ROD CUP MOUNTED TO HIGH
Sliding Rod Cup mounted to high.
Notice: Less then 7 inches from top of
windshild to centerline of rod.
Result: Windshield to close to glue.
