lil-BUDDY PRO1 - Maintenance; Routine Maintenance (50 Sets;30 Days); Extended Maintenance (1000 Sets;1 Year)

Every 50 Sets or 30 Days
1. Extend and clean sliver Sliding Rod.
See figure 20.
2. Lubricate black Sliding Rod Housing.
Spray approximately 2 to 3 seconds into
housing to ensure full lubrication of
seals. Use CRC TrueTap Foamy Cutting
Fluid or specific lil Buddy lubricate. See
figure 20.
Every 1000 Set
s or 1 Year
1. Preform 30 days maintenace.
2. Lubricate Swing Arm needle bearings.
Check for worn bearings, replace as
needed. See figure 21.
Maintenace
16 | Maintenance December 2008
DO NOT touch extended (silver) portion
on the Sliding Rod. ALWAYS hold black
Sliding Rod Housing.
Be sure to clean up excess oil after
lubricating Sliding Rod.
Clean silver Sliding Rod
Lubricate inside wall of
black housing
Lubricate plastic
housing end
After lubication; slowly collapse silver
Sliding Rod allowing excess oil to escape
out the end of black Sliding Rod Housing.
BEWARE oil will spray out the black
Sliding Rod Housing if collapsed to fast.

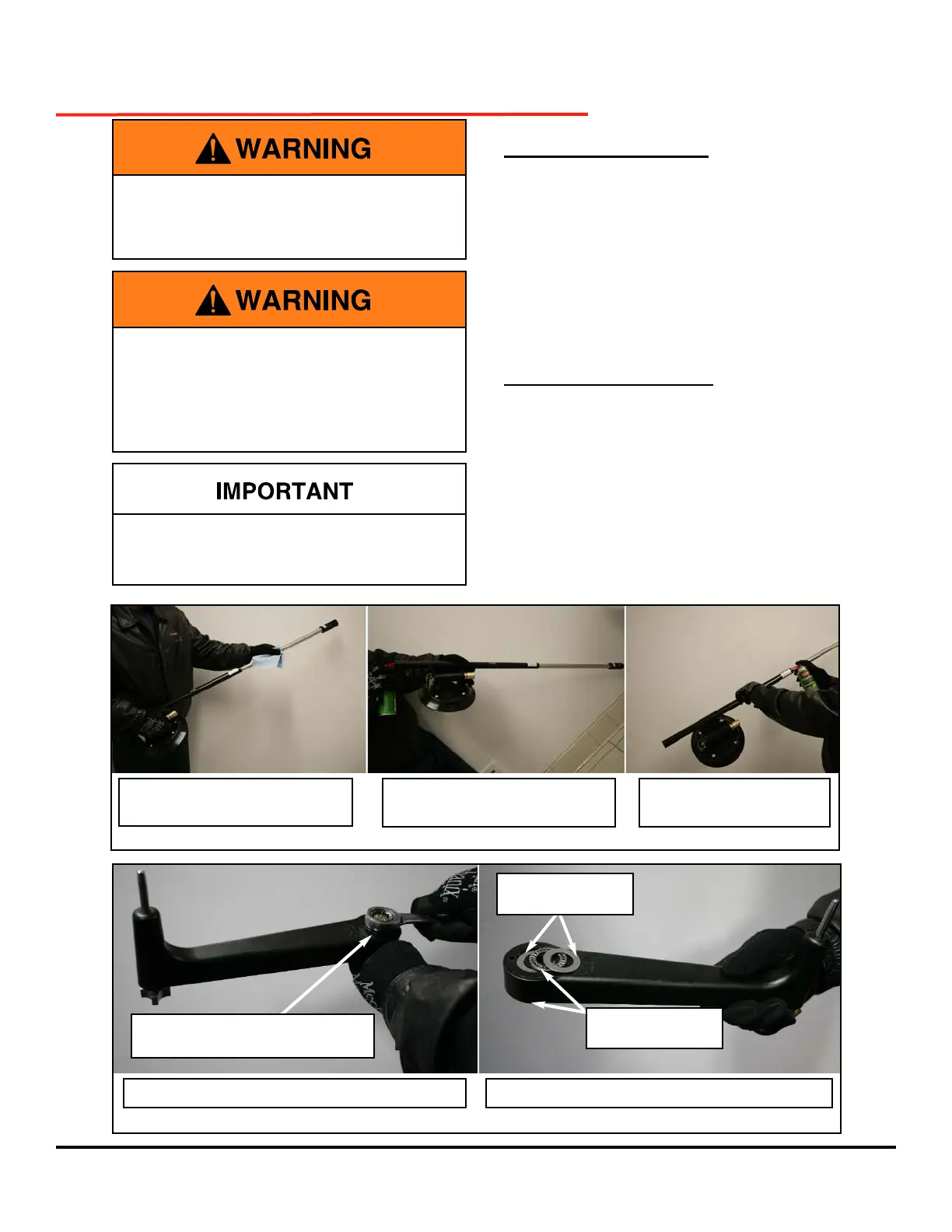

FIGURE 20 - SLIDING ROD LUBRICATION
Remove Swing Arm using 13/16 inch wrench Check and lubricate needle bearings
FIGURE 21 - SWING ARM NEEDLE BEARINGS
Wear Item -
Replace if worn
Needle bearing -
one per side
Use Blue Loctite on threads when
re-installing Swing Arm bolt.
