12. Take hold of the black Sliding Rod Housing and support the weight of the windshield.
Release the Swing Arm pin and pivot arm out of the way. See figure 18.
13. As you drop the Sliding Rod Housing, fit the windshield into its final postion by lining-up
the top corner and then placing the whole side into position in one operation.
14. Place the second retention strip or tape across the top of the vehicle and windshield.
15. Remove the Base Pivot Cup and Sliding
Rod Cup from the glass by pressing the
release levers. You could also use your
finger to break the seal between the cup
and glass. See figure 19.
16. Put the units immediately into the carry
case.
December 2008 Using The Lil Buddy | 15

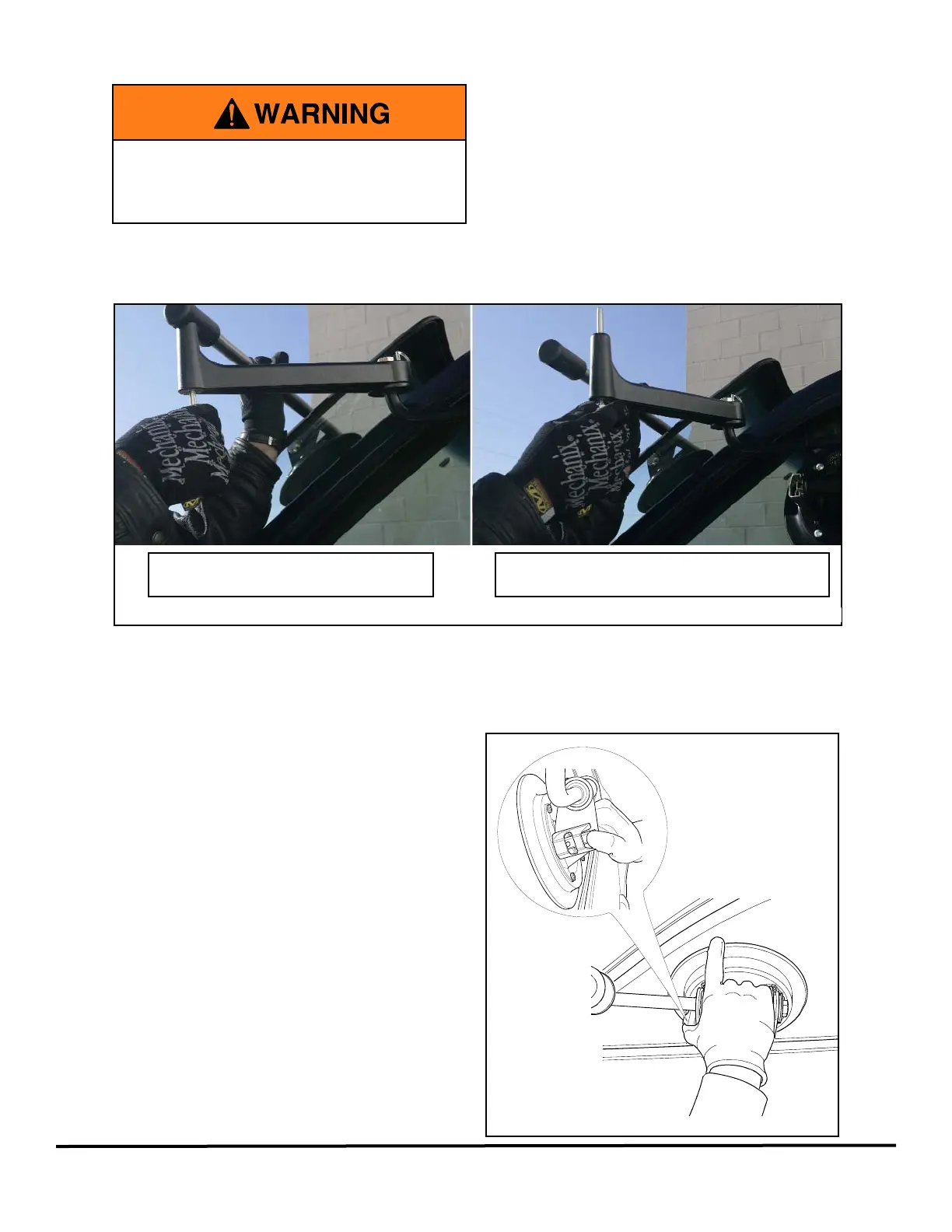

FIGURE 18 - SWING ARM PIN RELEASE
Turn clockwise on Swing Arm pin and
then pull down to release.
Once Swing Arm pin is released pivot Swing
Arm out of the way.
FIGURE 19 - RELEASE CUPS
DO NOT touch extended (silver) portion
on the Sliding Rod. ALWAYS hold black
Sliding Rod Housing.
