December 2008 Special Techniques | 21

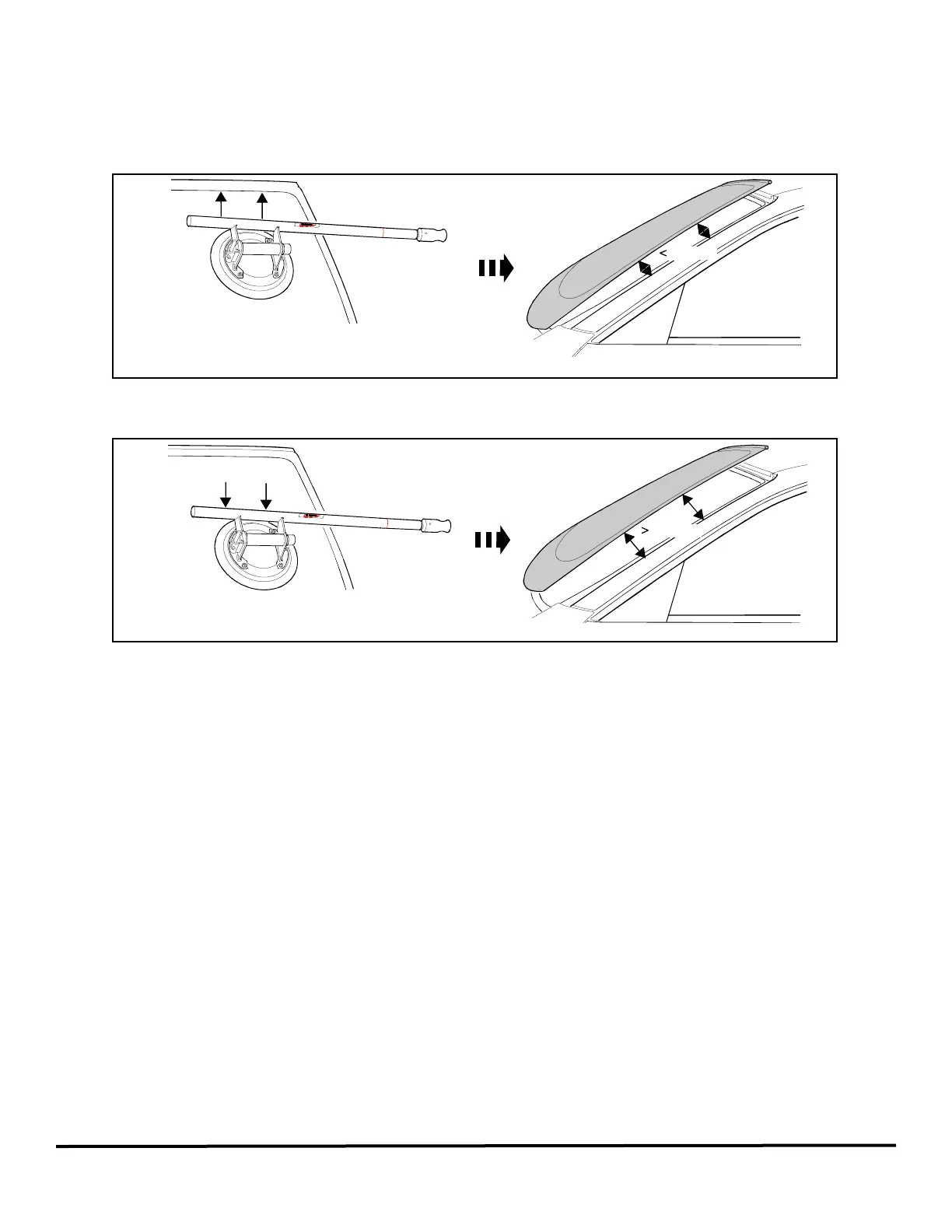

3. To reduce the gap between the windshield and the pillar, the Sliding Rod Cup needs to
be placed higher up the windshield. See figure 31.
4. To widen the gap between the windshield and the pillar, the Sliding Rod Cup needs to
be placed lower down the windshield. See figure 32.
When widening the gap, you have to be aware that it pulls the windshield across
towards the Base Pivot Cup, which could potentially alter the placement you have
already done on the other side of the vehicle. Essentially, the higher the windshield, the
greater the likelihood of it being pulled out of position on the other side.
