System description
LINAK
®
actuators, lifting columns and electronics have been developed for use in all places where a linear
movement is required.
LINAK products can for example be used for:
• Adjustment of beds
• Patient lifts within the care and hospital sector
• Adjustment of dentist chairs/gynaecological chairs
Connecting the system
Do not connect the battery until all actuators and hand control have been connected to the JUMBO system.
Start by connecting the hand control to the control box. The connection in the control box is marked with
“HB”.
Connect the different actuators to the different channels on the control box. Each channel is marked with a
number (e.g. “1”, “2”, “3”…….).
Check that all plugs are well connected and firmly pushed into the connector. Due to the fact that LINAK
®
control boxes are designed for a high IP degree, a firm force can be required.
Connect the battery.
The actuators can now be operated by pressing a button on the hand control.

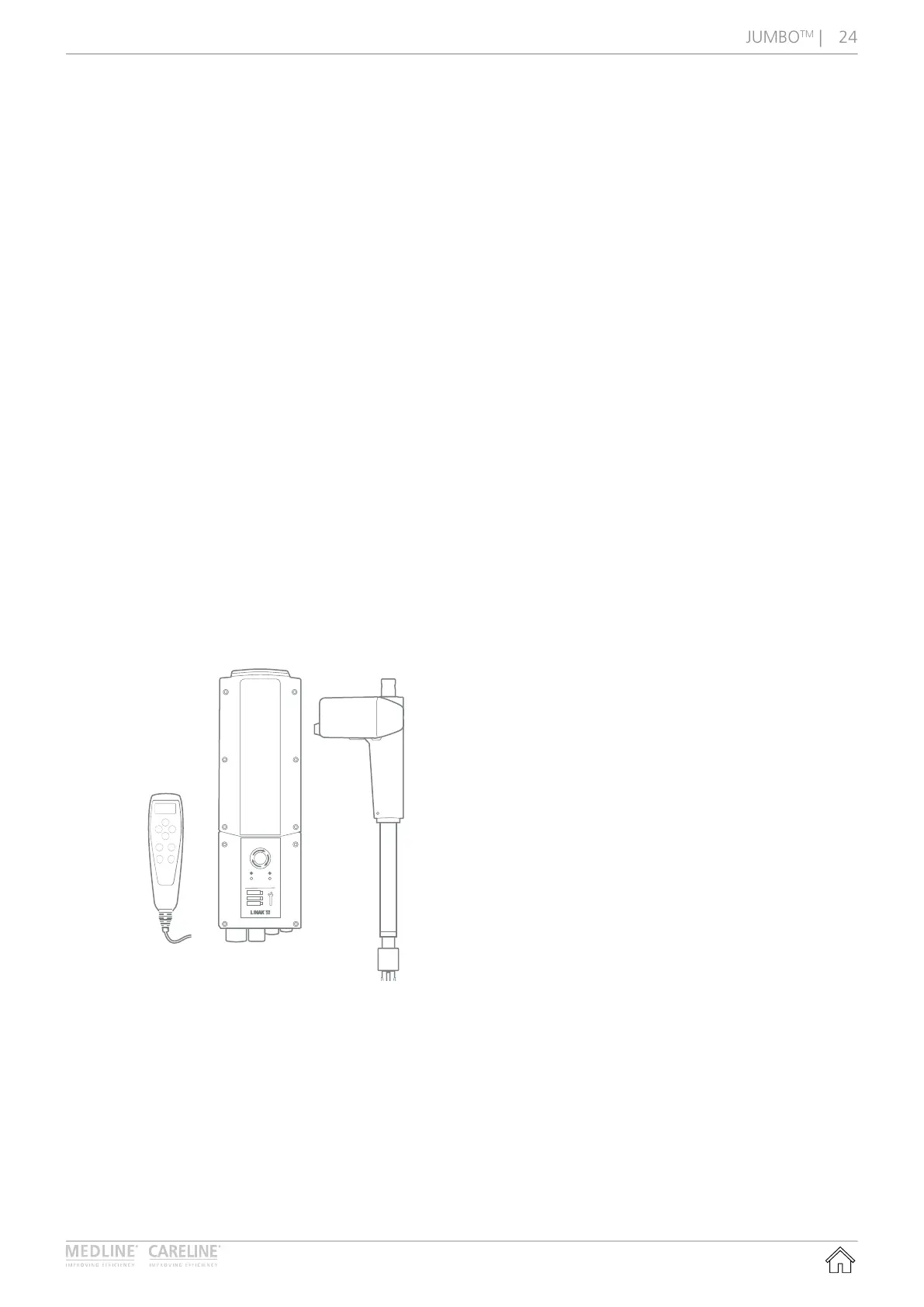

LINAK JUMBO system
LINAK hand control
LINAK control box and battery
LINAK actuator
To disconnect the system, press the emergency button.
Charging is only allowed in dry environment, and the appliance inlet must be thoroughly dried before
connecting to mains.
