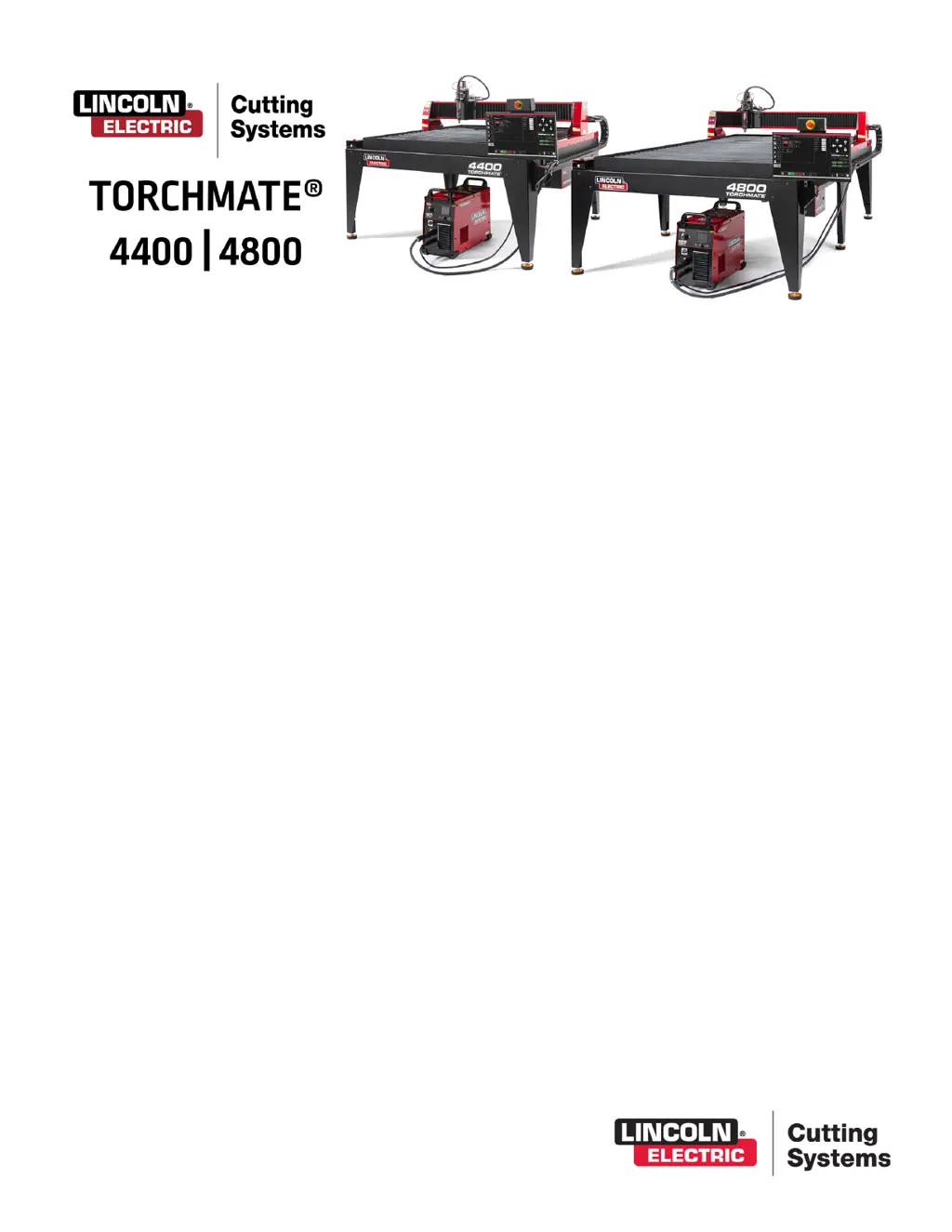

Lincoln Electric Torchmate 4400

Other manuals for Lincoln Electric Torchmate 4400

Site Prep Guide12 pages

Questions and Answers

T
Taylor WilliamsSep 4, 2025
Why does my Lincoln Electric Torchmate 4400 Cutter torch retract fully after Ohmic Sense?
- M
  Meghan RodriguezSep 4, 2025
  If the torch of your Lincoln Electric Cutter retracts fully to the top after sensing the material in an ohmic sense, and the Run Job button becomes available, clear the surface of the material of any corrosion that would hinder the ohmic sensing process. Verify the torch lead is not getting pulled tight on the way down to the surface of the material. Check for the torch pushing against the material deflecting it before stopping and retracting.
K
kellyhectorAug 25, 2025
What to do if Lincoln Electric Cutter torch pierces but doesn't move?
- B
  Brianna HoganAug 25, 2025
  If the torch of your Lincoln Electric Cutter pierces the material but doesn't move, check the g-code programmed feed rate and feedrate override percentage value for proper settings. Ensure the torch has enough material at the pierce point for a full power cutting arc. Verify the Aux Input Cable is plugged into the back of the Accumove Controller.
R
Ronald WilliamsAug 25, 2025
Why won't my Lincoln Electric Torchmate 4400 Cutter Accumove 2 controller turn on?
- S
  Samuel WilliamsAug 26, 2025
  If the Accumove 2 controller of your Lincoln Electric Cutter won’t turn on: * Disengage the E-STOP. * Verify the power brick is plugged in and shows a solid Blue LED light. * Ensure the power brick is fully plugged into the back of the Accumove 2 controller. * Listen for the fans spinning inside the Accumove 2 controller when the switch is turned ON.
J
johnsonmarkSep 12, 2025
How to fix the Lincoln Electric Control Systems torch that does not retract off the material when moving between cuts?
- H
  hurleyhannahSep 12, 2025
  To fix this issue with Lincoln Electric Control Systems, jog the Z axis to the top and click Reset Z, then click Run Job. Verify that the Retract Height value is set to the desired retract distance between cuts.
R
Raven RomeroSep 18, 2025
Why are cuts not coming out square or have degraded cut quality with my Lincoln Electric Control Systems?
- T
  Terrence JohnsonSep 18, 2025
  To fix this issue with Lincoln Electric Control Systems, check consumables in the Plasma torch and the settings from the cut chart. Ensure the torch is square to the material on the table.
J
John ChavezSep 7, 2025
How to fix motor not engaging when DATUM on Lincoln Electric Cutter?
- P
  Patricia GloverSep 7, 2025
  LOG ON as ADMIN on your Lincoln Electric Cutter. Reload your configuration. Press OK. DATUM machine. If the issue still persists, contact Customer Support.
A
Alejandro CummingsAug 31, 2025
Why is my Lincoln Electric Cutter torch colliding with the material?
- D
  davidwilsonAug 31, 2025
  If the torch of your Lincoln Electric Cutter collides with the material after 1” of cut because it's cutting too high, verify the Pierce and Cut height are at recommended book values. Make sure the height control mode is set to Auto and not Manual and that the Sample Voltage function is turned ON. Check for part tip-ups near the piercing points that may interfere with the torch sensing the materials height.
P
Peggy EverettSep 23, 2025
What does it mean if a Lincoln Electric Control Systems error occurs “Execution Error Overtravel Detected” when clicking the Run Job button?
- E
  Elizabeth McdonaldSep 23, 2025
  To resolve this issue with Lincoln Electric Control Systems, verify that all home and limit switches are not depressed (TMX table Only). If operating near the extents of the machine, re-set program zero and material further away from machine extents.
D
denniskellySep 14, 2025
Why does the Breakaway Indicator show as Yellow and Not Connected on my Lincoln Electric Control Systems?
- L
  Luke GrahamSep 14, 2025
  To address this issue with Lincoln Electric Control Systems, check that the breakaway capture leash and any debris on the magnet aren't preventing the torch from fully seating. Inspect contact points for corrosion; clean and oil them. Verify the Breakaway cable is connected at the breakaway and the back of the Accumove Controller; re-seat if needed.
T
Tracy DayAug 28, 2025
Why does the torch shield on my Lincoln Electric Torchmate 4400 hit the material?
- T
  tasha07Aug 28, 2025
  If the torch shield of your Lincoln Electric Cutter contacts the material during the initial cut movement, stopping the machine, check that the Cut height is set at the correct value. Ensure the AVHC Auto/Manual mode is set to Auto and that the Sample Voltage mode is set to ON. Also, check if the machine crossed into another previous cut or collided with another previous cut.

Summary

Safety Information

Electric Shock Hazards

Details on preventing electrical shock during operation and maintenance.

Arc Ray Hazards

Explains risks from plasma arc rays and necessary eye/skin protection.

Fumes and Gases Safety

Addresses hazards from cutting fumes and gases and ventilation requirements.

Fire and Explosion Prevention

Covers risks of fire and explosion from cutting operations and preventative measures.

Cylinder Safety

Provides instructions for safe handling and use of compressed gas cylinders.

Plasma Arc Injury Risks

Explains potential injuries from plasma arcs and pilot arcs.

Electric and Magnetic Field Dangers

Discusses potential health effects and precautions regarding EMF fields.

Site Preparation

Grounding Your Machine

Power, Air, and Water Requirements

FlexCut 80 Plasma Controls & Settings

FlexCut 125 Plasma Controls & Settings

Front Panel Controls Overview

Powering Up the Torchmate 4 x00

Job Group Functions

Select Job Function

Guides on how to open and select jobs within the VMD software.

Kerf Compensation Setting

Nesting Functionality

Plate Setup Procedures

View Screen Navigation

Process Setup Tab

Used for entering material details and updating cut parameters.

Cut Parameters Section

Details all parameters affecting torch position and cutting behavior.

Datum & Program Zero Group

Datum Operation

Powers the machine and sets the home position for cutting.

Run Job Operation

Starts the execution of a selected job file in VMD.

Jogging Controls

Continuous Jog Mode

Moves the torch head continuously while direction is pressed.

Incremental Jog Mode

Moves the torch head by specified distances using an increment slider.

Point Jog Mode

Allows precise movement to a target position based on selected reference points.

AVHC and Dashboard Features

AVHC Automatic Voltage Height Control

Manages torch height based on arc voltage for consistent cuts.

IHS Initial Height Sense

Detects material height using ohmic contact or other methods.

Reset Z Position

Dashboard Indicators and Tools

Running a Plasma Cutting Job

Establishing Machine Zero (Datum)

Powers the machine and sets the home position for cutting.

Opening a Job File

Selects and loads a specific job file for execution.

Setting Up Material and Amperage

Configures cut parameters based on material thickness and plasma settings.

Plate Setup and Origin

Positions the torch and sets the starting point (program zero) on the material.

Cut Quality Assessment

Line Speed Test Procedure

Nesting Irregular Parts

Adding a New Nested Job

Making and Completing Nests

Performing Your First Test Cut

Machine Maintenance Schedule

Daily Maintenance Tasks

Monthly Maintenance Tasks

Cut Quality: Bevel Analysis

Causes of Bad Cuts

Basic Troubleshooting Guide

Machine Faults

Solutions for common machine operational problems and errors.

Laser Faults

Software Faults

Addresses errors and issues encountered within the VMD software and controller.

Lincoln Electric Torchmate 4400 Specifications

General

Drive System	Rack and pinion
Technology	Plasma cutting
Cutting Capacity	Up to 1 inch (25.4 mm) on mild steel
Table Size	4' x 4'
Software	Torchmate CAD/CAM
Voltage	230V
Cutting Area	4' x 4' (1.22 m x 1.22 m)
Maximum Material Thickness	1 inch (25.4 mm)
