Lincoln B Series Quick Start Guide

Page Number - 5
Form 403240

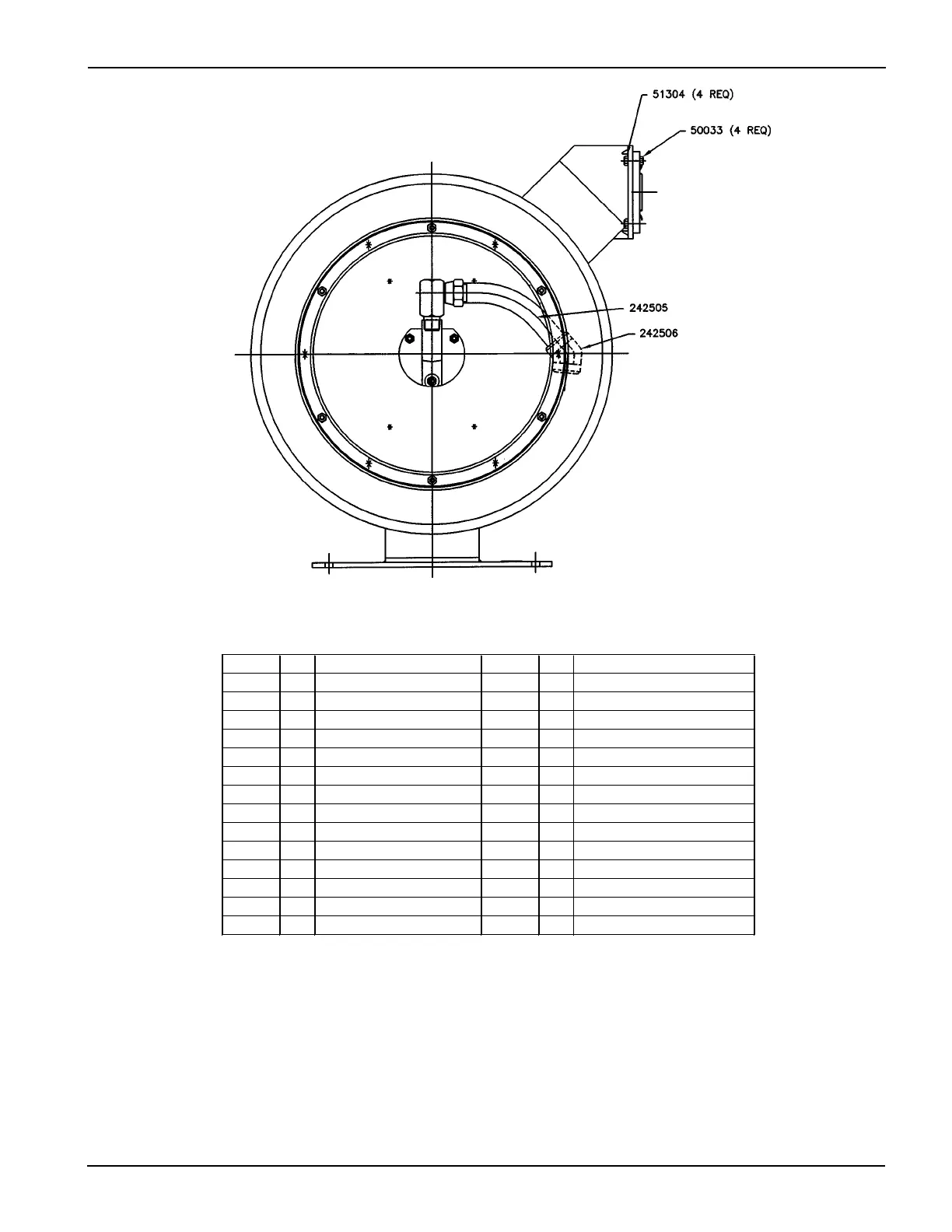

PART QTY DESCRIPTION PART QTY DESCRIPTION
48217 1 Washer 237672 1 Power spring assembly
48327 1 Washer 237673 1 V-ring seal
48385 4 Shim washer 237680 1 Sheave assembly
50014 4 Hex head screw 237683 1 Latch pawl
50033 4 Hex head screw 237692 1 Roller outlet assembly
51022 7 Hex nut 237695 1 Extension spring
51304 5 Locknut 237738 6 Carriage bolt
51412 10 Hex nut 237739 1 Carriage bolt
66316 1 Tru-arc 237690 1 Roller outlet arm assembl
y
68424 1 Tru-arc 242015 1 Swivel adapter
84679 1 Swivel assembly 242017 1 Axle
237656 1 Support assembly 242505 1 3/4" NPTF Nipple
237670 1 Arbor and ratchet casting 242506 1 3/4" NPTF Elbow (45)
237671 1 V-ring seal 272382 1 Hose clamp
SERVICE PARTS
REPAIR
Repair is limited to replacement of listed service parts.
Special procedures and tools are required. Contact Lincoln
Customer Service, One Lincoln Way, St. Louis, MO 63120-
1578, (314) 679-4200 for your nearest authorized service
center.
When ordering replacement parts, list:
Part number, description, model number and series letter.
©
©
© Indicates change
