CHAPTER 3A ENGINE 260/ 300 / 400 cc ATV SERVICE MANUAL09.0
CHAPTER 3 ENGINE PAGE. 3A- 70

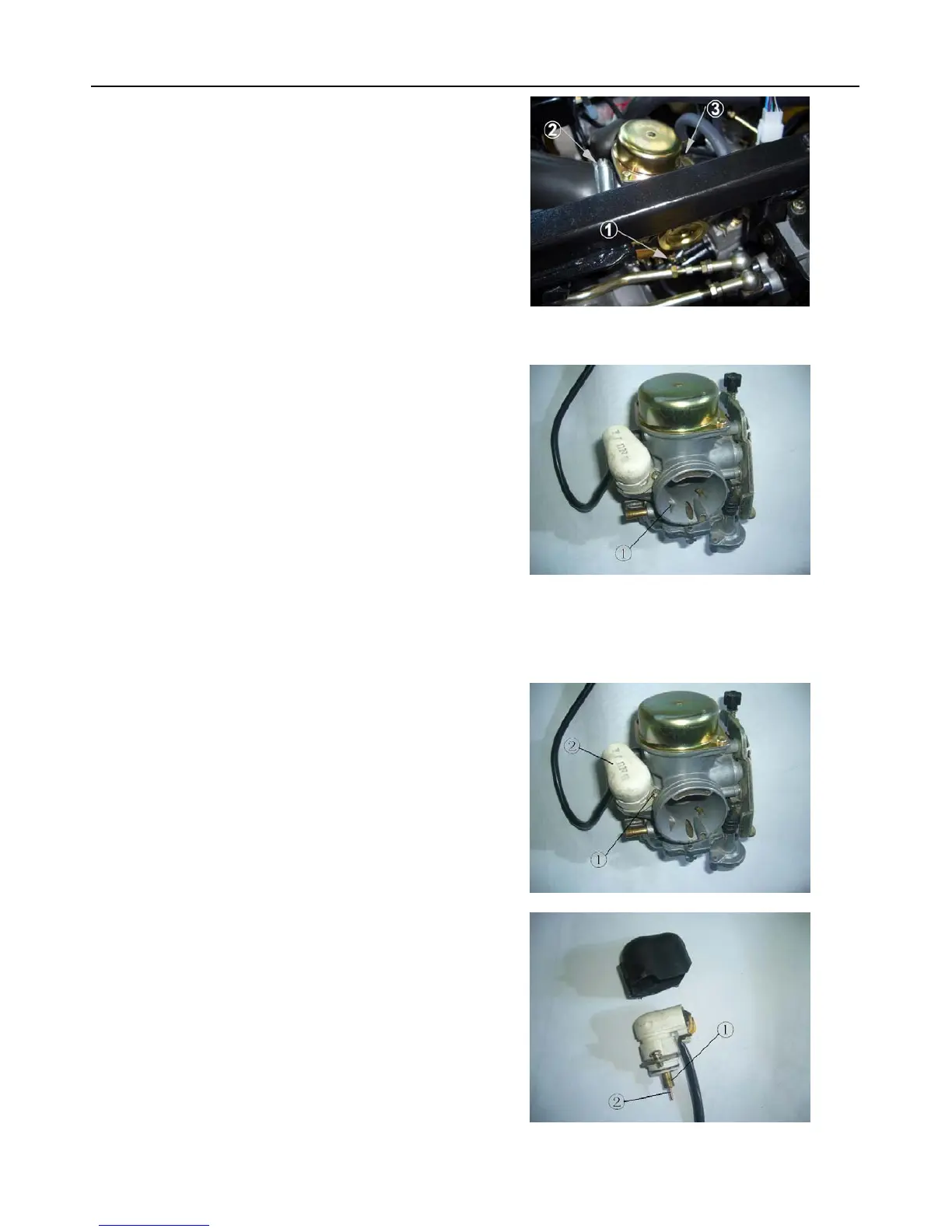

3. Remove:
zNut①
zThrottle cable
4.Lossen:
zBolt②
zBolt③
5. Remove:
zCarburetor assy
CARBURETOR DISASSEMBLY/
INSPECTION
6.Auto choke inspection
(Ambient temperature lower than 45℃)
zConnect auto choke unit leads to the 12V
battery for 5 minutes.
zConnect pipe to the starter①, and blow it with
the mouth etc.
Possible→Replace auto choke unit.
Impossible→Good condition.
z Remove auto choke unit leads to the 12V
battery for 30 minutes.
zConnect pipe to the starter①, and blow it with
the mouth etc.
Possible→Good condition.
Impossible→Replace auto choke unit.
7. Remove:
zBlot①
zAuto choke unit②
8. Auto choke unit inspection:
zPiston①
zJet needle②
Wear→Replace.
9.Install:
zAuto choke unit
To Next Page
