CHAPTER 3B ENGINE 50cc/80cc ATV SERVICE MANUAL09.0
CHAPTER 3B ENGINE PAGE 3B - 27 -

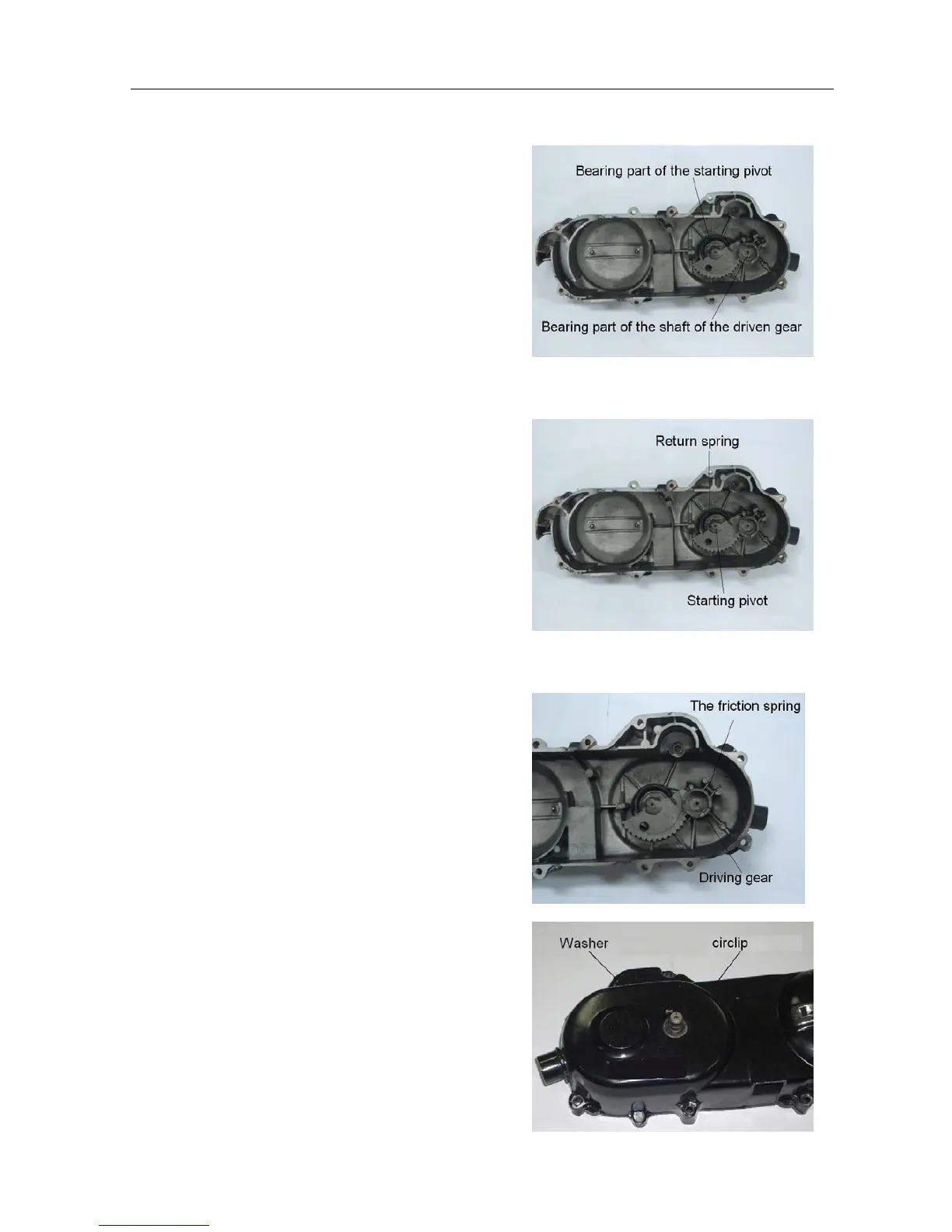

Check if there is any excessive wear on the bearing
part of the starting pivot and of the shaft of the
driven gear.
Replace any parts showing excessive or unusual
wear.
3.4.3 Installing the starting assembly
Install the starting pivot sleeve and the return spring
to the crankcase cover.
As shown in the picture on the right, assemble
driven gear and the friction spring.
Maintain the orientation as shown.
Install the starter pivot.
Install the washer, then the circlip.
