Reverse the disassembly
procedure for assembly.

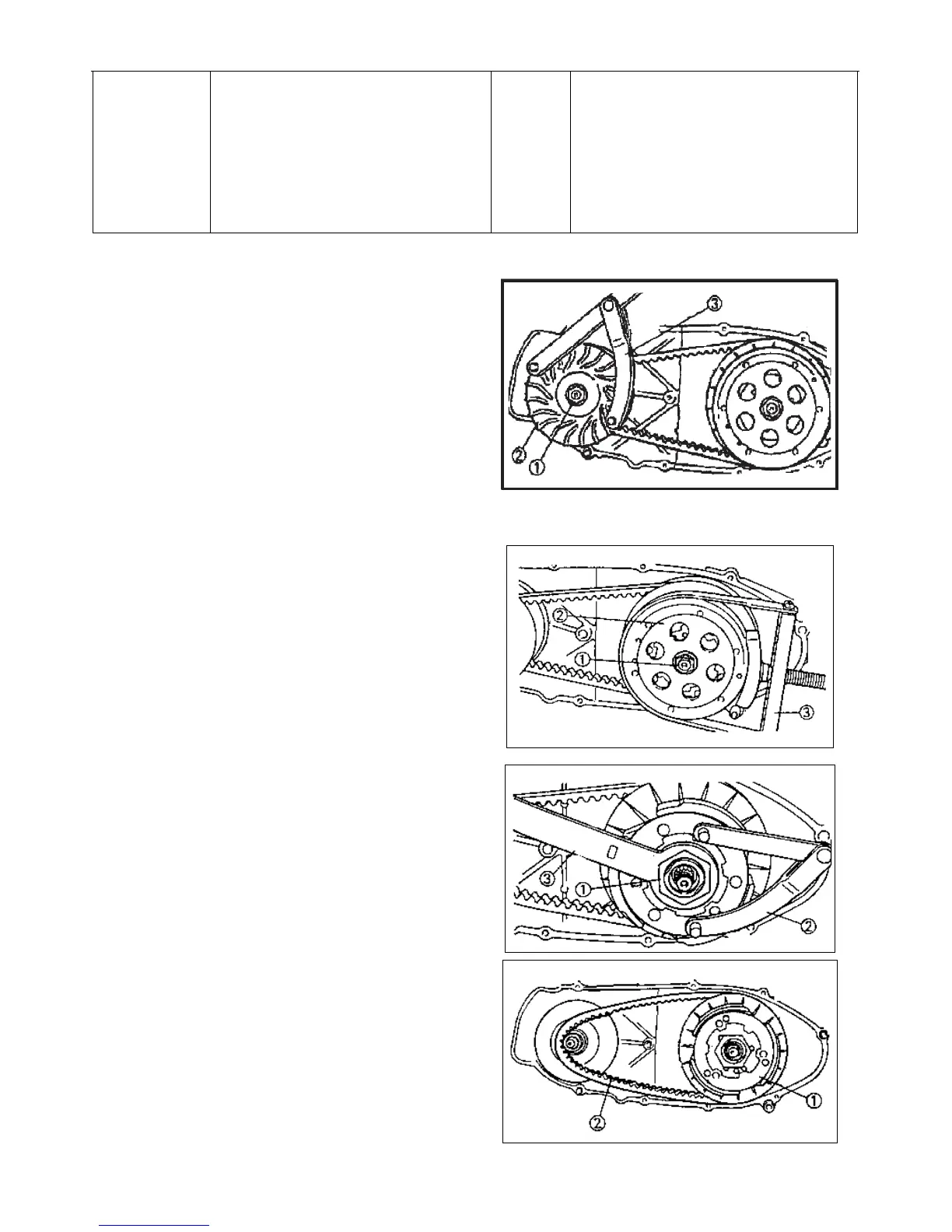

PRIMARY SHEAVE REMOVAL
1. Remove:
Nut (primary sheave)
Plate washer
Primary fixed sheave
NOTE:
Loosen the nut (primary fixed sheave) while
holding the primary fixed sheave with the rotor
holder.
SECONDARY SHEAVE AND V-BELT
REMOVAL
1. Remove:
Nut  (secondary sheave)
Clutch housing 
NOTE:
Loosen the nut (secondary sheave) while
holding the clutch housing with the sheave
holder.
2. Remove:
Nut  (clutch carrier)
CAUTION:
Do not remove the nut (clutch carrier) yet.
NOTE:
Loosen the nut (clutch carrier) one turn using
the locknut wrench  while holding the clutch
carrier with the rotor holder.
3. Remove:
Clutch assembly 
V-belt 
NOTE:
Remove the V-belt from the primary sheave side
with clutch assembly.
