Transmitter
Receiver
Cat 5e/6 or above
S/PDIF
IN
S/PDIF
OUT
AV Receiver
Display
Receiver Remote
IR Receiver
IR emitter

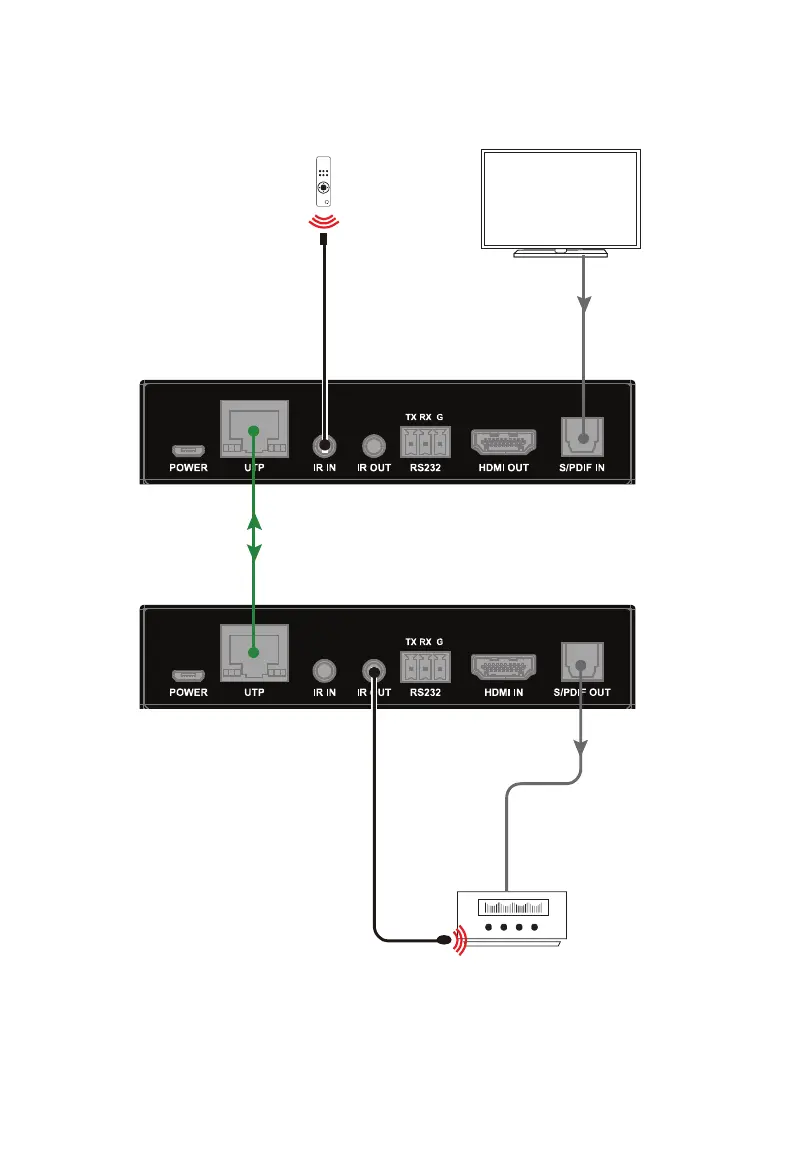

Figure 2 S/PDIF Channel
