No� Name Description
1
Power LED
(Red)
On: The receiver is powered on.
Off: The receiver is powered off.
2
Status LED
(Blue)
Blinking: The receiver is working properly.
Off: The receiver is not working properly.
3
HDCP LED
(Blue)
On: HDMI signal is HDCP protected.
Blinking: HDMI signal is not HDCP protected.
Off: No HDMI signal pass through.
4
Link LED
(Green)
On: The link between transmitter and receiver is normal.
Blinking: The link between transmitter and receiver is
abnormal.
Off: No link.
1 2 3 4

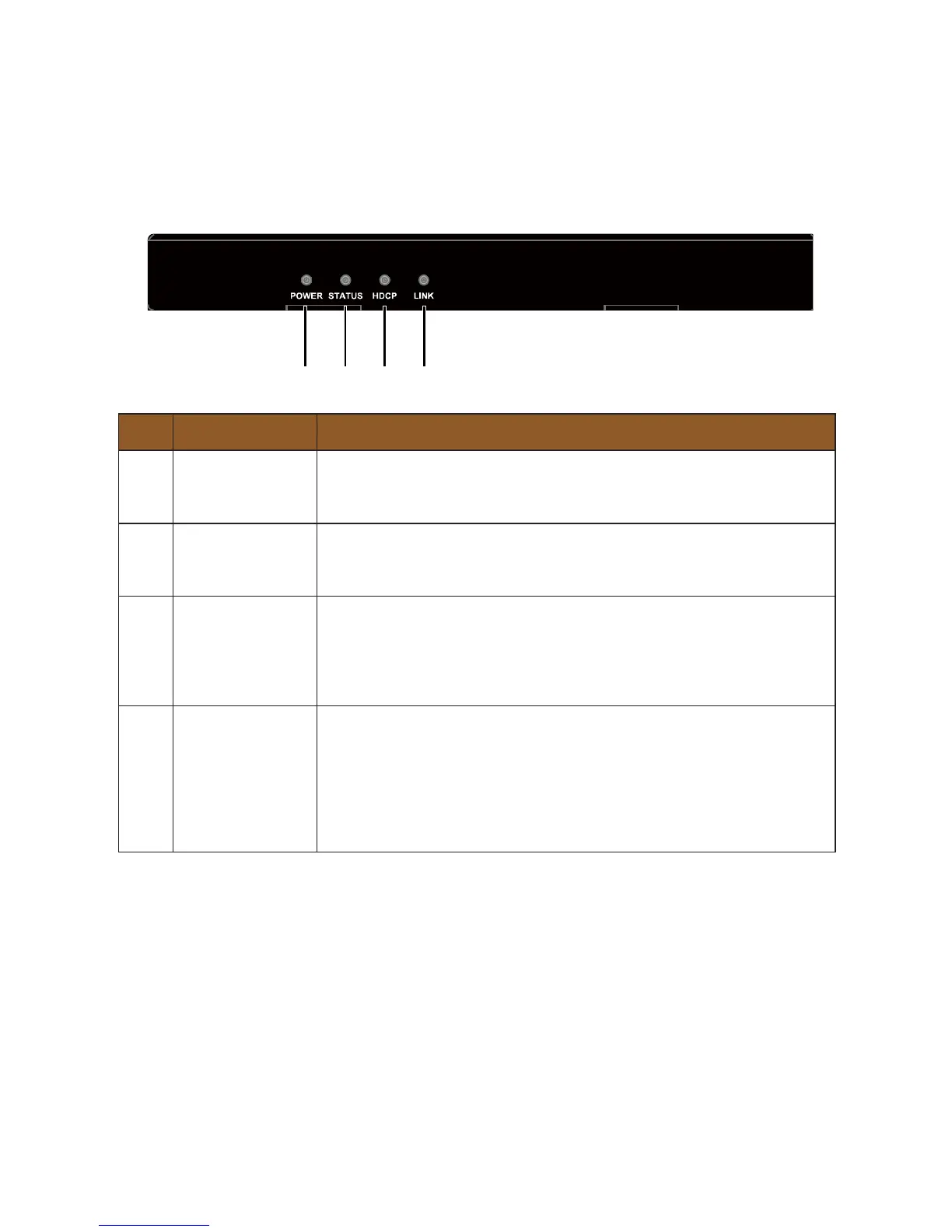

Front Panel
Receiver
