Link EXT40-4KUHD User Manual

16

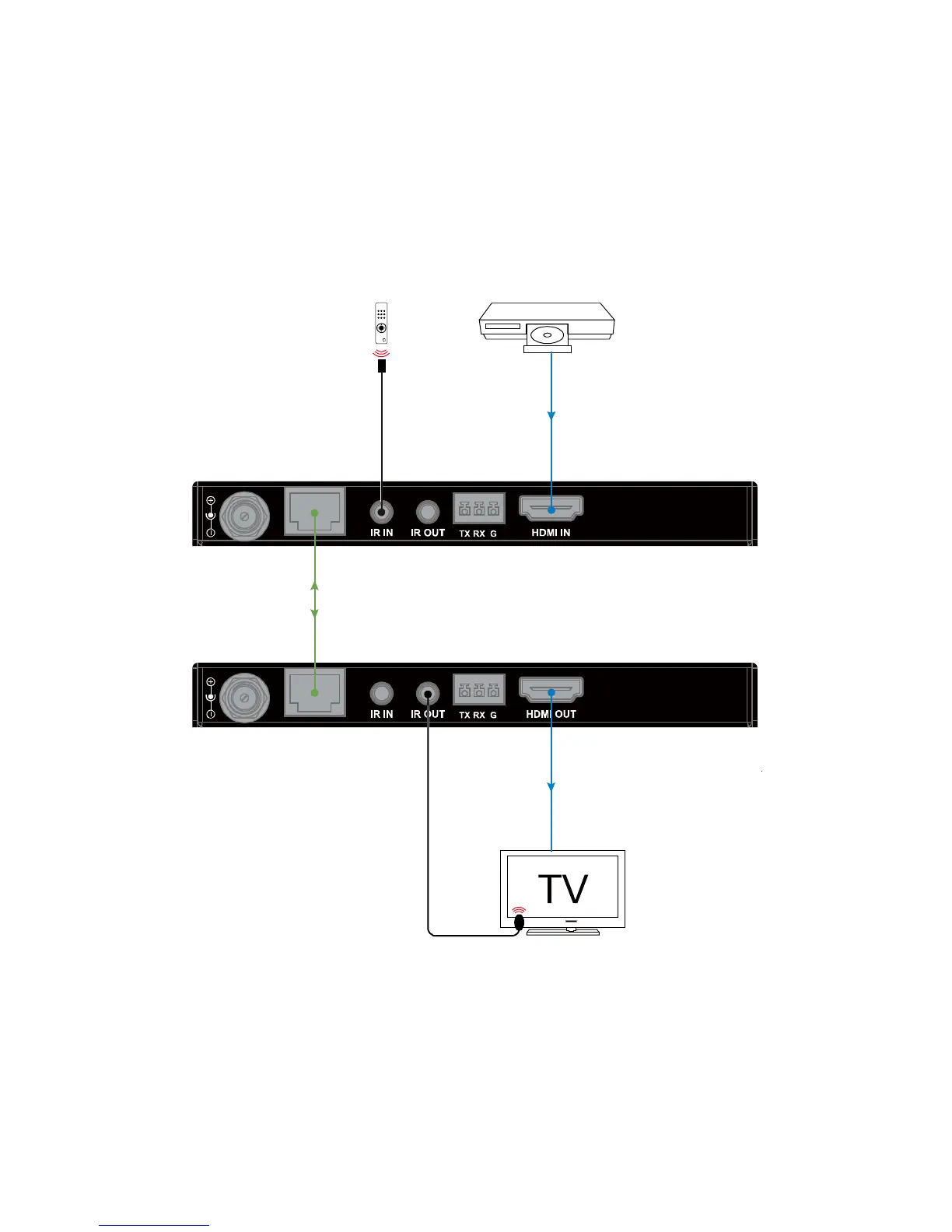

2� Control the display
Connect a broadband IR receiver to the IR IN port of the
Transmitter and an IR
emitter to the IR OUT port of the Receiver. Users can control the TV at the DVD
location with the TV remote.
Transmitter
Receiver
TV Remote
DVD
HDMI IN
HDBT OUT
HDBT IN
Cat X cable
HDMI OUTIR Emitter
Broadband
IR Receiver
Control the display at the source location

Link EXT40-4KUHD Specifications

General

Brand	Link
Model	EXT40-4KUHD
Category	Extender
Language	English
