Chapter 2: Getting to Know the 10/100/1000 Gigabit Network Adapter
Port and LEDs
10/100/1000 Gigabit Network Adapter
Chapter 2: Getting to Know the 10/100/1000 Gigabit Network
Adapter
Port and LEDs
The Adapter’s port and LEDs are located on the metal panel.
RJ-45 Port The RJ-45 port is where you will connect your Ethernet network cable.
Gigabit LED Green. The Gigabit LED lights up when the Adapter is operating at 1000Mbps. If the Gigabit
LED is not lit and the PC is powered on, the Adapter has automatically determined that your
network is operating at a slower speed and adjusted accordingly.
Link/Act LED Orange. The Link/Act LED lights up when the Adapter is connected to a network. It flashes
when there is network activity.

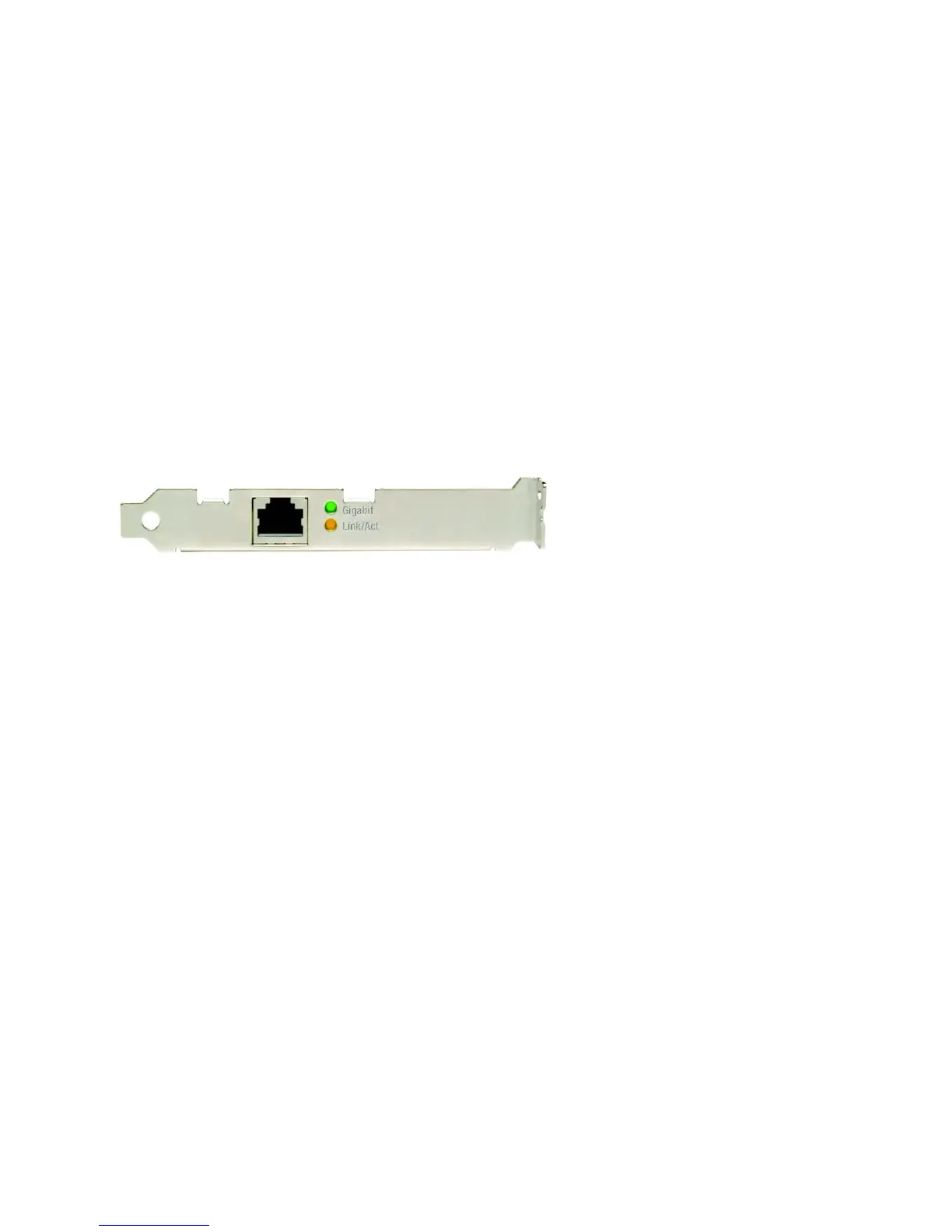

Figure 2-1: Port and LEDs
