9
Set the Switch on its four rubber feet. For the 8- or 16-Port 10/100 Switch, you
can choose to hang it on a wall using its wall-mount slots. To use this option,
follow these instructions:
1. The wall-mount slots are two
crisscross slots on the Switch’s
bottom panel, as shown in
Figure 3-4. Attach two screws
to the wall, so that the Switch’s
wall-mount slots line up with
the two screws.
2. Maneuver the Switch so the
screws are inserted into the
two slots.
Congratulations!
The installation of the 10/100
Switch is complete.
Placement Options
Figure 3-4
For help with the installation or operation of the 10/100 Switch, contact
Linksys Technical Support at one of the phone numbers listed on the
Technical Support insert or one of the Internet addresses below:
E-mail: Europe europe-support@linksys.com
United Kingdom &Ireland uks@linksys.com
Latin America latam-soporte@linksys.com
For unlisted regions or the most up-to-date contact information, please
visit the website below:
Website http://www.linksys.com/international
8

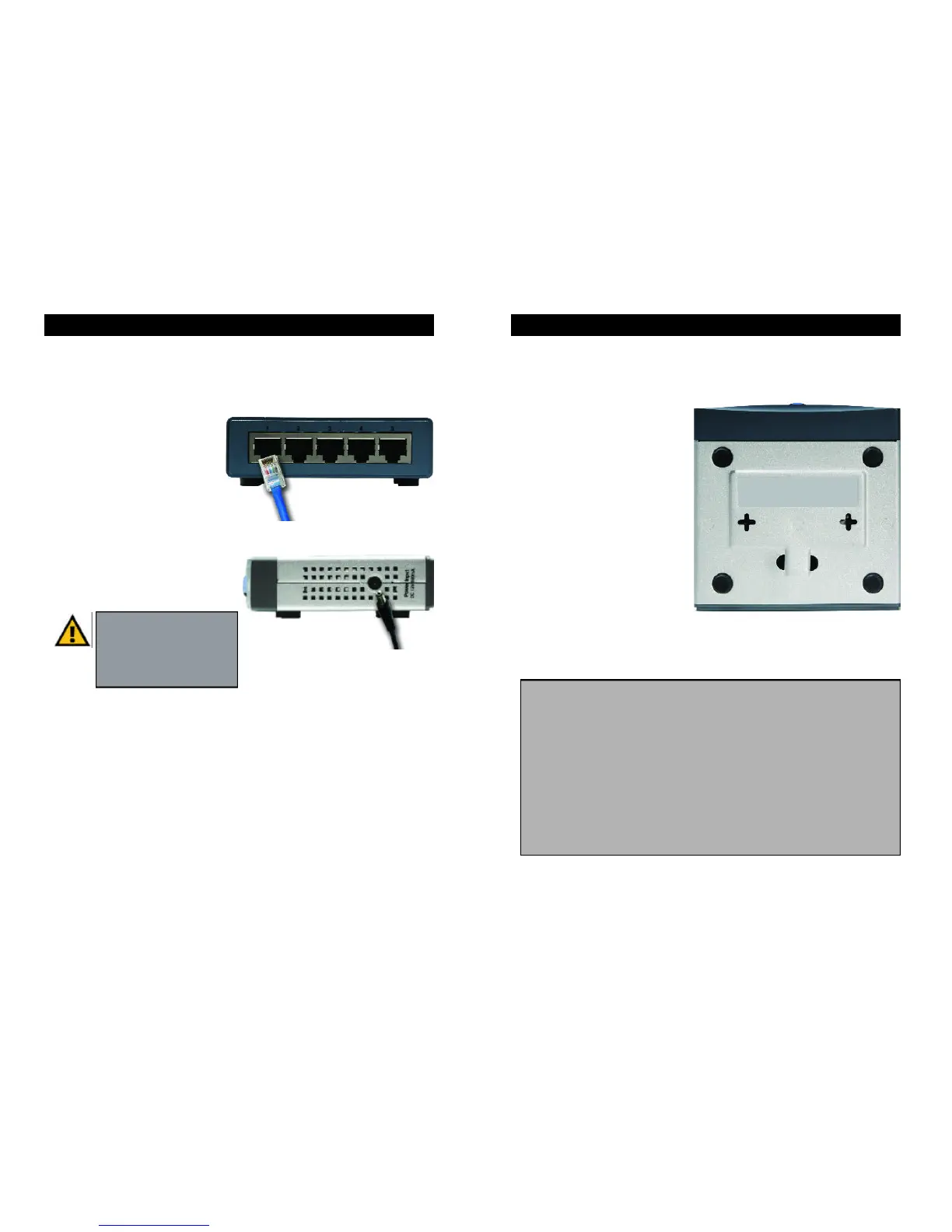

Follow these instructions for the 5-, 8-, and 16-Port 10/100 Switches (the 5-Port
10/100 Switch is shown in Figures 3-2 and 3-3).
1. Make sure all the devices you will connect to the Switch are powered off.
2. Connect a Category 5 Ethernet
network cable to one of the
numbered ports on the Switch.
3. Connect the other end to a PC
or other network device.
4. Repeat steps 2 and 3 to
connect additional devices.
5. Connect the supplied power
adapter to the power port on the
Switch’s side panel.
6. Plug the other end of the adapter into a power outlet.
7. Power on the devices connected to the Switch. Each active port’s
corresponding LED will light up on the Switch.
Proceed to the following section, “Placement Options.”
Figure 3-3
Connecting Network Devices
Note: Make sure you use the
power adapter included with
the Switch. Using a different
power adapter may result in
damage to the Switch.
Figure 3-2
