Chapter 2: Getting to Know the Switch
The Front Panel
16-Port or 24-Port 10/100/1000 Gigabit Switch
SR2024C
LEDs
System Green. The System LED lights up when the Switch is powered on.
Link/Act Green. Each LED will light up when there is a connection made through its
corresponding port. It will flash when there is activity on its corresponding port.
Gigabit Yellow. LED will light up solid when there is a gigabit connection made through its
corresponding port.
Ports
1-24 (Ethernet) The Ethernet ports connect to network devices, such as PCs, print servers, or
additional switches.
MiniGBIC 1, MiniGBIC 2 The miniGBIC (gigabit interface converter) ports are connection points for miniGBIC
modules and are only included on the SR2024C. These ports are shared. If you use the
Mini GBIC 1 port, then you cannot use port 12. If you use the Mini GBIC 2 port, then you
cannot use port 24.

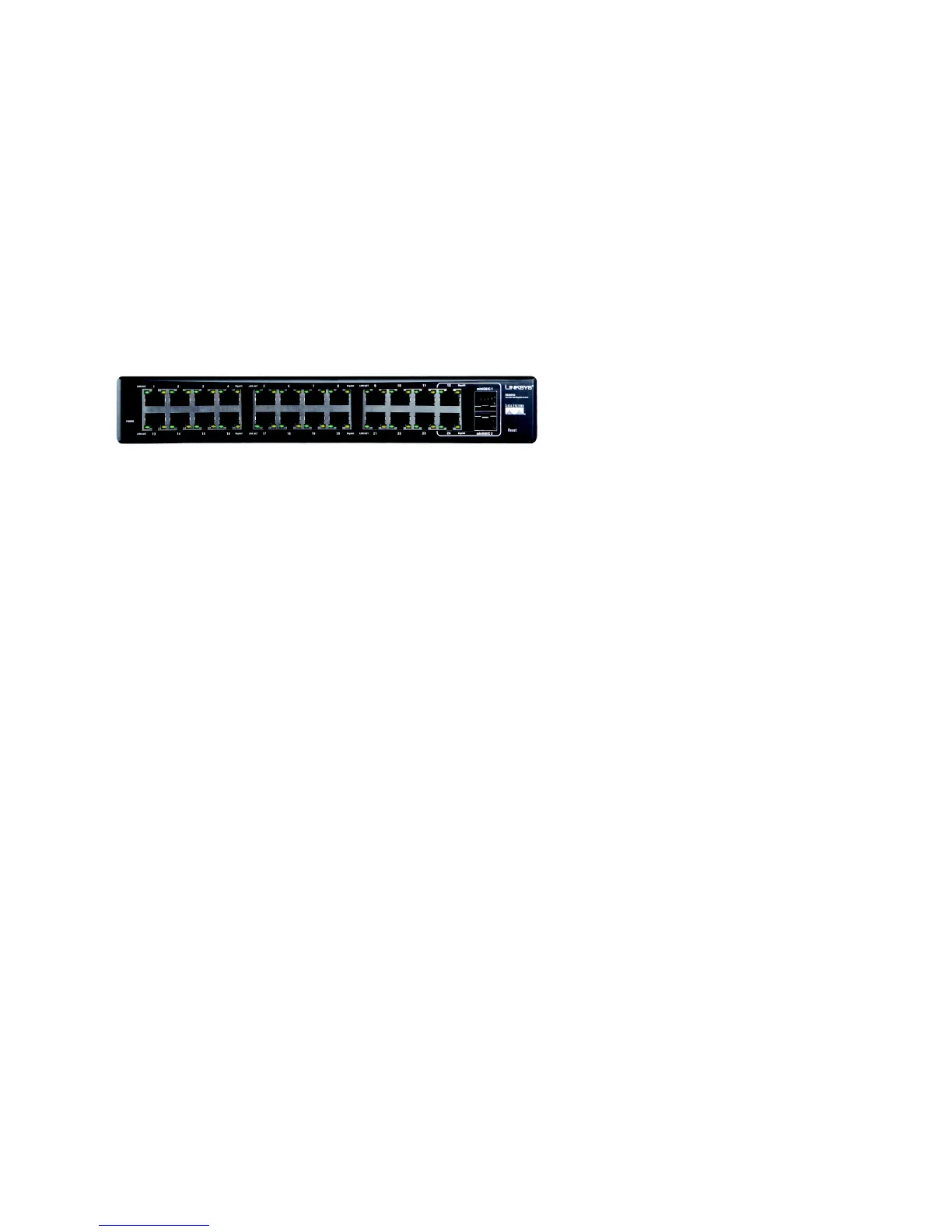

Figure 2-2: SR2024C Front Panel
