5
Chapter 2: Getting to Know the Switch
The Back Panel
16-Port or 24-Port 10/100/1000 Gigabit Switch
The Back Panel
The power port is located on the back panel of the Switch.
Power The Power port is where you will connect the included AC power cable.
The Side Panel
Security Slot The Security Slot is where you can attach a lock to guard against theft.

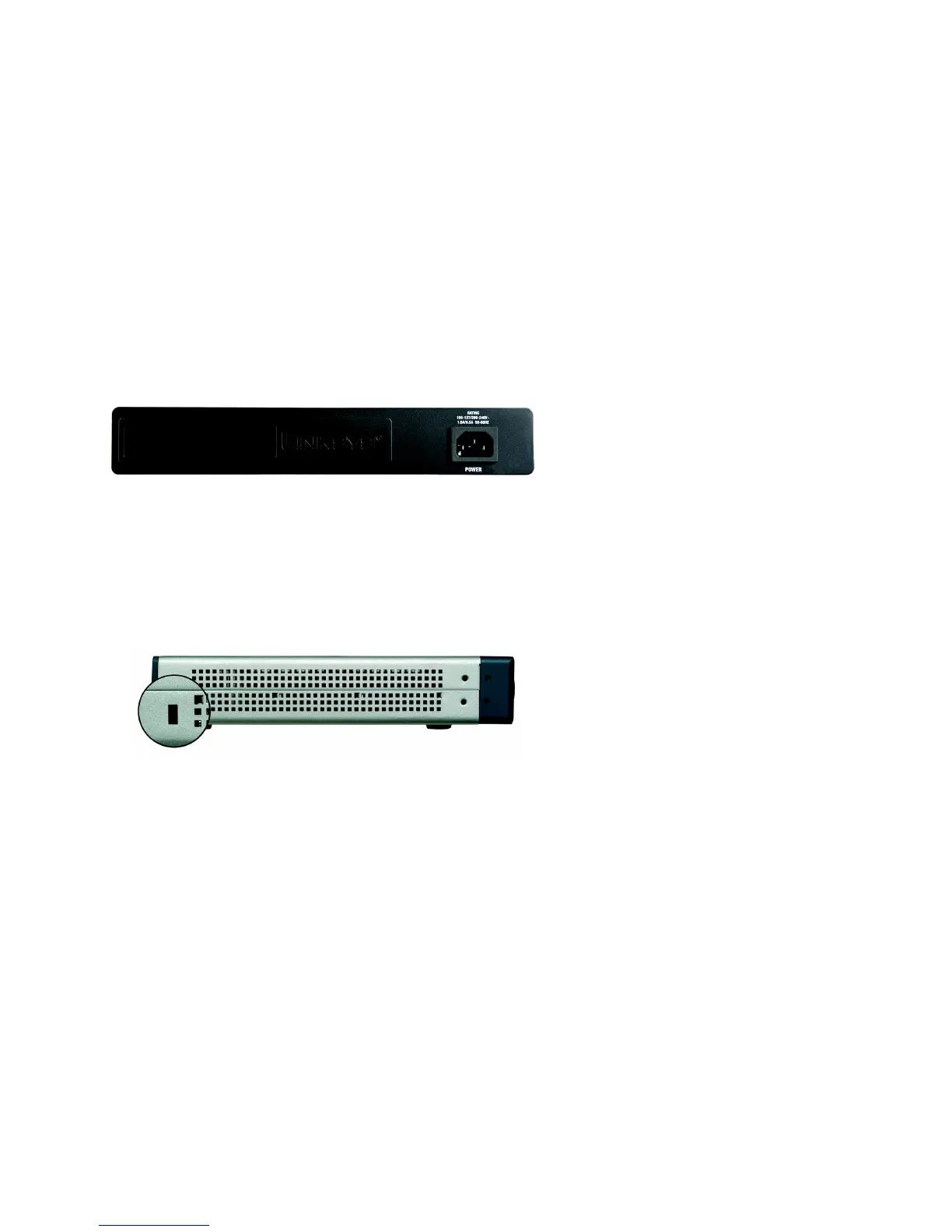

Figure 2-3: Back Panel
Figure 2-4: Left Side Panel
