Linksys WRT54G2 User Manual

Chapter 1
Product Overview
2
Wireless-G Broadband Router
Wall-Mounting Placement
The Router has two wall-mount slots on its bottom
panel. The distance between the slots is 152 mm
(6 inches).
Two screws are needed to mount the Router.
Suggested Mounting Hardware
2.5-3.0 mm
4-5 mm 1-1.5 mm
Note: Mounting hardware illustrations are not
true to scale.
†
NOTE: Linksys is not responsible for damages
incurred by insecure wall-mounting hardware.
Follow these instructions:
Determine where you want to mount the Router. Make
sure that the wall you use is smooth, flat, dry, and
sturdy. Also make sure the location is within reach of
an electrical outlet.
Drill two holes into the wall. Make sure the holes are
152 mm (6 inches) apart.
Insert a screw into each hole and leave 3 mm
(0.12 inches) of its head exposed.
Maneuver the Router so the wall-mount slots line up
with the two screws.
Place the wall-mount slots over the screws and slide
the Router down until the screws fit snugly into the
wall-mount slots.
1.
2.
3.
4.
5.
152 mm

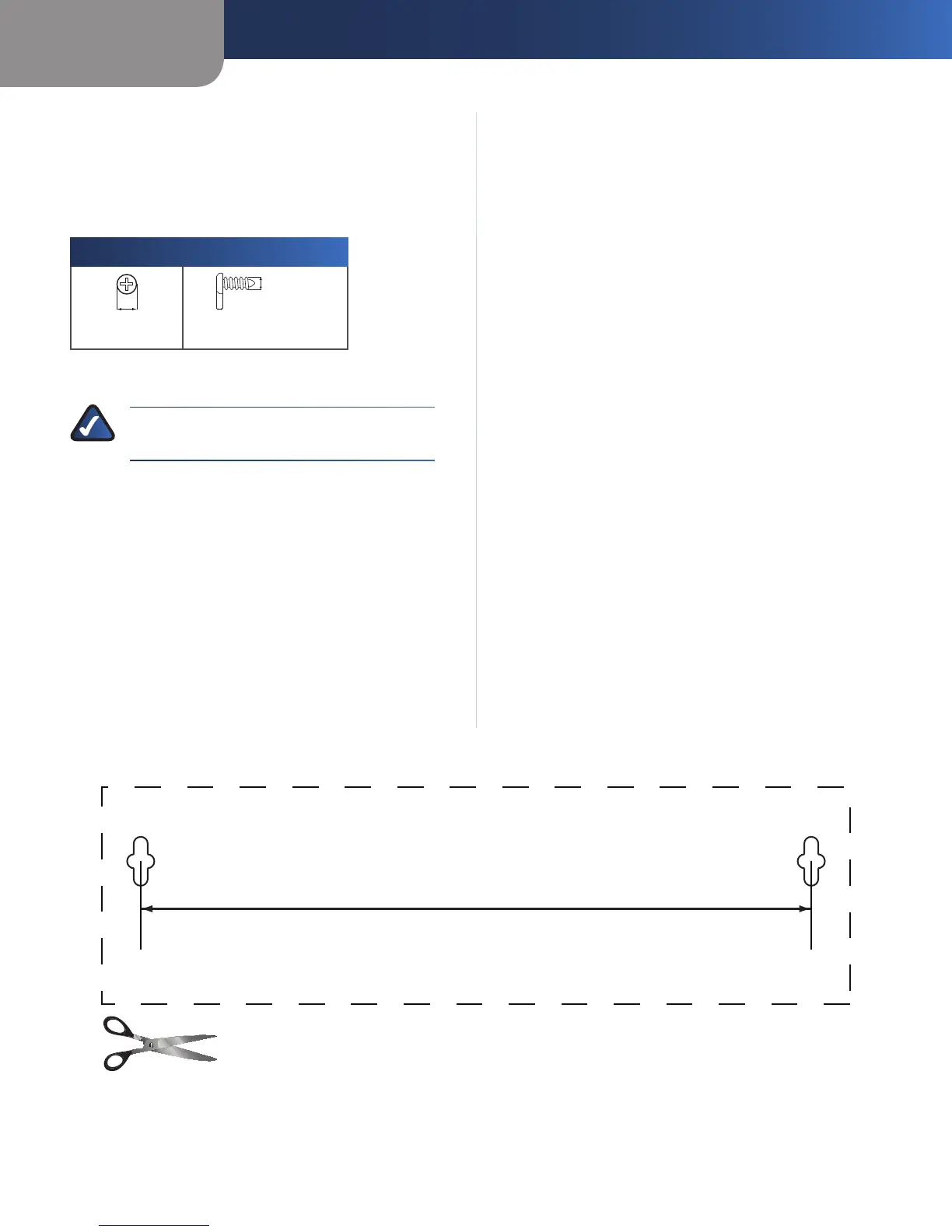

Wall Mounting Template
Print this page at 100% size.
Cut along the dotted line, and place on the wall to drill precise spacing.

Linksys WRT54G2 Specifications

Ports & Interfaces

internet port	One 10/100 RJ-45 Port
LAN ports	Four 10/100 RJ-45 Switched Ports
power port	One Power Port

Power

power supply	External, 12V DC, 0.5A
RF power (EIRP)	18 dBm
operating voltage	12V DC

Operating Environment

operating temperature	32 to 104°F (0 to 40°C)
storage temperature	-4 to 140°F (-20 to 60°C)
operating humidity	10 to 85%, Noncondensing

Weight and Dimensions

dimensions	7.99" x 1.38" x 6.3" (203 x 35 x 160 mm)
weight	9.88 oz (0.28 kg)
number of antennas	2 Internal Antennas
