How To Use the Parallel I/O Option

Linx 5900 & 7900

To configure another input or another range of inputs, press the New key, and then

repeat steps 2 to 7. If you configure more inputs, the inputs that you assigned

earlier (6 to 4) are not available in the First Input or Last Input pages.

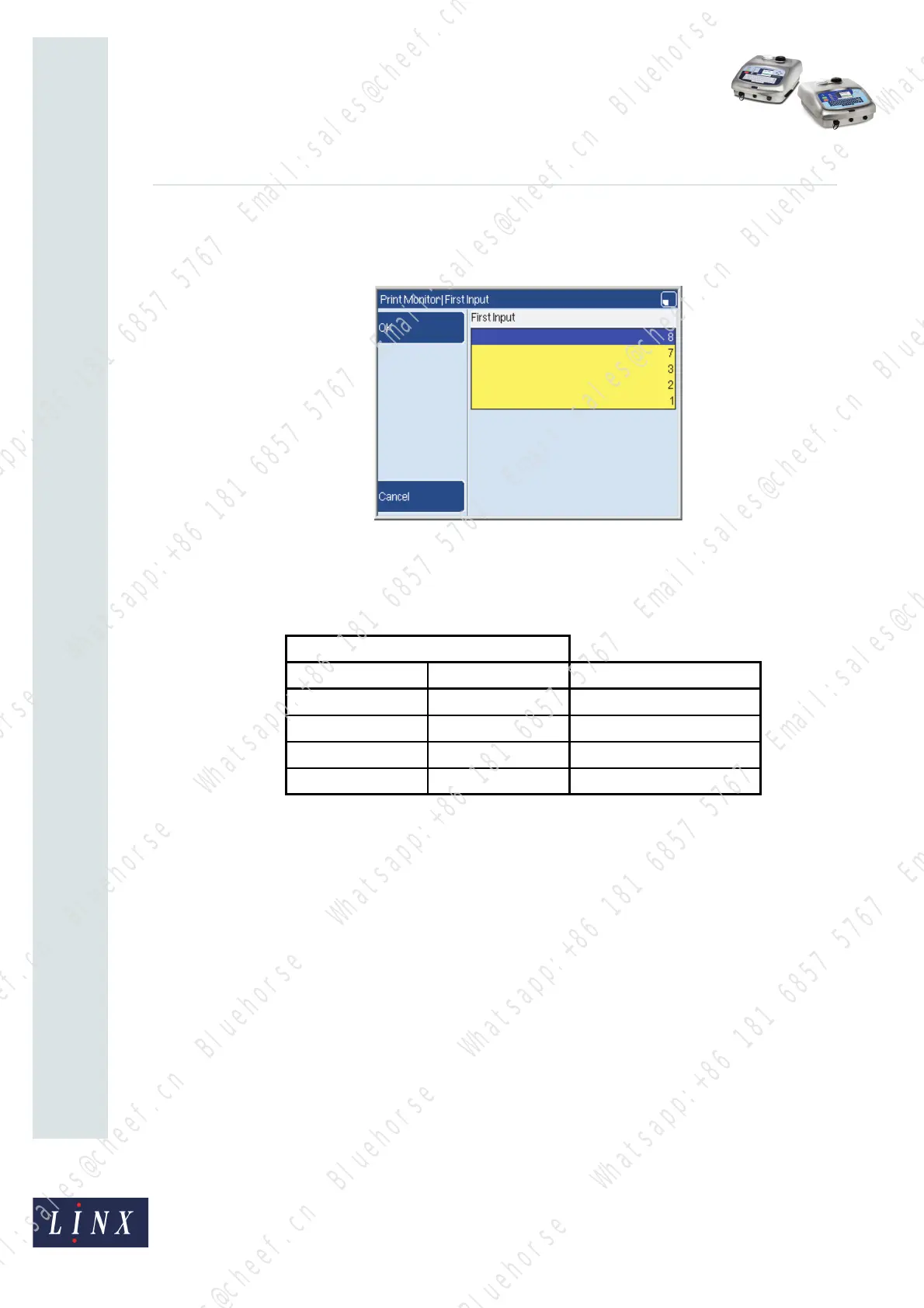

Figure 22. First Input page

Define the input actions

You can assign an action to each combination of input signals. For example:

Three inputs give you eight combinations and allow you to select eight actions (only four

combinations are shown here). If you use four inputs, you can select any of the 10 actions

that are available.

When the input combination is activated, the printer performs the action that you set.

Inputs 6, 5, 4

‘Source’ option ‘Sink’ option Selected action

0 0 0 1 1 1 (No action)

0 0 1 1 1 0 Select Message

0 1 0 1 0 1 Start Print

0 1 1 1 0 0 Pause Print

Table 2. Input combinations and selected actions
