Page 30 of 33 FA69388–2 English

Jun 2013

How To Use the Parallel I/O Option

Linx 5900 & 7900

If the ‘Source’ option is selected, connect any inputs that are not active to the 0 V line. To

connect an active input, use a pull-down resistor on the input (A) as shown in Figure 46 (a),

or use a relay (b).

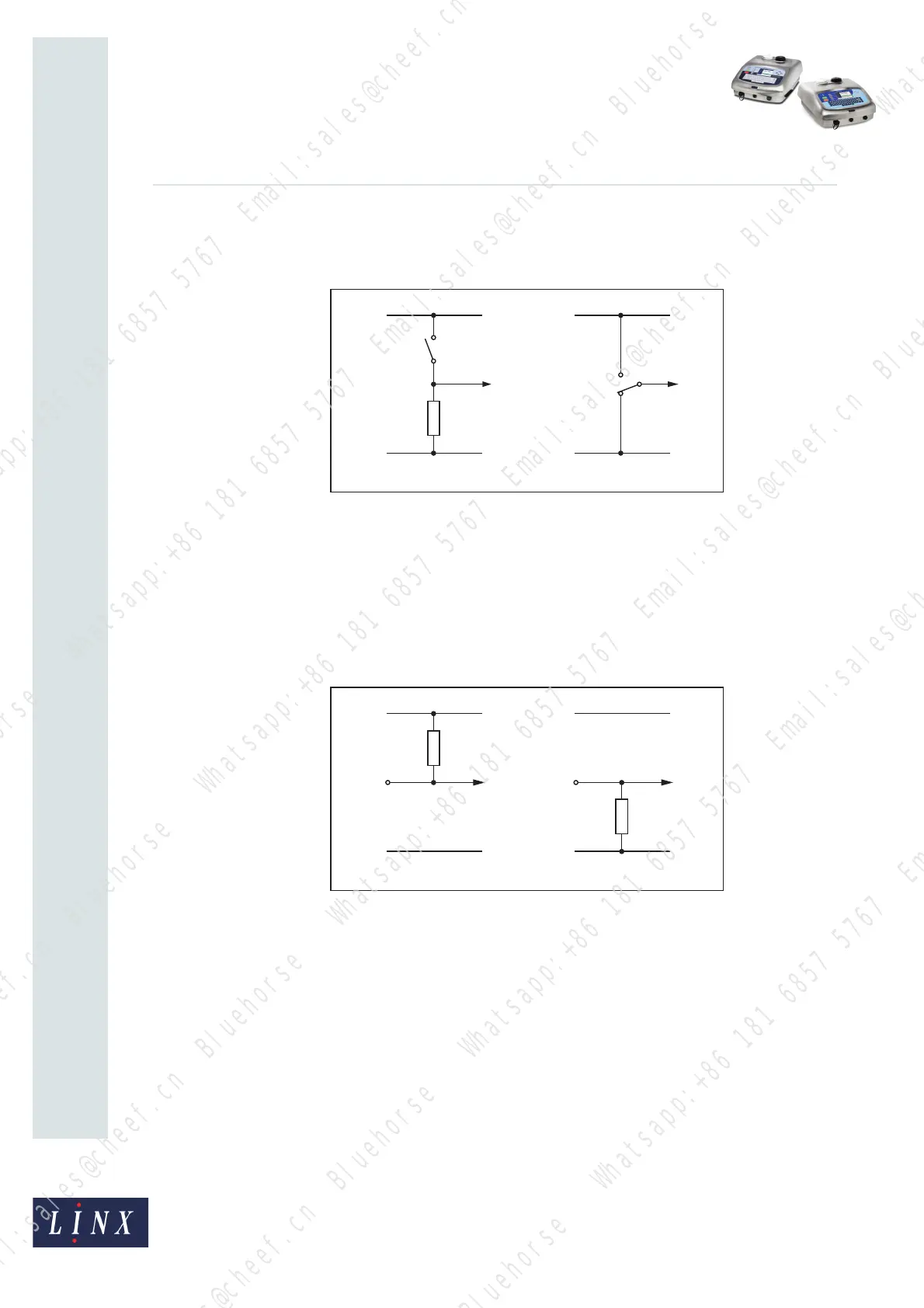

Figure 46. Input connection: ‘Source’ option

If the inputs are set to ‘Inverted’ in the Input Inversion menu (see page 27), reverse the

above settings. (The default settings are ‘Sink’ and ‘Not Inverted’.)

3.3 Output connections

Figure 47 shows how you connect a load (B) to an output (A) that is set to the ‘Sink’

option (a) or the ‘Source’ option (b).

Figure 47. Output connections

The current in the load must not be more than 100 mA.

+24 V

0 V

2k7

+24 V

0 V

(a) (b)

73060

(a) (b)

73061

+24 V

0 V

+24 V

0 V
