How To Use the Parallel I/O Option

Linx 5900 & 7900

3.5 Multi-stage alarm connectors

The multi-stage alarm can use either a six-pin volt-free contact (VFC) connector or

seven-pin 24 V connector for outputs.

The function of the connector pins for each connector is shown in the following diagrams.

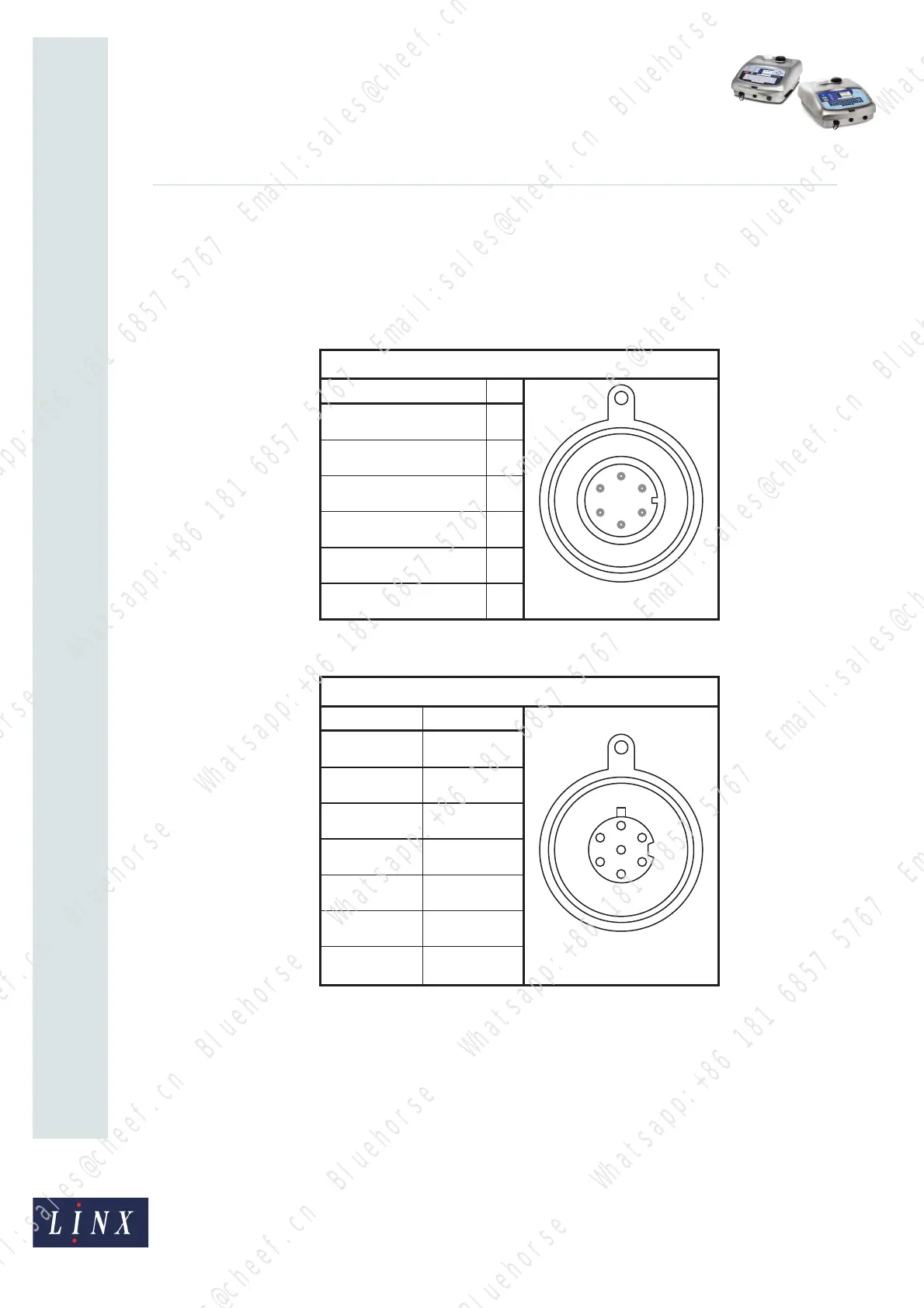

Figure 49. Multi-stage alarm: volt-free contact (VFC) six-pin connector

Figure 50. Multi-stage alarm: 24 V seven-pin connector

69391

MULTI-STAGE ALARM (VFC) CONNECTOR

Signal Pin

N/C (Normally Closed) 4 1

N/O (Normally Open) 4 2

Common 3

N/O (Normally Open) 3 4

N/O (Normally Open) 2 5

N/C (Normally Closed) 1 6

6-Way Plug Connector

on the Printer

7-Way Socket Connector

on the Printer

69392

MULTI-STAGE ALARM (24 V) CONNECTOR

Signal Pin

Alarm 1 1

Alarm 2 2

Alarm 3 3

24 V 4

Not used 5

Alarm 4 6

Not used 7
