SMOKE GENERATOR
14
WWW.LIONPROTECTS.COM
5. Press ENTER and use the UP and DOWN buttons to change the DMX channel
that the Smoke Generator will use.
a. This setting will likely only need to be changed if the generator will be
operated with a dimmer pack and multiple generators will be controlled by
the same pack.
6. Use the UP and DOWN buttons to select “RC” in the bottom right corner. Press
ENTER to change to the remote control display seen in Figure 7.
7. This display is used to link remote controls to the Smoke Generator and designate
which buttons on the remote will operate the machine.
8. As seen at the right of Figure 7, a remote can operate two independent Smoke
Generators by selecting A or B on the “Buttons” option. Each set of four buttons
on the remote function the same as the buttons on the Smoke Generator control
panel, AUTO operates the same way as RUN.

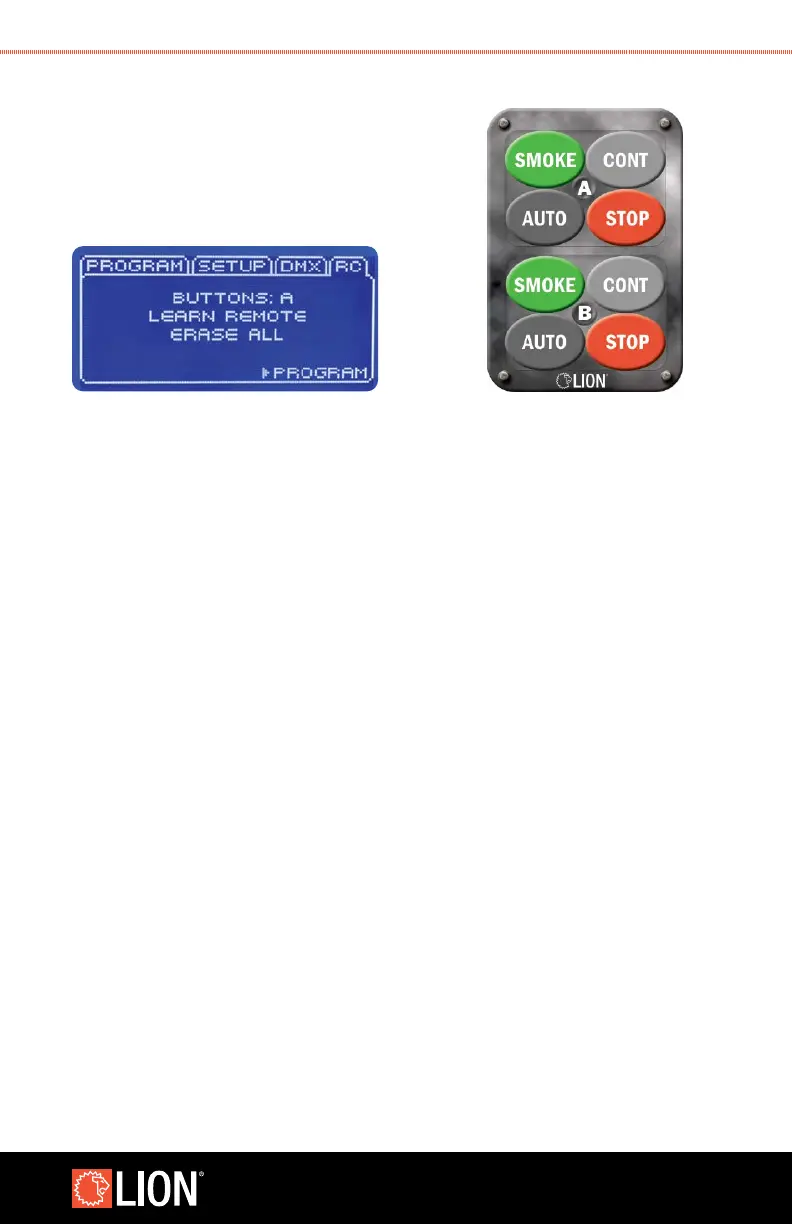

FIGURE 7: REMOTE CONTROL DISPLAY AND REMOTE LAYOUT
