4
lci1.com 574-537-8900 Rev: 09.17.20
Solera
®
Slide Topper
Access Kit
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0002640

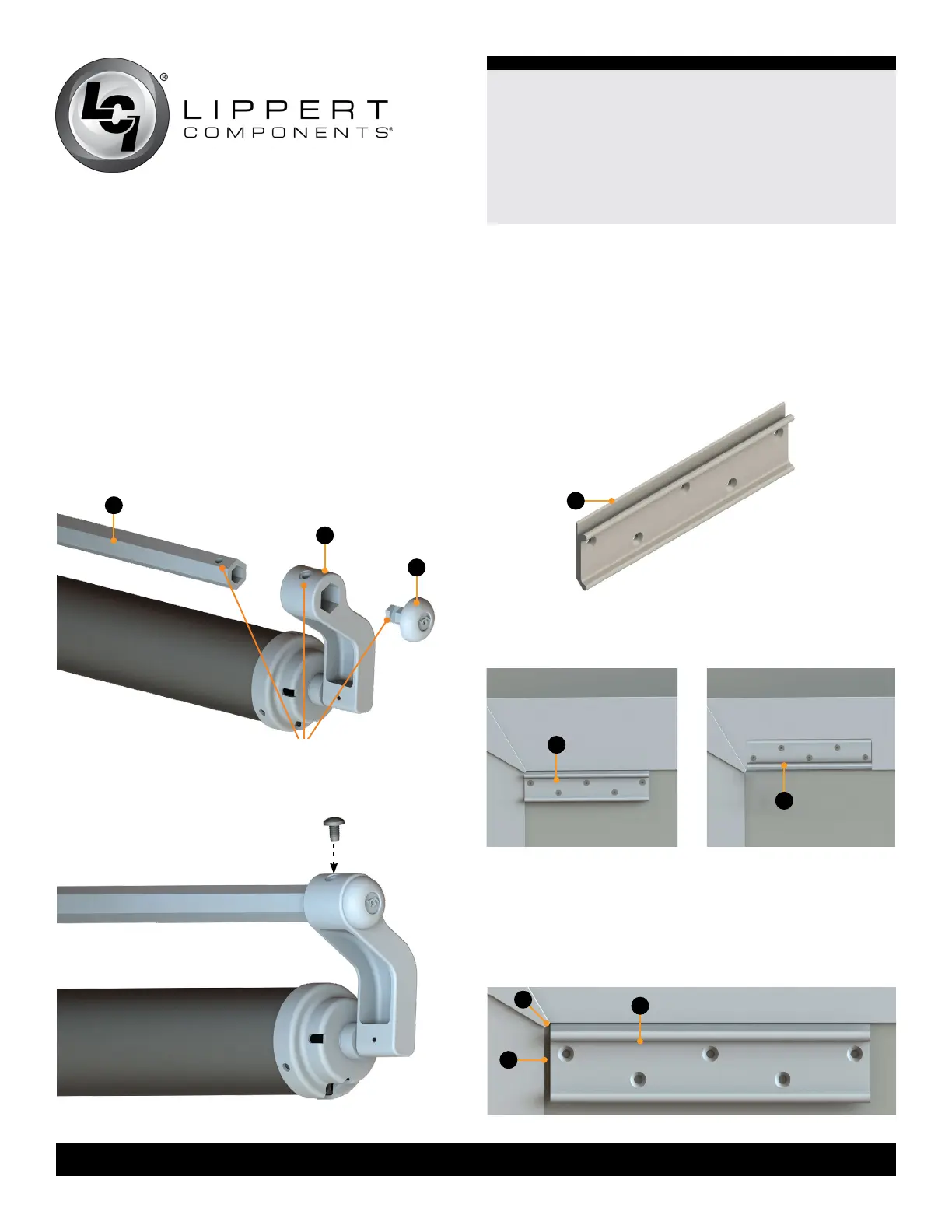

Fig.6
Fig.7
A
B
C
Assemble the Extension Rod and Cap
1. Slide the extension rod (Fig.6A) into the spring head
assembly torsion arm (Fig.6B), aligning the fastener
locations (Fig.6).
2. Slide the spring head assembly torsion arm end cap
(Fig.6C) into the extension rod (Fig.6A), aligning all three
fastener locations (Fig.6). Fasten using the provided
screw (Fig.7).
3. Repeat steps 1 and 2 for the opposite end.
fastener locations
Fig.8
Installation of the Access Plate if NOT Already
installed on the Unit
1. If The access plate (Fig.8) has NOT already been
(Fig.8A) at
the top or bottom, depending on which option allows for a
more square installation on the unit.
A
2. Install the access plate below the T-molding (Fig.9) or on
the T-molding (Fig.10).
A
Fig.9 Fig.10
A
A. If installing below the T-molding, start on one side of
the front of the slide-out by placing one of the two access
brackets (Fig.11A) against the bottom of the T-molding at
the top corner of the slide-out (Fig.11B) as close to the
corner as possible. Keep the mounting bracket parallel
with the bottom edge of the T-molding.
Fig.11
A
B
C
To Next Page
