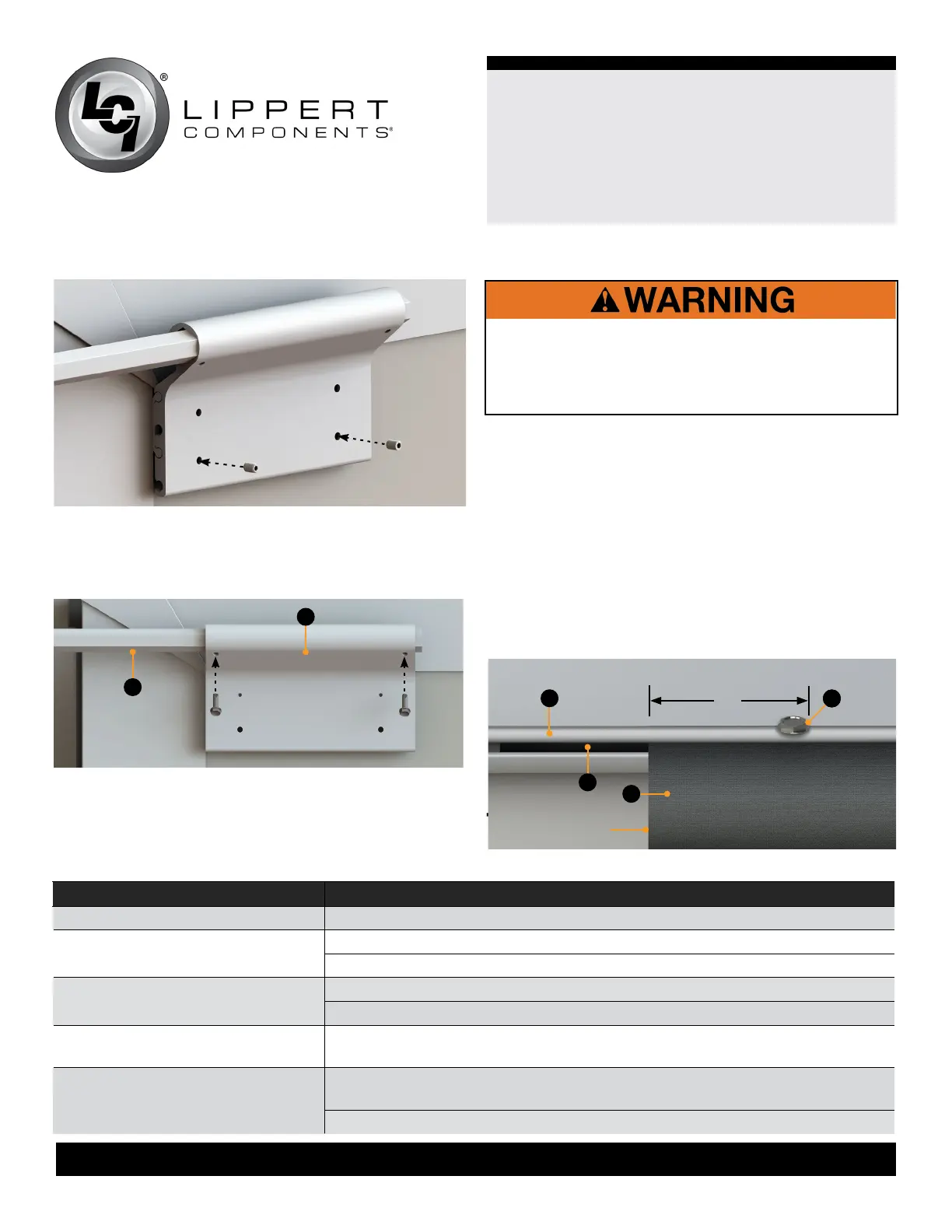

7
lci1.com 574-537-8900 Rev: 09.17.20
Solera
®
Slide Topper
Access Kit
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0002640
9. Center the Solera
®
Slide Topper over the slide room
using a tape measure.
Troubleshooting
What’s Happening? What Should Be Done?
Rub marks appear on the fabric. Check that there is no debris in the track where fabric goes into the case.
Fabric sags or is loose.
Check tension on springs.
Make sure the end caps are properly secured.
Fabric will not roll up.
Check tension on springs.
Make sure there are no debris or foreign objects in the fabric opening or case.
Fabric will not unroll.
Make sure the spring clip that lock the tension for install have been removed
from both ends of the end caps.
Fabric appears to roll up
at an angle.
Make sure the rail that is mounted to the unit is square with the main housing
of the slide topper.
Make sure fabric is cut square.
Securing the Fabric
1. Extend and retract the room several times to ensure
that the fabric is square on the roll tube.
2. Secure the fabric (Fig.22A) in the awning rail (Fig.15B) no
more than 1” inside the edge of the fabric on both ends
using a #6 x ½” hex head screw (Fig.22C). Install the screw
(Fig.15C) down through the awning rail (Fig.22B) into the
fabric (Fig.15A) and the polycord (Fig.15D).
1"
B
D
C
A
outer edge
of fabric
Fig.22
ROLL TUBE SPRINGS ARE UNDER TENSION.
IMPROPERLY SECURED ROLL TUBE SPRINGS CAN
CAUSE PERSONAL INJURY AND/OR PRODUCT DAMAGE.
SLOWLY RELEASE SPRING TENSION TO AVOID
PERSONAL INJURY AND/OR PRODUCT DAMAGE.
B
A
Fig.20
Fig.21
10. Fasten the extension rods (Fig.21A) to the access
brackets (Fig.21B) by installing two of the provided
#10 - 16 x
¾” self-drilling hex washer head screws (Fig.21).
11. Firmly hold the roll tube when removing the spring clip
to relieve spring tension.
To Next Page
