Lippert Titan Leveling Systems - Hydraulic Plumbing Diagram

Rev: 10.23.23 Page 28 CCD-0005481

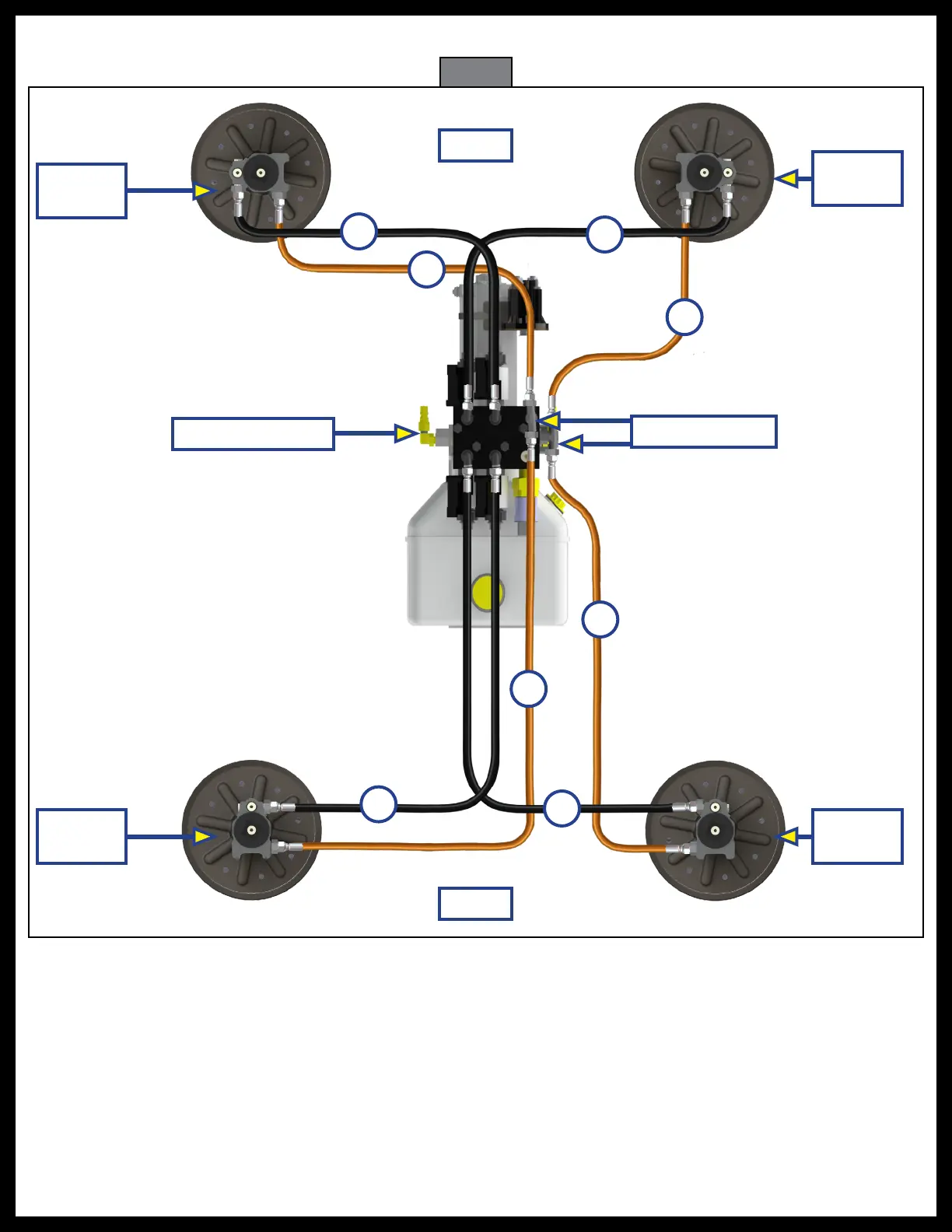

Hydraulic Plumbing Diagram
• Hoses will vary in length by coach model.
• Measure hose and consult LCI Service. Hose Specs. 3000 p.s.i.; 1/4” in. I.D.
• Passenger Side Front - Black Hose - PURPLE Label & Wire
• Driver Side Front - Black Hose - GREEN Label & Wire
• Passenger Side Rear - Black Hose - RED Label & Wire
• Driver Side Rear - Black Hose - BLUE Label & Wire
• Return - Orange Hose
• PSI Switch - Yellow Wire into Blue PSI Wire
Rear
Front
Quick Disconnect
Leveling
Jack
Leveling
Jack
Leveling
Jack
Leveling
Jack
Fig. 51
A
B
C
D
E
Retract Fittings
F
G
H
