Lippert Titan Leveling Systems - Installing the Steel Front Crossbar

Rev: 10.23.23 Page 23 CCD-0005481
Fig. 41 Fig. 42
Fig. 43
A
B
Installing the Steel Front Crossbar
NOTE: Crossbar must be installed between the Passenger Side and Driver's Side jacks.

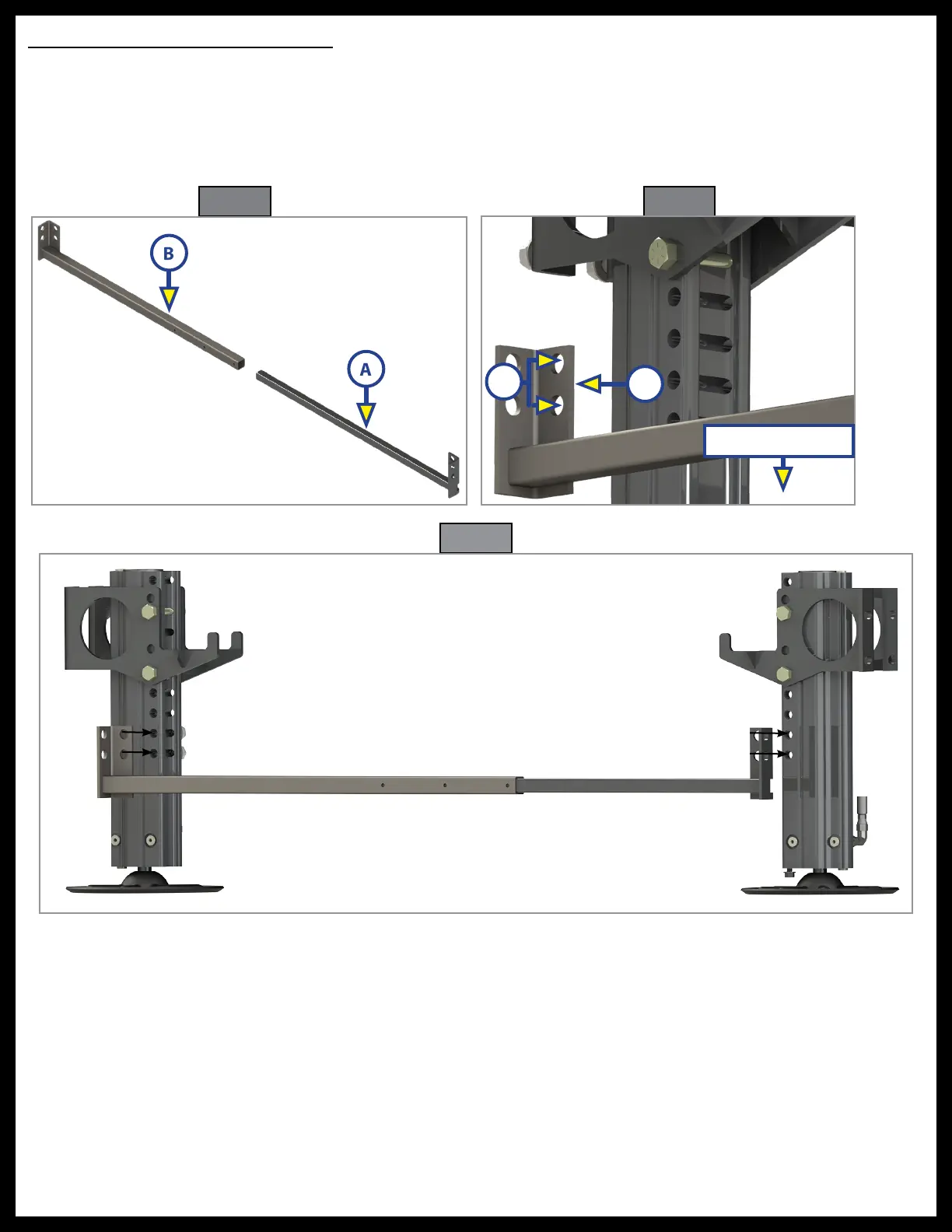

1. Slide the inner crossbar beam (Fig. 41A) into the outer crossbar beam. (Fig. 41B).
2. With the backside of the flanges of the crossbar mounting "L" brackets facing the front of the vehicle
(Fig. 42A), and the holes on the "L" brackets (Fig. 42B) above the crossbar (Fig. 42C), align the holes
with the bottom two mounting holes on the front jack mounting brackets (Fig. 43).
Front of Vehicle
B
A
