7-Way Pin Numbers and Circuits
7-Way Pin
Number Wire Color Circuit
4
red BRAKE
6
brown TAIL
2
black MARKER
5
green RIGHT TURN
7
blue AUXILLARY
1
white GROUND
3
yellow LEFT TURN

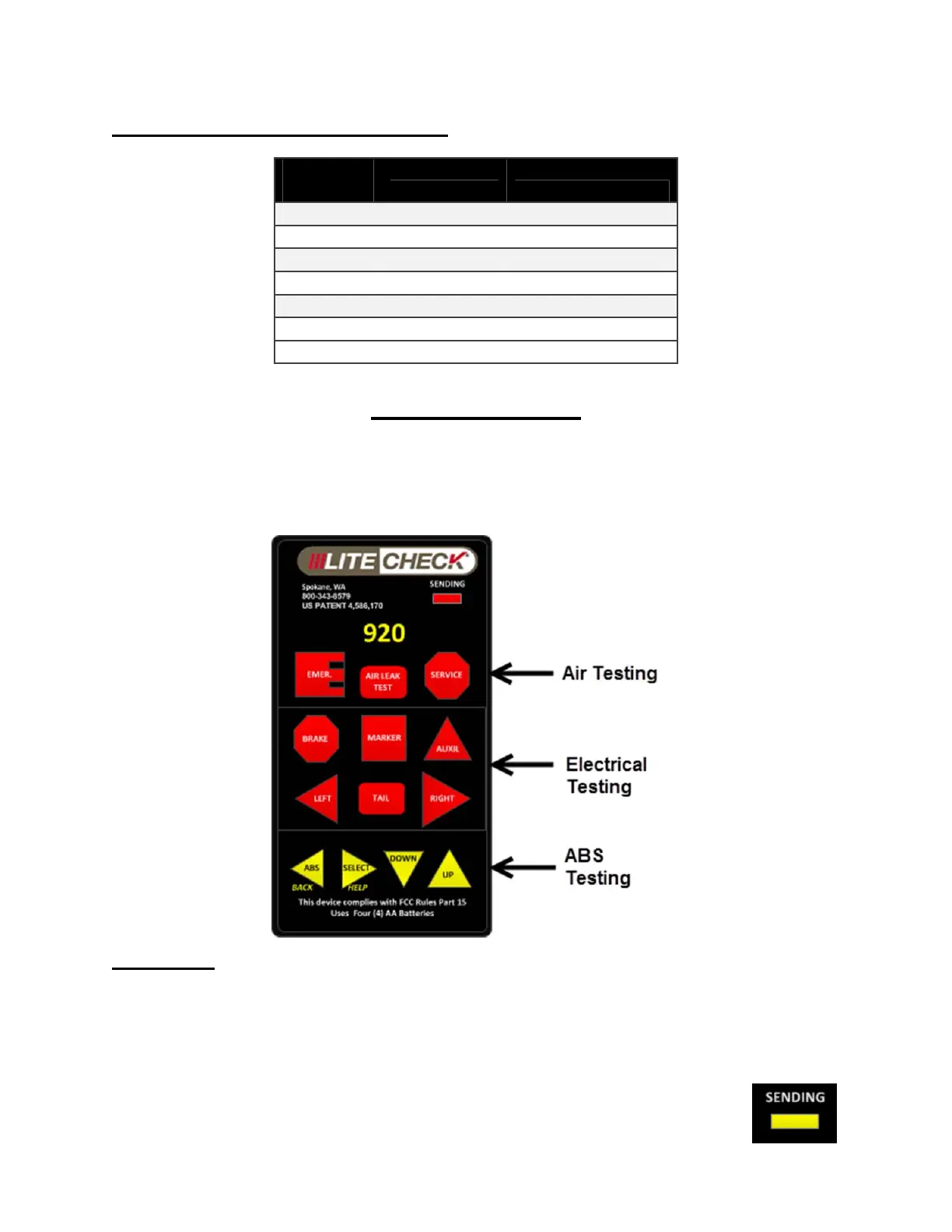

Remote Control
The remote control allows the vehicle inspector to operate air and electrical functions
around the vehicle and observe the responses.
Operation
 Press and release the designated button
 Inspect. One light circuit will be activated at a time
 The Remote Control is keyed to operate one tester at a time
 Remote Control operations are parallel to the panel keyboard
 Range with AA batteries in good condition is over 100 feet
