page 4
NOTE: The important safety precautions and
instructions appearing in the manual are not
meant to cover all possible conditions and
situations that may occur. It must be understood
that common sense and caution are necessary
factors in the installation and operation of this fan.

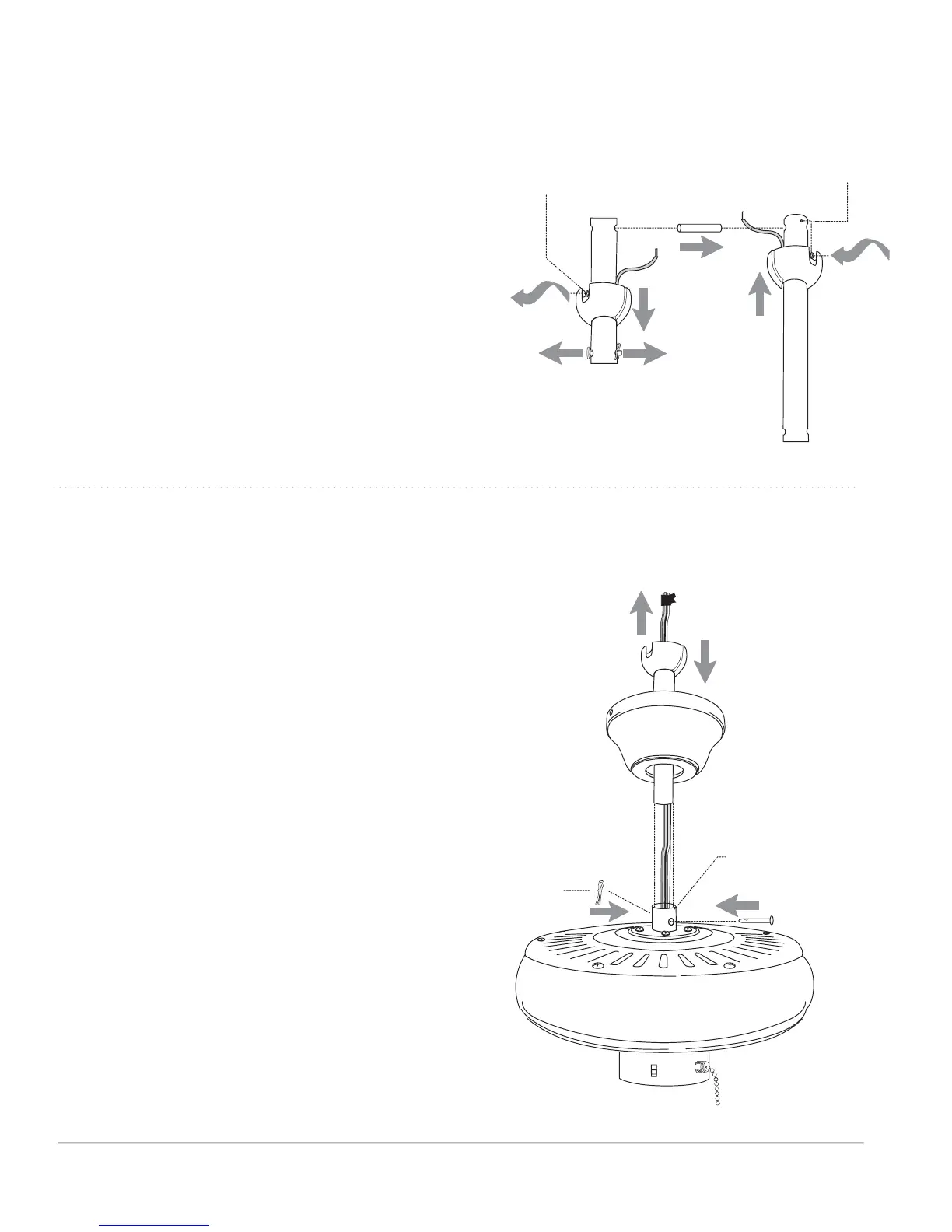

5. Fan Assembly (with downrod).
yoke set screw
downrod
electrical wiring
pin
clip
canopy
motor
housing
set screw hole
set screw
hanging ball
stop pin
pin
clip
A
B
If you wish to extend the hanging length of your
fan, you must remove the hanging ball from the
4in. downrod provided to use with an extended
downrod (sold separately). [If you wish to use the
4in. downrod, please proceed to instructions
following the dotted line below.]
To remove hanging ball, loosen set screw on
hanging ball and remove the pin and clip. Lower
hanging ball and remove stop pin. Slide hanging
ball off the original downrod, A, and slide it
down the longer downrod, B (the top of the
downrod should be noted as having a set screw
hole; use this hole when setting the set screw).
Insert stop pin into top of extended downrod
and raise hanging ball. Be sure stop pin aligns
with slots on the inside of the hanging ball.
Tighten set screw securely.
Remove pin and clip (if you have not already
done so). Slide downrod through canopy and
yoke cover.
Tip: To prepare for threading electrical wires
through downrod, apply a small piece of
electrical tape to the ends of the electrical
wires-this will keep the wires together when
threading them through the downrod.
Loosen yoke set screws and nuts at top of motor
housing. Remove pin and clip from downrod (if
you have not already done so). Slide downrod
through canopy and yoke cover.
Thread electrical wires through downrod and
pull extra wire slack from the upper end of the
downrod.
Place downrod into the motor housing yoke and
re-insert pin and clip that were previously
removed. Tighten yoke set screws and nuts
securely. Lower yoke cover and canopy to motor
housing.
["Fan Assembly" continued on next page.]
