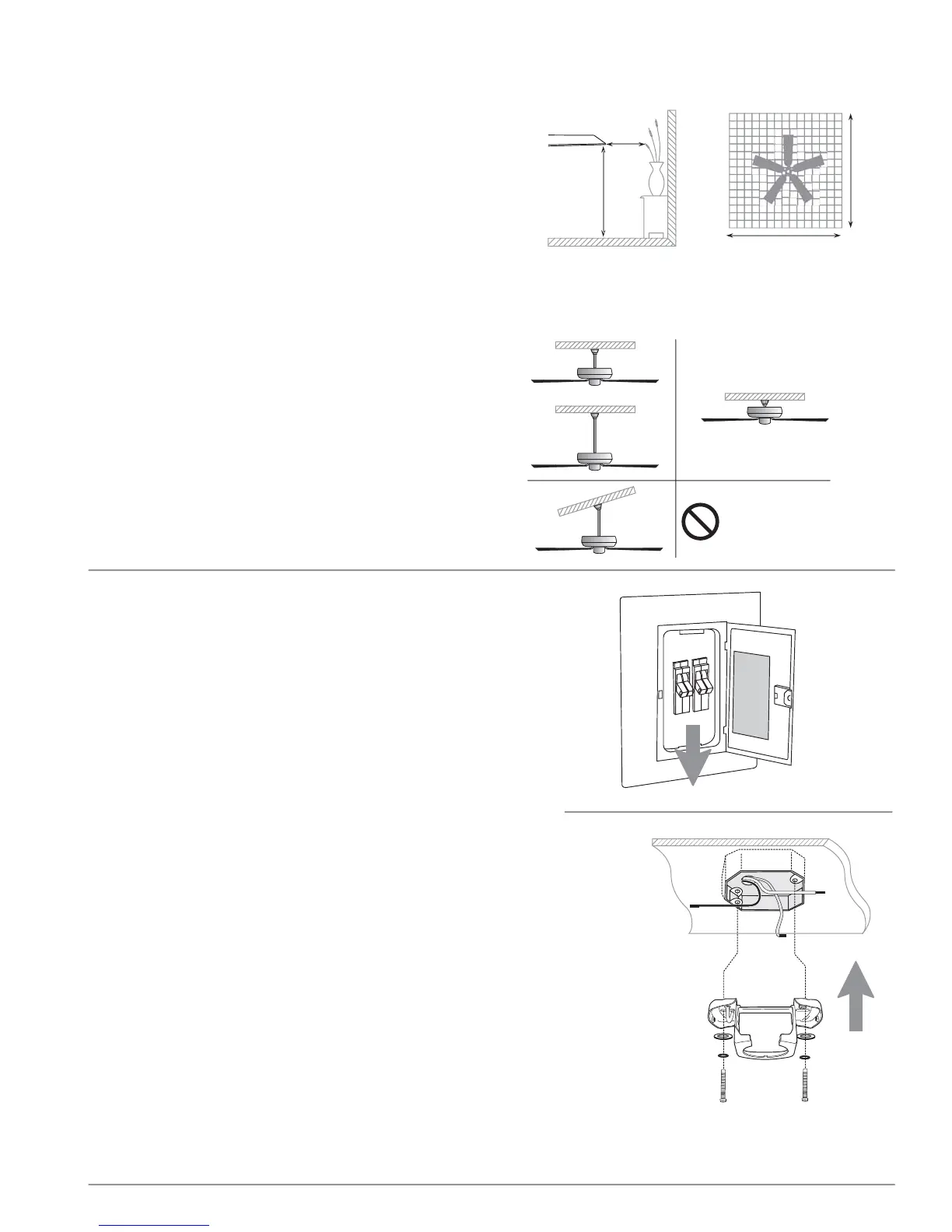

3. Installation Preparation.
4. Hanging Bracket Installation.
page 3
Vaulted ceiling
angle is not to
exceed 25 degrees.
downrod
installation
ON
OFF
ON
OFF
blade edge
7 feet
(2.13m)
(76cm)
30
inches
hanging bracket
spring washers
outlet box screws
flat washers
*Note: It is very important that you use the proper hardware when installing the hanging bracket as this will
support the fan.
flushmount
installation
12ft. - 20ft.
12ft. - 20ft.
(3.66m - 6.1m)
(3.66m - 6.1m)
Turn off circuit breakers to current fixture from breaker
panel and be sure operating light switch is turned to the
OFF position.
WARNING: Failure to disconnect power supply prior to
installation may result in serious injury.
Remove existing fixture.
WARNING: When using an existing outlet box, be sure the
outlet box is securely attached to the building structure and
can support the full weight of the fan. Ensure it is clearly
marked "Suitable for Fan Support." If not, it must be replaced
with an approved outlet box. Failure to do so can result in
serious injury.
CAUTION: Be sure oulet box is grounded properly and that a
ground wire (green or bare) is present.
Locate screws in slotted holes of canopy and partially
loosen these screws. Remove the other 2 screws--save
screws for later use. Twist canopy to remove hanging
bracket.
Install hanging bracket to outlet box using original screws,
spring washers and flat washers provided with new or
original outlet box.* If installing on a vaulted ceiling, face
opening of hanging bracket towards high point of ceiling.
Arrange electrical wiring around the back of the hanging
bracket and away from the hanging bracket opening.
To prevent personal injury and damage, ensure that
the hanging location allows the blades a clearance
of 7ft. (2.13m) from the floor and 30in. (76cm) from
any wall or obstruction.
This fan is suitable for room sizes up to 225 square
feet (20.9 square meters).
This fan can be mounted with a downrod
on a normal or vaulted ceiling. The hanging length
can be extended by purchasing a longer downrod
(0.5in./1.27cm diameter). After installing hanging
bracket, continue to Section 5 on page 4 for those
instructions. This fan can also be mounted using
flushmount installation only on a normal ceiling.
After installing hanging bracket, continue to Section 6
on page 5 for those instructions.
Installation requires these tools:
Phillips screwdriver, flat-head screwdriver,
adjustable pliers or wrench, stepladder, wire cutters,
and rated electrical tape.
