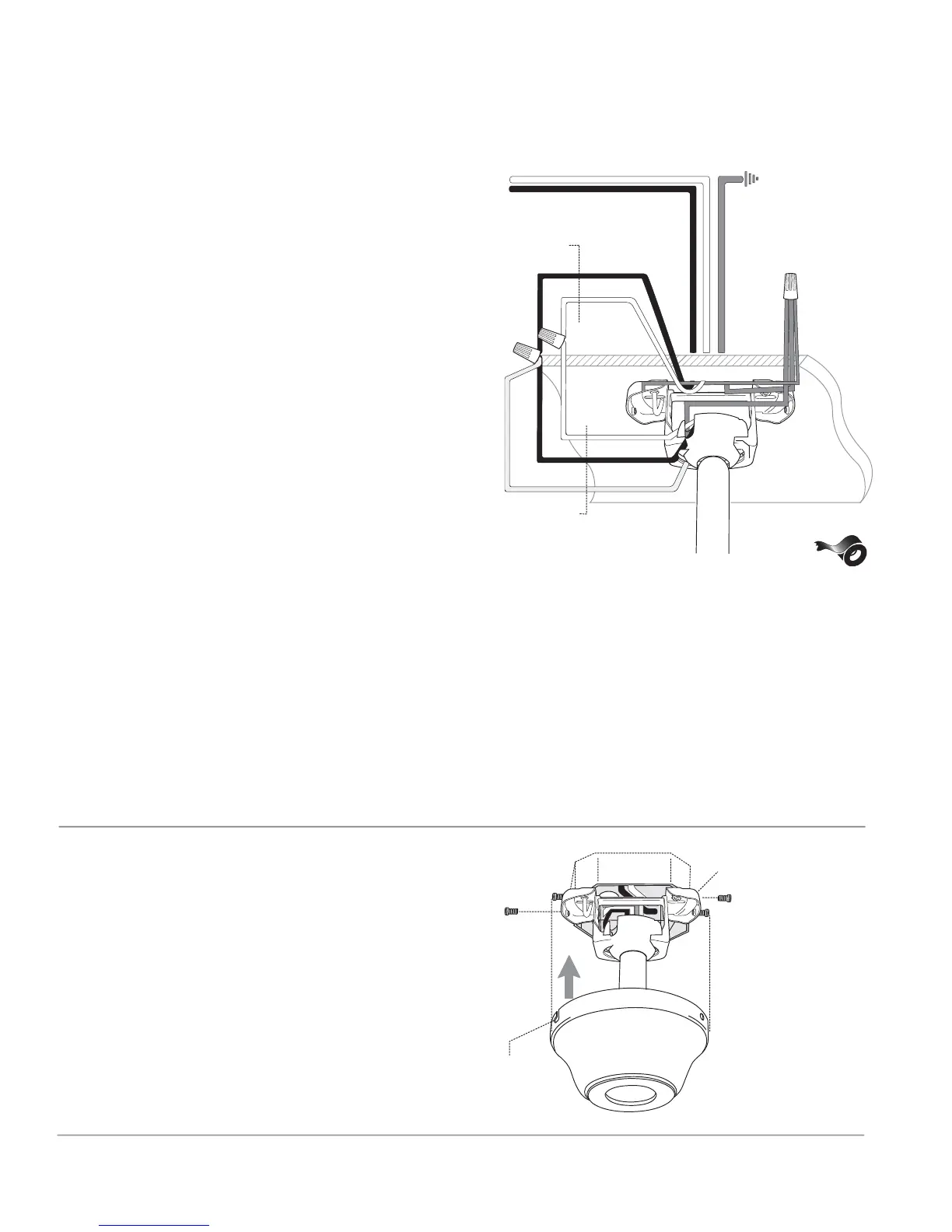

7. Wiring.
page 6
8. Canopy Assembly.
canopy
hanging bracket
black
black
white
white
blue
black supply wire
white supply wire
*
from ceiling
from fan
ground (green
or bare)
ground
(green or bare)
Raise canopy to hanging bracket, aligning
loosened screws in hanging bracket with slotted
holes in canopy. Twist canopy to lock. Insert
screws (with washers) that were previously
removed (on page 3, Section 4) and secure all
screws with Phillips screwdriver.
slotted
hole
Important: Be sure outlet box is properly grounded
or that a ground wire (GREEN or Bare) is present.
Make sure all electrical connections comply with
Local Codes or Ordinances and the National
Electrical Code. If you are unfamiliar with electrical
wiring or if the house/building wires are different
colors than those referred to below, please use a
qualified electrician.
When downrod is secured in place on the
hanging bracket, electrical wiring can be
made as follows:
Connect BLACK and BLUE wire from fan to
BLACK wire from ceiling with wire connector
provided.
Connect WHITE wire from fan to WHITE wire
from ceiling with wire connector provided.
Connect all GROUND (GREEN) wires together
from fan to BARE/GREEN wire from ceiling with
wire connector provided.
If you intend to control the fan light with a
separate light switch connect BLUE wire from fan
to the BLACK supply from the independent
switch.
* Wrap each wire connector separately with
electrical tape as an extra safety measure.
This fan is remote control adaptable (remote control
sold separately).
