switch housing
black wire
blue wire
white wire
white wire
page 8

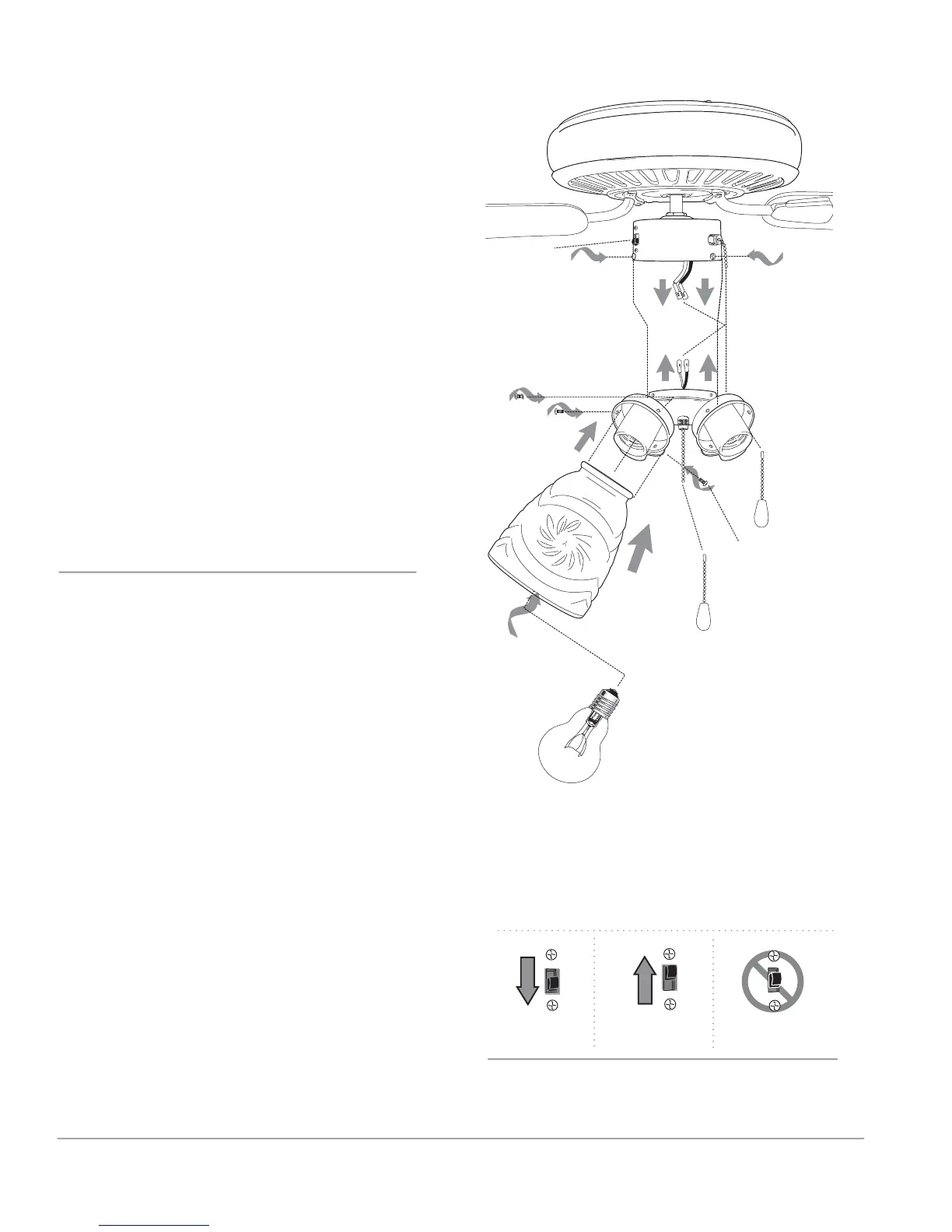

10. Light Kit Assembly (Optional). (cont.)
Connect WHITE wire from switch housing
to WHITE wire from light kit fitter. Connect
BLUE wire from switch housing to BLACK
wire from light kit fitter. Be sure molex
connections snap together completely.
Attach light kit fitter to switch housing with
3 screws that were removed on previous
page. Securely tighten all screws with
Phillips screwdriver.
Secure 4 glass shades using thumb screws
provided in one of the hardware packs. Do
not overtighten thumb screws as glass may
crack or break.
Install 4 candelabra base 40 watt bulbs
(included).
Important: When replacing bulbs, please
allow bulb(s) and glass shade(s) to cool
down before touching them.
motor
housing
glass
shade
bulb
light kit
fitter
It is recommended that you test fan before
finalizing installation. Restore power from circuit
box and light switch (if applicable). Test fan
speeds with the pull chain opposite the reverse
switch. Start at the OFF position (no blade
movement). First pull will set the fan to HI.
Second pull will set the fan to MEDIUM. Third pull
will set the fan to LOW. Fourth pull will again set
the fan to the OFF setting. Test lights with the
pull chain in the middle. If fan and/or lights do
(does) not function, please refer to
"Troubleshooting" section to solve any issues
before contacting Customer Service.
Turn fan completely off before moving the
reverse switch. Set reverse switch to recirculate
air depending on the season:
- DOWN position in summer (diagram 1)
- UP position in winter (diagram 2)
A ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
Important: Reverse switch must be set either
completely UP or completely DOWN for fan to
function. If the reverse switch is set in the middle
position (diagram 3), fan will not operate.
pull chain
extension
thumb
screws
11. Testing Your Fan.
pull chain
extension
thumb
screw
reverse
switch
molex connections
diagram 1 diagram 2 diagram 3
