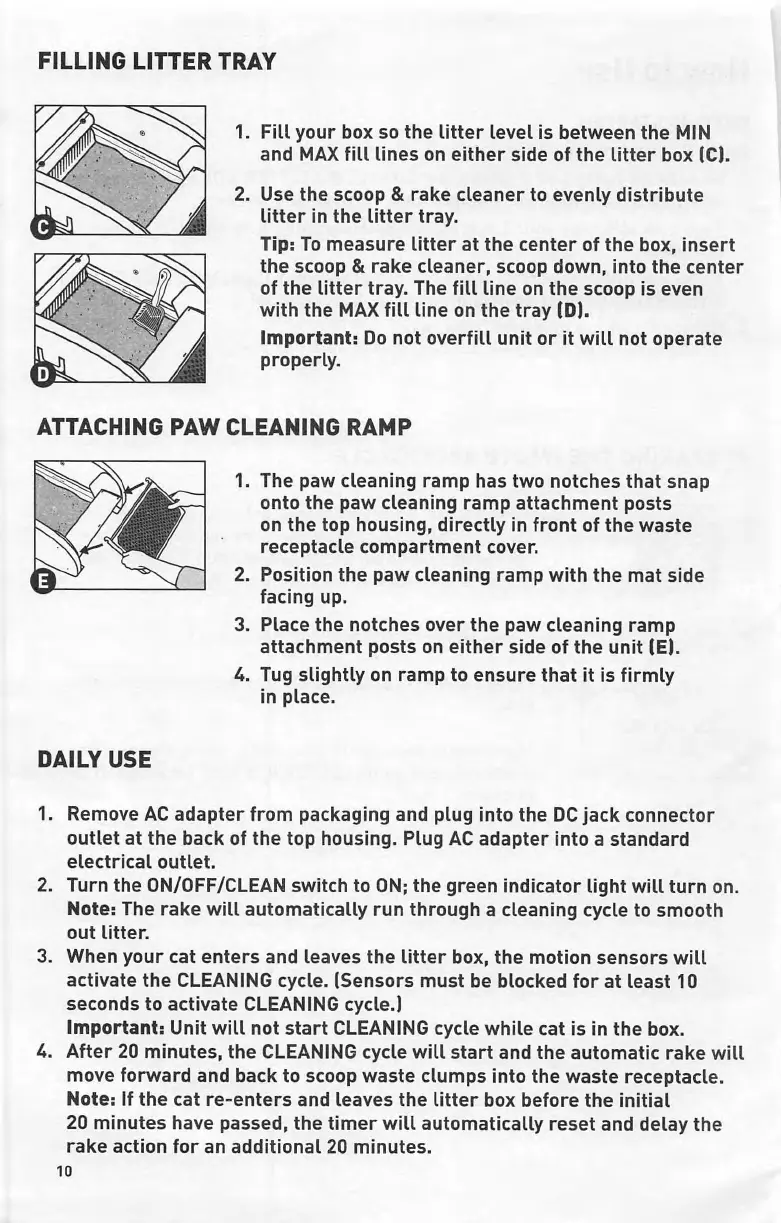

FILLING LITTER TRAY
1. Fill your box so the litter level is between the MIN
and MAX fill lines on either side of the litter box (C).
2. Use the scoop & rake cleaner to evenly distribute
litter in the litter tray.
Tip ： To measure litter at the center of the box, insert
the scoop & rake cleaner, scoop down, into the center
of the litter tray. The fill line on the scoop is even
with the MAX fill line on the tray (D).
Important ： Do not overfill unit or it will not operate
properly.
ATTACHING PAW CLEANING RAMP
1. The paw cleaning ramp has two notches that snap
onto the paw cleaning ramp attachment posts
on the top housing, directly in front of the waste
receptacle compartment cover.
2. Position the paw cleaning ramp with the mat side
facing up.
3. Place the notches over the paw cleaning ramp
attachment posts on either side of the unit (E).
4. Tug slightly on ramp to ensure that it is firmly
in place.
DAILY USE
1. Remove AC adapter from packaging and plug into the DC jack connector
outlet at the back of the top housing. Plug AC adapter into a standard
electrical outlet.
2. Turn the ON/OFF/CLEAN switch to ON ； the green indicator light will turn on.
Note ： The rake will automatically run through a cleaning cycle to smooth
out
litter.
3. When your cat enters and leaves the litter box, the motion sensors will
activate the CLEANING cycle. (Sensors must be blocked for at least 10
seconds to activate CLEANING cycle.)
Important ： Unit will not start CLEANING cycle while cat is in the box.
4. After 20 minutes, the CLEANING cycle will start and the automatic rake will
move forward and back to scoop waste clumps into the waste receptacle.
Note ： If the cat re-enters and leaves the litter box before the initial
20 minutes have passed, the timer will automatically reset and delay the
rake action for an additional 20 minutes.
10
