Loadrite LP930 - LP930 Cable Specification; LP930-BT Cable Specifications

4-10
LOADRITE LP930 | LP930-BT Printer User Manual

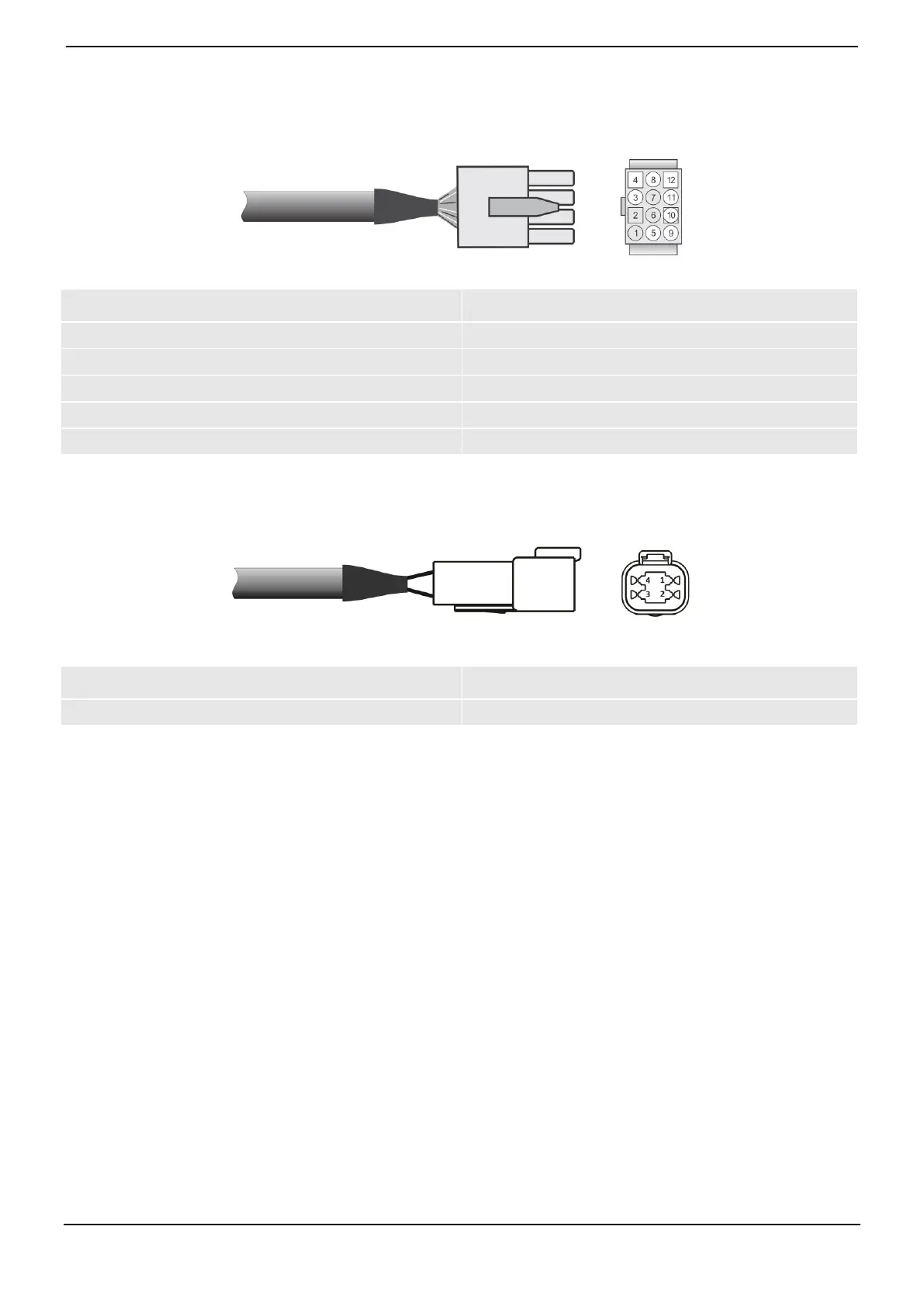

4.1. LP930 CABLE SPECIFICATION
1. GND (black)
2. +12V or +24V (red)
3. N.C.
4. N.C.
5. N.C.
6. Data Input (blue)
7. Printer busy input (green)
8. N.C.
9. N.C.
10. N.C.
11. N.C.
12. N.C.
4.2. LP930-BT CABLE SPECIFICATIONS
1. +12V or +24V (red)
2. N.C.
3. N.C.
4. GND (black)
