Lochinvar 100 Series User's Information Manual

5
EVAPORATOR
(HEAT EXCHANGER)
(WATER TO REFRIGERANT)
THERMOSTATIC
EXPANSION VALVE
(TXV)
ACCUMULATOR
RECEIVER
ELECTRICAL PANEL
HEATED
WATER INLET
HEATED
WATER OUTLET
CONDENSER
(HEAT EXCHANGER)
(REFRIGERANT TO POTABLE WATER)
COMPRESSOR
SOURCE
WATER OUTLET
SOURCE
WATER INLET
Component Refrigeration Circuit
Compressor
Condenser (Heat Exchanger)
Receiver
 ermostatic Expansion Valve (TXV)
Evaporator (Heat Exchanger)
Accumulator
Refrigerant State
Gas
Gas to Liquid
Liquid
Liquid
Liquid to Gas
Gas / Liquid
Component Heated Water Circuit
Heated Water Inlet
Condenser (Heat Exchanger)
Heated Water Outlet

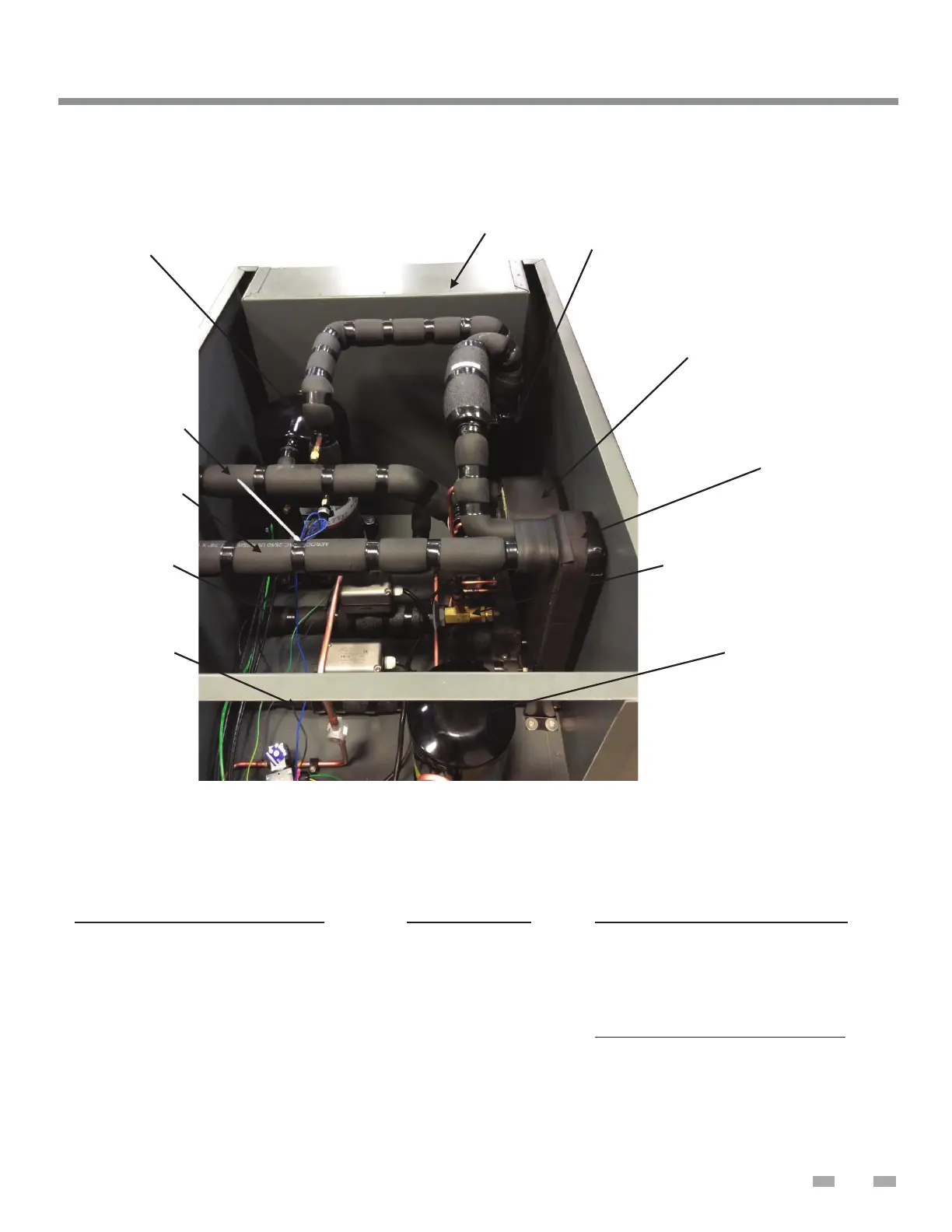

Figure 1
FEATURES & COMPONENTS
PRODUCT ILLUSTRATION
Component Source Water Circuit
Source Water Inlet
Evaporator (Heat Exchanger)
Source Water Outlet
