Installation & Operation Manual
2 Prepare water heater
Remove water heater from wood pallet
1. After removing the outer shipping carton from the water
heater, remove the parts package (packaged parts inside the
jacket of the water heater).
2. To remove the water heater from the pallet:
a. Remove the front door of the water heater.
b. Remove the two lag bolts from the wood pallet
inside the water heater (FIG. 2-1).
c. Detach the water heater from the lag bolts in the rear of
the unit, see FIG. 2-1.
Do not drop the water heater or bump the
jacket on the floor or pallet. Damage to the
water heater can result.
LAG BOLTS
(QTY. 3)
FRON
LAG BOLTS
(QTY. 3)
REAR

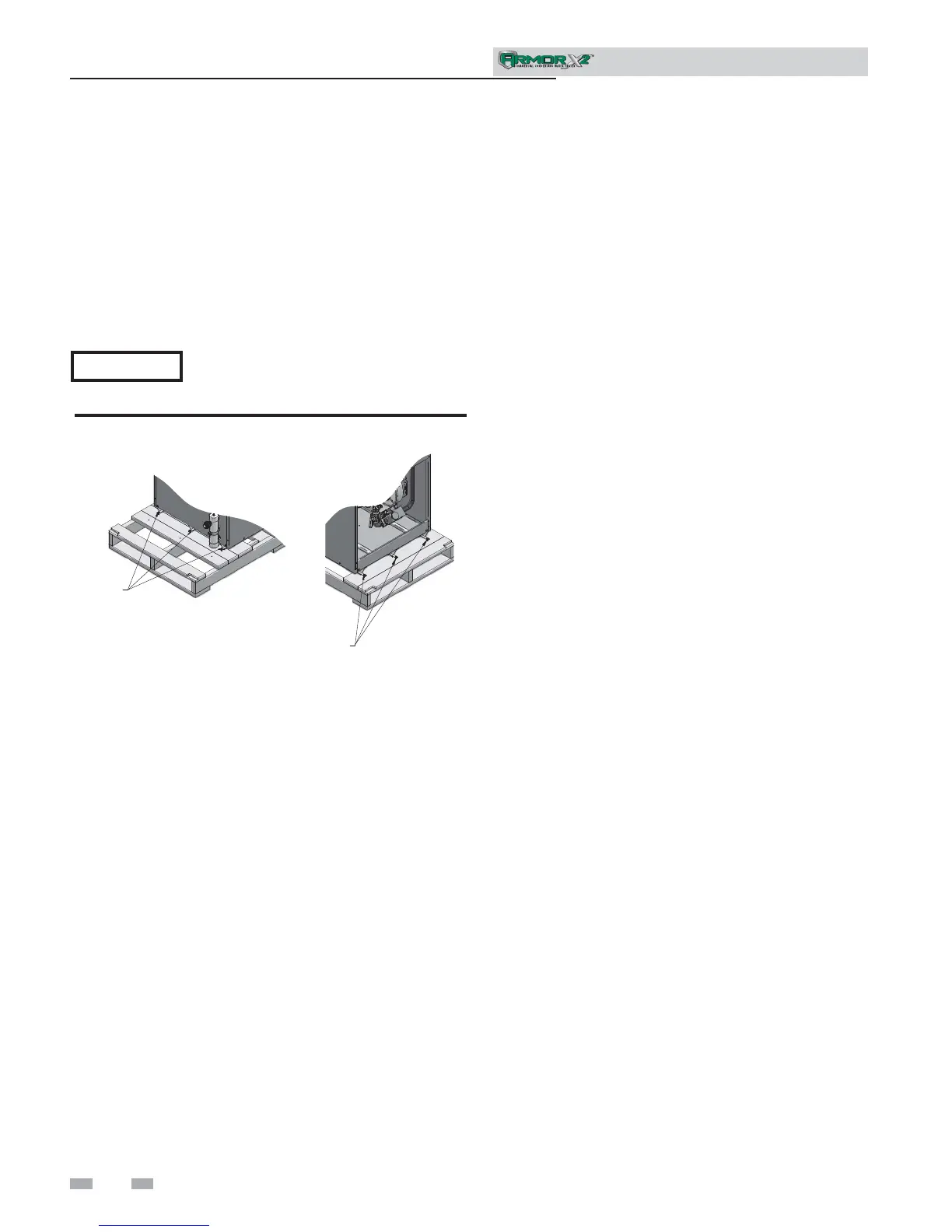

Figure 2-1 Water heater Mounted on Shipping Pallet
NOTICE
Maintain minimum specified clearances for adequate operation.
All installations must allow sufficient space for servicing the
vent connections, water pipe connections, piping and other
auxiliary equipment, as well as the appliance. The clearance
labels on each appliance note the same service and combustible
clearance requirements as shown in this manual.
Multiple appliances may be installed in a modular water heater
installation. Multiple appliances may be installed side by side
with no clearance between adjacent appliances because this
appliance is approved for zero clearance from combustible
surfaces and no service access is required from the sides.
Consult the Venting section of this manual for specific
installation instructions for the appropriate type of venting
system that you will be using.
