Lochinvar SQUIRE SIT030 - Indirect Water Heater Controlled Using Aquastat and Zone Circulator

16
Installation & Operation Manual
5 Wiring
Indirect water heater controlled using Aquastat and zone circulator / valve
1. Install Aquastat to tank. Aquastat control (TST20016) can be ordered from your local Lochinvar distributor.
2. Connect Aquastat to the zone controller for the Indirect Water Heater Zone.
3. Adjust Aquastat to the desired temperature.
INDIRECT TANK
AQUASTAT
CONTROL
TST20016
TEMPERATURE
ADJUSTMENT
WIRE
CONNECTIONS
ZONE CONTROL BOX
OR
ZONE VALVE
OR
ZONE CIRCULATOR

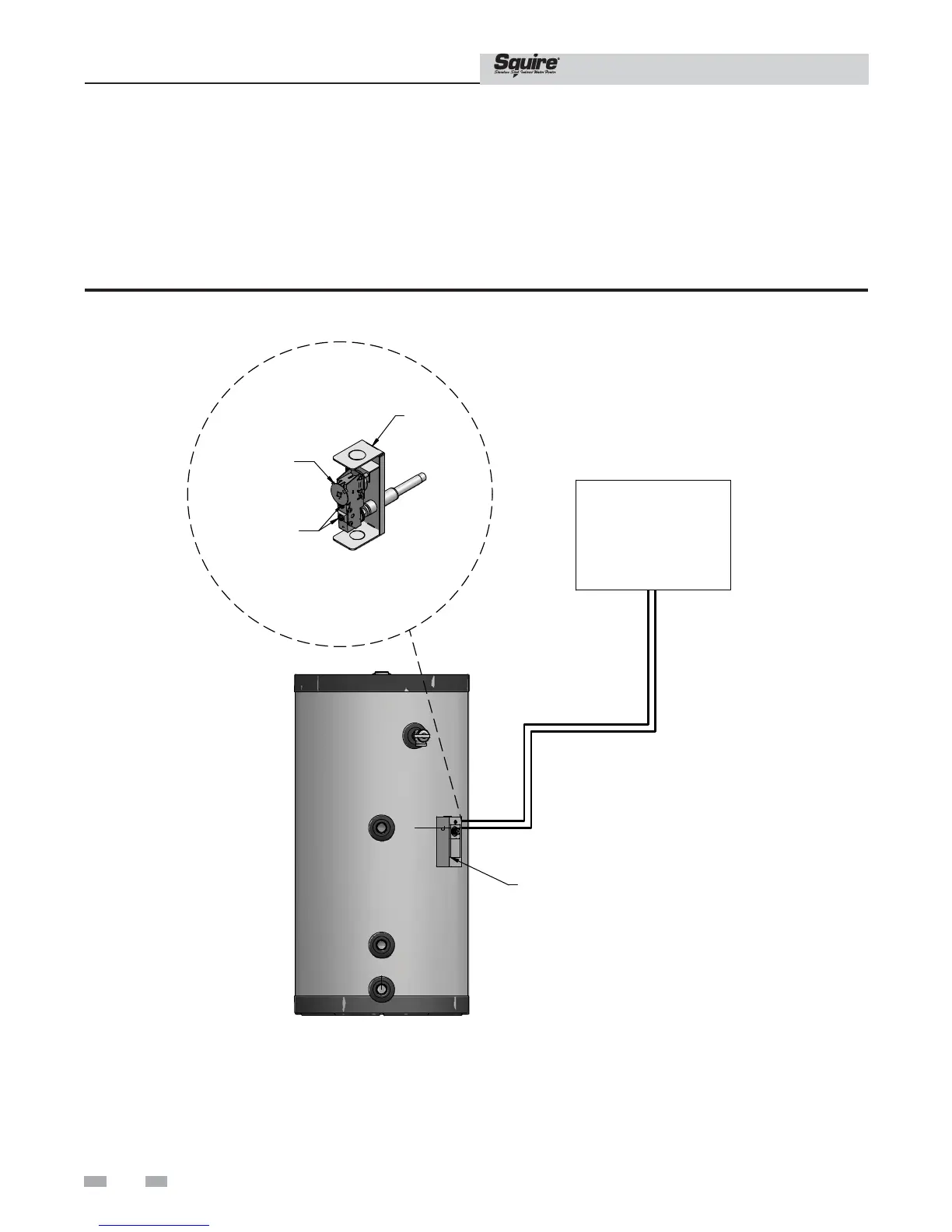

Figure 5-2 Wiring for Zone Control
