Loctite 97115 - 2 Description; Operating Elements and Connections

2. Description
3

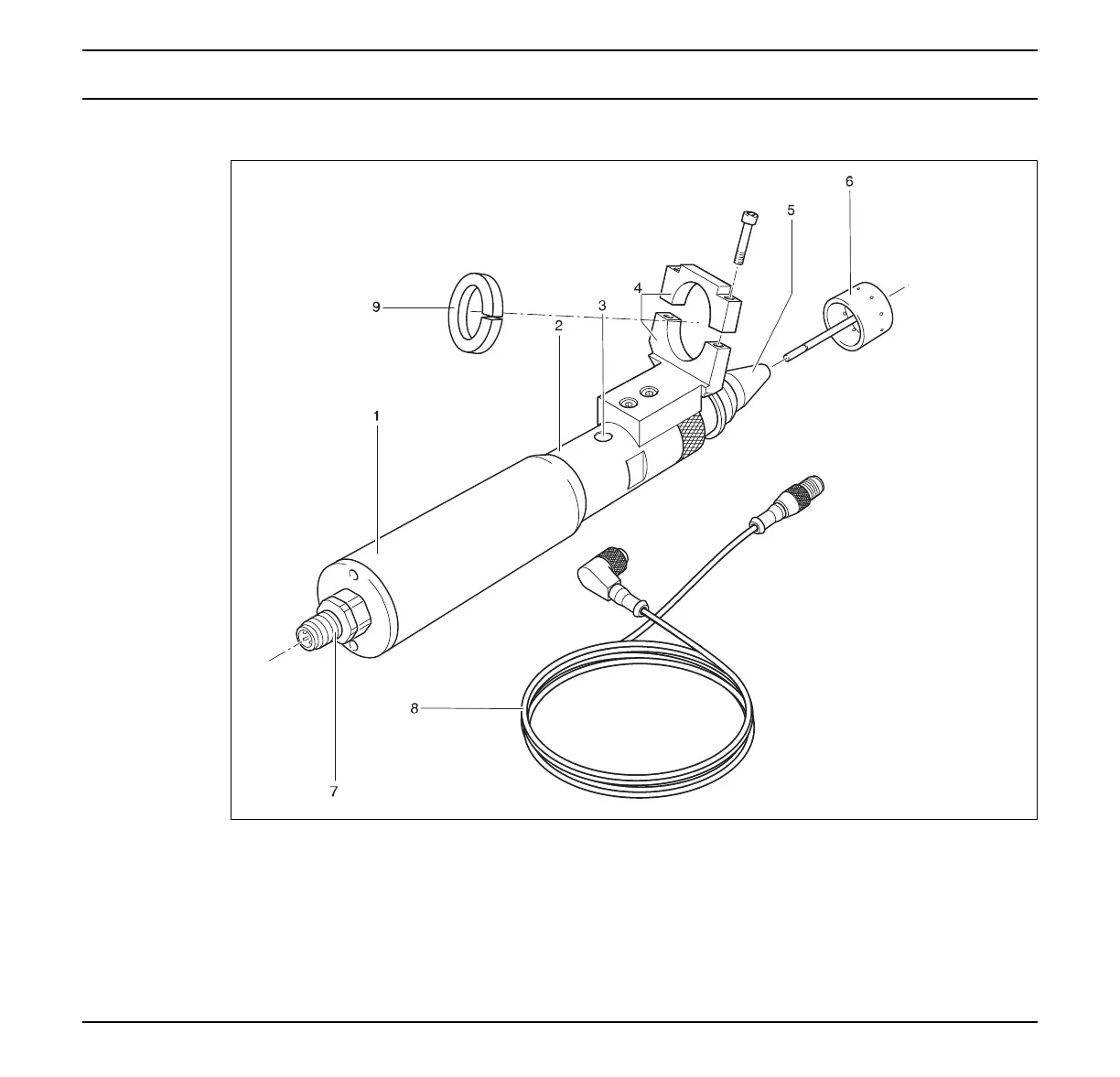

2.1 Operating Elements and Connections
1 Rotorspray motor assembly
2 Rotorspray front end assembly
3 Access hole
For access to the attachment screw
of the shaft coupling.
4 Holder for stationary applicator
5 Drive assembly with shaft
6 Rotor disc with shaft
7 Connector
8 Rotor connection cord
9 Adapter ring for a diaphragm valve
